Libec ALX H Head with Pan Handle

ITEM #: LIB-ALXH MFG #: ALX H

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LIB-ALXH

ALX H - Overview

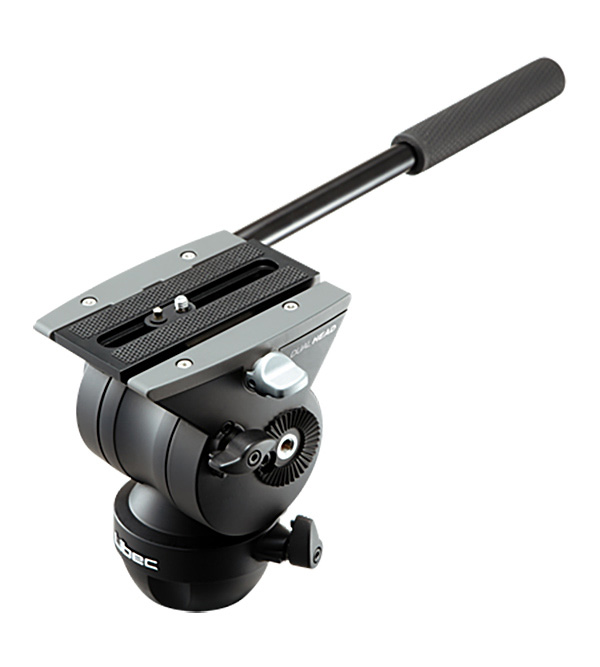

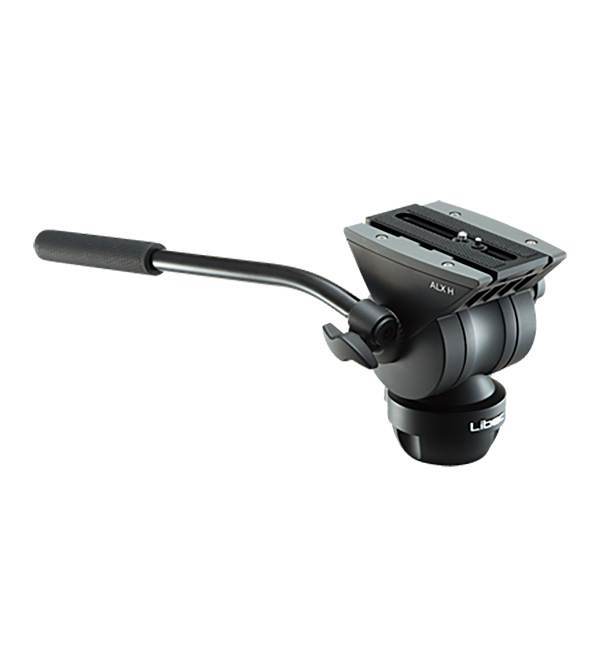

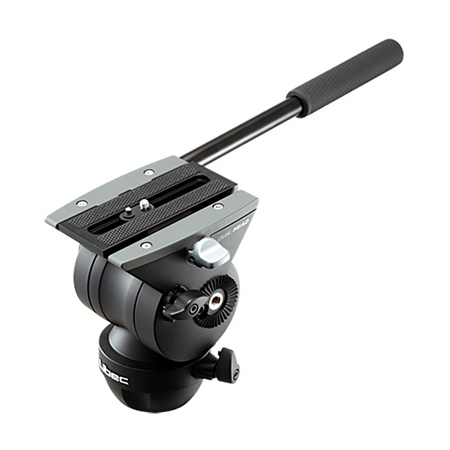

The ALX H is a fluid head supporting up to 4kg / 9 lb. of payload. It has a dual base design consisting of a 75mm ball base and a flat base bottom. The flat base, featuring a 3/8"-16 mounting thread, can be useful for attaching the head to various other flat base gear. The ALX H features a 360° pan angle and +90°/-80° tilt angle. A quick release camera plate is included with a 1/4"-20 mounting screw and video pin. A 3/8"-16 mounting screw is also supplied as a spare, and it installs for safekeeping into a thread under the plate. A pan handle is also included and can be attached to rosette adapters on the left or right side. The ALX H Dual Head is designed for both 75mm ball diameter and flat base tripods, made to fit sliders, skater dollies, and other equipment. The ALX H is conveniently lightweight (1.3kg/2.9lb) and equipped with an LED bubble level for easy leveling in the dark.

The ALX H allows users to have multi style configurations for any shooting environment. Adding an extra ALX S4, ALX S8, or ALX S12 slider allows users to have a pan, tilt, and slide configuration. A Diagonal and vertical configuration can be achieved by having the following: 1x ALX S8 KIT, 1x ALX H. A double platform configuration can also be achieved by having the following: 1x ALX S12, 2x ALXSP, 2x ALX H, 2x ALX T. Moreover, by using this configuration, a still image and a motion picture can be captured at the same time.

  • Features:

    • Dual base head with a 75mm ball base and flat base
    • 4kg / 9 lb. payload
    • 360° pan angle
    • +90°/-80° tilt angle
    • Tilt lock
    • Includes quick release camera plate and dual side rosette-mount pan handle
    • Rosette adapters on both sides
    • 1/4"-20 mounting screw and video pin
    • 3/8"-16 spare mounting screw
    • Fixed counterbalance and drag

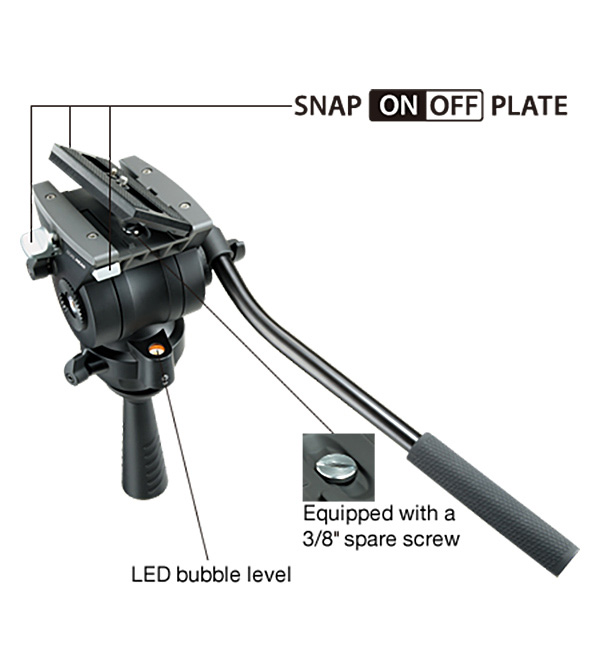

    • Illuminated bubble level

  • Specifications:

    • Payload 9 lb. (4 kg)
    • Camera Plate Sliding plate
    • Sliding Range 1.6" (+/-40 mm)
    • Plate Attachment 1/4" screw with video pin (3/8" spare screw included, installed beneath camera plate)
    • Screw Sliding Range 3" (76 mm)
    • Tilt Angle +90° / -80°
    • Pan Angle 360°
    • Counterbalance Fixed
    • Drag Mode Fixed
    • Tilt Lock Yes

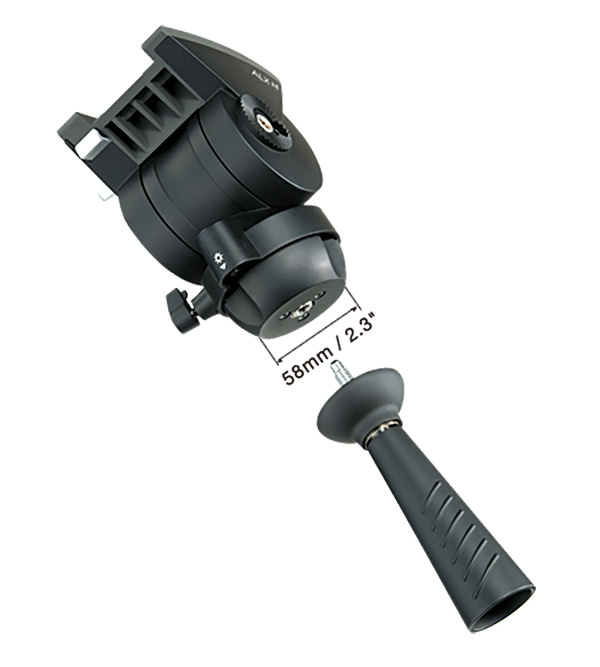

    • Base 75 mm ball (with flat base with 3/8"-16 thread on the bottom of the ball)
    • Leveling Bubble / Illuminated Yes / Yes
    • Weight 2.9 lb. (1.3 kg)

    • Packaging Info
    • Package Weight 5.0 lb.
    • Box Dimensions (LxWxH) 16.0 x 9 x 6"

  • Item Includes:

    • Head with Rosette Mount Pan Handle
    • Dual Base Tripod Mount with 3/8" threads
    • Tripod Mount Fixing Handle
    • Quick Release Camera Plate
    • 1/4"-20 Mounting Screw and Video Pin
    • 3/8"-16 Mounting Spare Screw
    • 3-Year Limited Warranty
