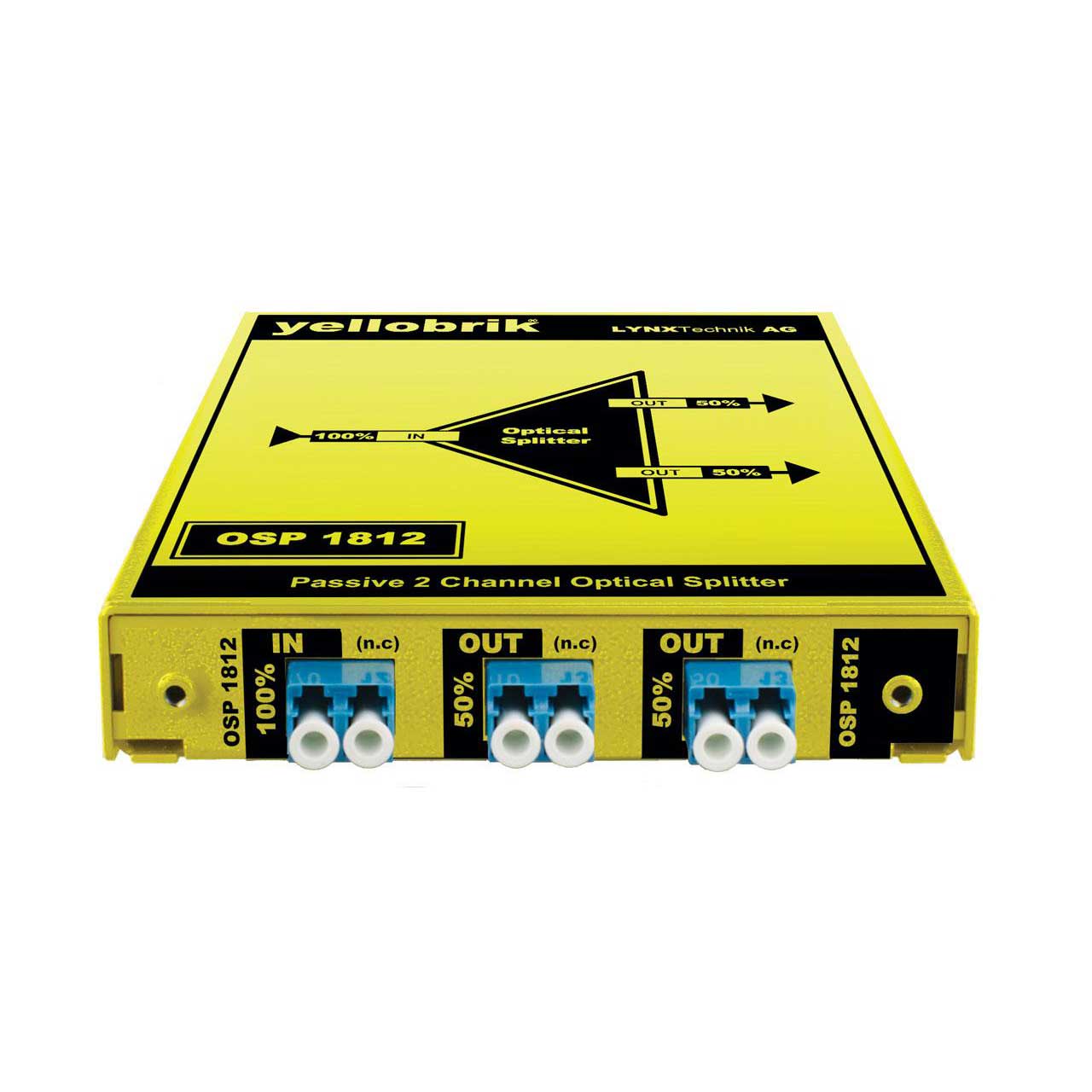

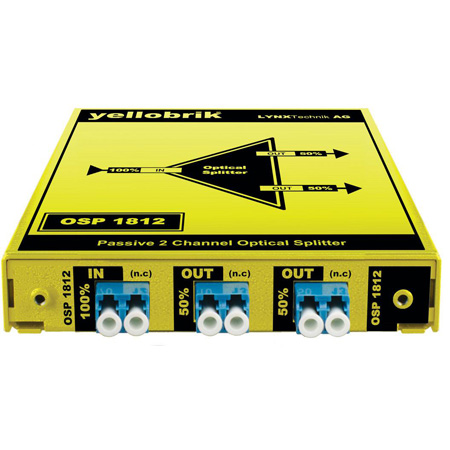

LYNX Technik Yellobrik OSP 1812 2 Channel Fiber Splitter - 50/50

ITEM #: LNX-OSP1812 MFG #: OSP 1812

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


OSP 1812 - Overview

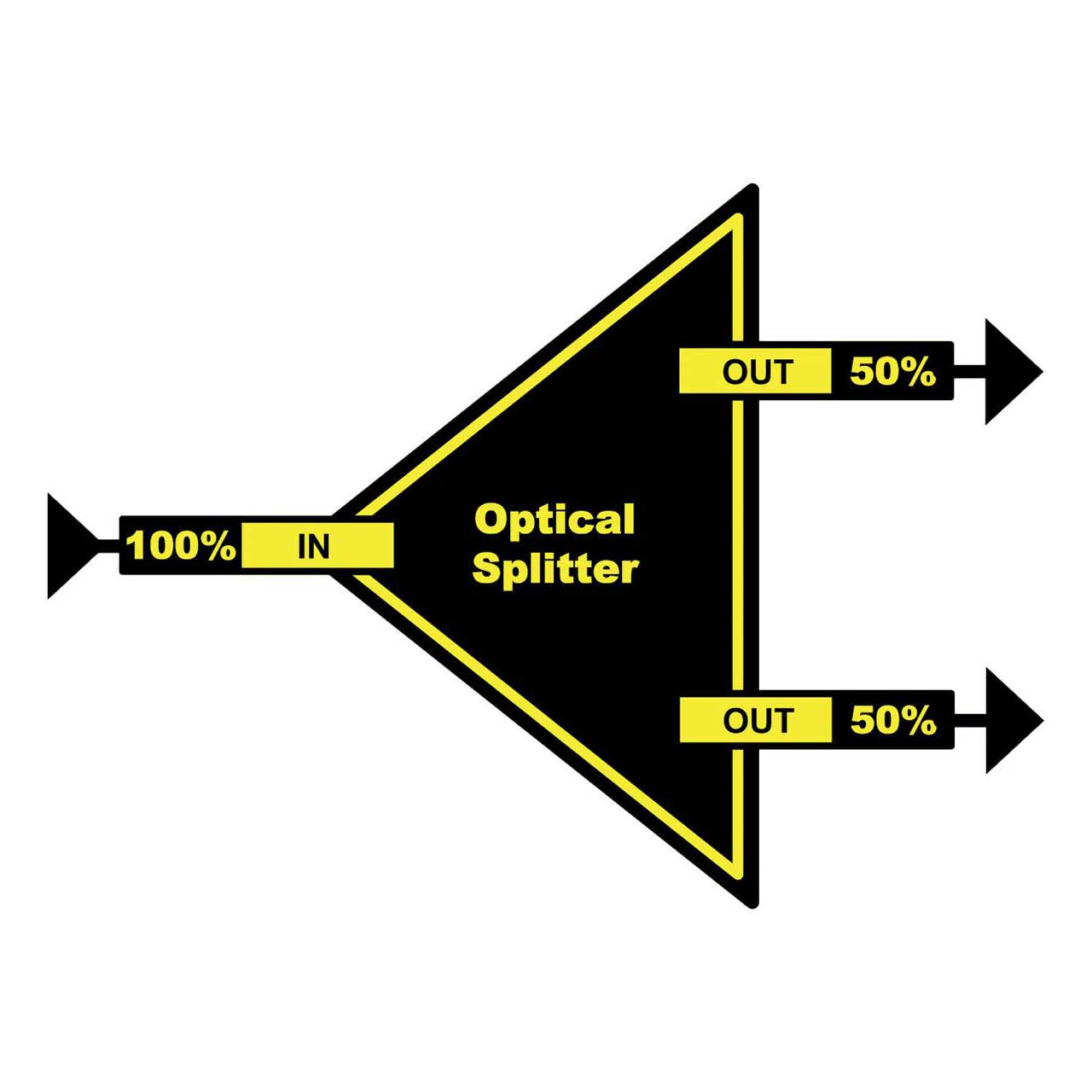

The LYNX OSP 1812 is a compact passive 2 channel optical splitter with a 50/50 (equal) split ratio. Passive operation - no power needed

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, which can accommodate multiple modules. Ideal for system installations.

  • Features:

    • Split a fiber signal into 2 separate paths
    • 50% / 50% split ratio
    • Passive operation (no power required)
    • LC/PC single mode optical connections
    • Optional ½ RU 19" rack frame (RFR 1018)

  • Specifications:

    • OSP 1812 Optical I/O
      1x Fiber input
      2x Fiber outputs
      Split Ratio: 50% / 50%
    • Optical Connections
    • LC/PC (singlemode)
    • Operating wavelength 1260nm - 1650nm
    • Performance
    • Insertion loss (including connector and split loss)
    • OSP 1812 = 4.0 dB; OSP 1812M = 1.0 dB (90% output); 11.0dB (10% output)
    • OSP 1814 = 7.6dB
    • Polarization dependant loss: max 0.3dB
    • Return loss: > 55dB
    • Directivity: > 55dB
    • Max input power: 500mW
    • Power None required (passive operation)
    • Dimensions (LxWxH)
      With Connectors: 3.93 x 4.33 x 0.75" (100 x 110 x 19mm)
      Without Connectors: 3.93 x 5.12 x 0.75" (100 x 130 x 19mm)
    • Weight: 0.26Lbs (120g)
    • Ambient Temperature: -41° to 185°F (-40° to 70°C)
    • Humidity: 90% (non-condensing)

  • Item Includes:

    • 1x OSP 1812 Module

  • GTIN:

    4250479359796
