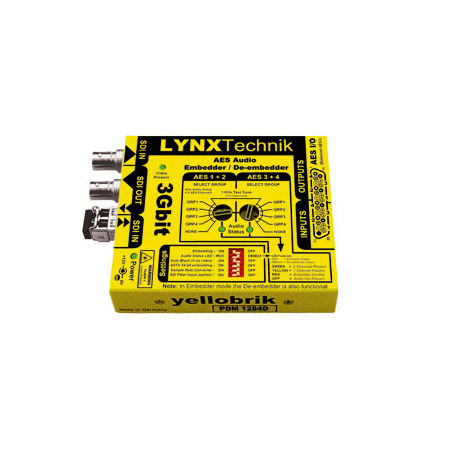

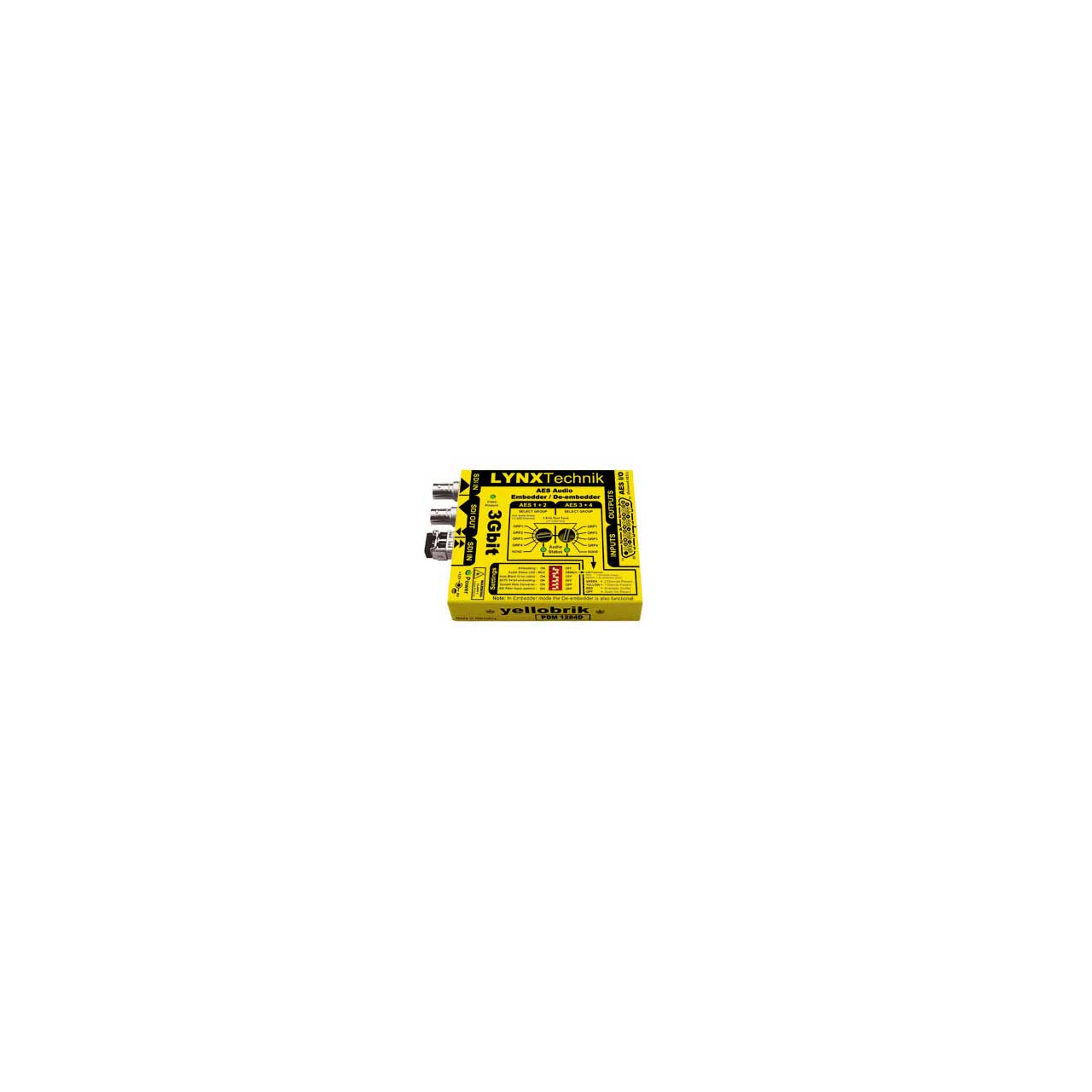

The PDM 1284 D is a versatile AES audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. It supports balanced AES3 audio I/O using a 25 pin SubD connector.
Select audio groups usng the rotary switches and embed and de-embed additional audio groups by cascading two modules together. Simultaneous embedding and de-embedding means the module will de-embed and output the audio from the selected audio group before overwriting.
An optional fiber I/O adds fiber transceiver functionality for embedding and de-embedding directly from the fiber I/O. When the fiber input is used both fiber and electrical SDI outputs are provided.
The PDM 1284 D automatically detects the audio format and deactivates the sample rate converters to preserve encoded bit streams such as DolbyE. (Sample rate converters can be permanently switched off using the dip switch).
The selectable "auto black" mode uses a black video frame (in the last detected video standard) if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the application is only transporting multi-channel audio between locations either electrically or over fiber.
The selectable 1 kHz test tone generator is integrated for audio testing purposes. The module includes an LED for video present indication as well as two multi-color audio status LEDs.
