LYNX Technik PDM 1383 Yellobrik Analog Audio Embedder / De-embedder
  • LYNX Technik PDM 1383 Yellobrik Analog Audio Embedder / De-embedder
  • LYNX Technik PDM 1383 Yellobrik Analog Audio Embedder / De-embedder

Questions? Ask a Markertek Expert:
800-522-2025 Email

LYNX Technik PDM 1383 Yellobrik Analog Audio Embedder / De-embedder

Manufacturer: LYNX Technik Inc

Item #: LNX-PDM-1383   •   MFG #: PDM-1383



List Price:$932.00
Our Price:$885.40

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!

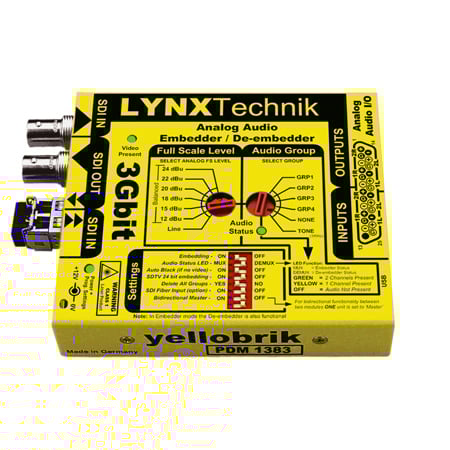

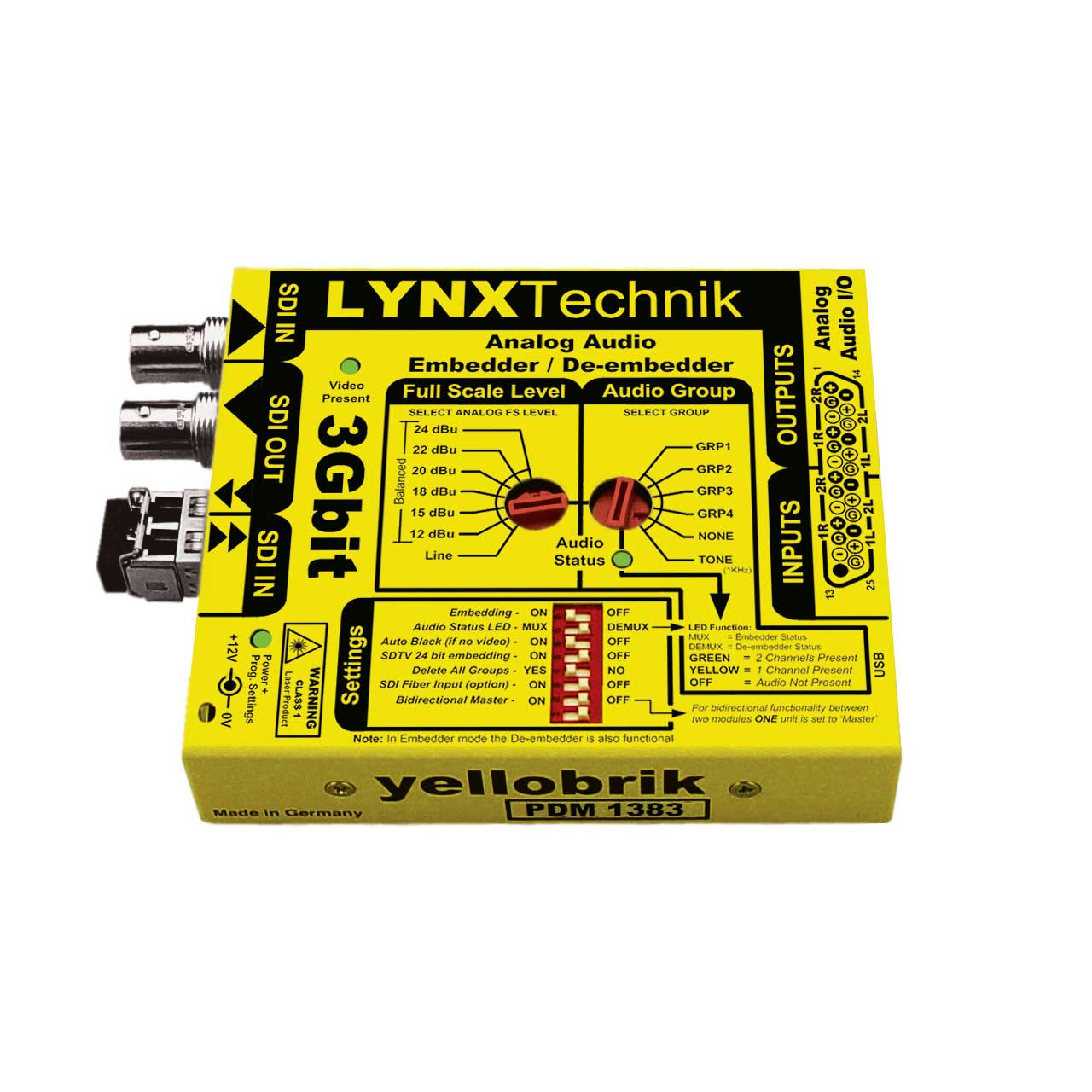

The PDM 1383 is a versatile analog audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. Analog audio I/O is available on a 25 pin SubD connector.

Select the audio group and analog full scale level (or line level) using the rotary switches. Additional channels of audio can be embedded and de-embedded by cascading modules together. Simultaneous embedding and de-embedding means the module can de-embed and output the audio from the selected audio group before overwriting with the new audio input.

Optional fiber I/O SFP modules adds fi ber connectivity for embedding and deembedding directly from the fi ber I/O.

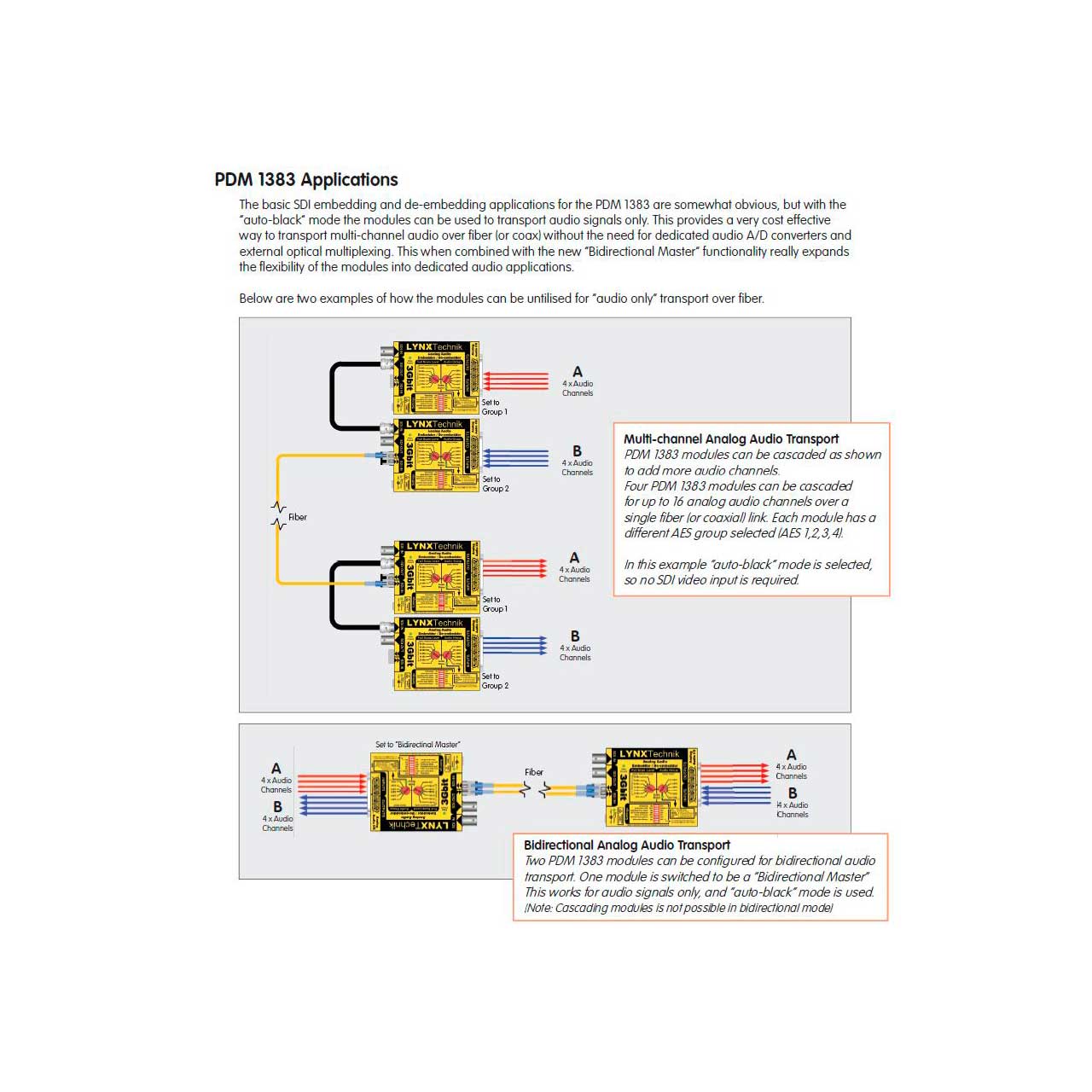

The selectable "auto black" mode uses a black video frame (in the last detected video standard) if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the application is only transporting audio between locations either electrically or over fiber. The module also includes a special mode of operation which allows the bidirectional transport of audio (only) using two modules.

The selectable 1 kHz test tone generator is integrated for audio testing purposes. The module includes an LED for video present indication as well as two multi color audio status LEDs.


  • Features

    • Simultaneous embedding and de-embedding
    • SDI video formats up to 3Gbit (1080p60)
    • 4 x Analog audio inputs and outputs
    • Selectable full scale audio level or line level I/O
    • Selectable audio groups
    • Optional Fiber I/O
    • Bidirectional audio transport over fi ber
    • Integrated test tone generator
    • Auto black if no video present
    • Selectable SDTV 24 bit mode
    • Video present and audio status LEDs

  • Specifications

    • SDI Input: 1 x SDI video on 75 Ohm BNC connector, SMPTE 424M, SMPTE 292M, SMPTE 259M, Multi-standard operation from 270Mbit/s to 3Gbit/s SDTV (525/625), 720p and 1080p (23.98/24/25/29.97/30/50/59.94/60 Hz), 1080psf(23.98/24/25/29.97/30 Hz), 1080i (50/59.94/60 Hz),
    • Return Loss: > 15dB to 1.5Gbit/s and > 10dB up to 3Gbit/s,
    • Automatic cable EQ (Belden 1694A cable)
    • 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s.
      Optical I/O(Option): 1 x fiber optic input and/or output LC singlemode fiber connection, SMPTE 297M - 2006.
      SDI Output: 1 x SDI video on 75 Ohm BNC connector,
    • SMPTE 424M, SMPTE 292M, SMPTE 259M,
    • Multi-standard operation from 270Mbit/s to 3Gbit/s.
      Audio Inputs: 4 x analog audio inputs on 25 pin SubD Connector (10K Ohm), Full scale analog audio level (or line level) selectable via rotary switch, AES group selection provided via rotary switch.
      Audio Outputs: 4 x analog audio outputs on 25 pin SubD Connector (150 Ohm), Full scale analog audio level (or line level) selectable via rotary switch, AES group selection provided via rotary switch.
      Power: +12VDC power supply (included).
      Size: 105mm x 95mm x 22mm (4.13" x 3.74" x 0.86").

  • Item Includes

    • Module, power supply, SubD screw terminal adapter PCB
