ESE LX-192U Master Clock
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

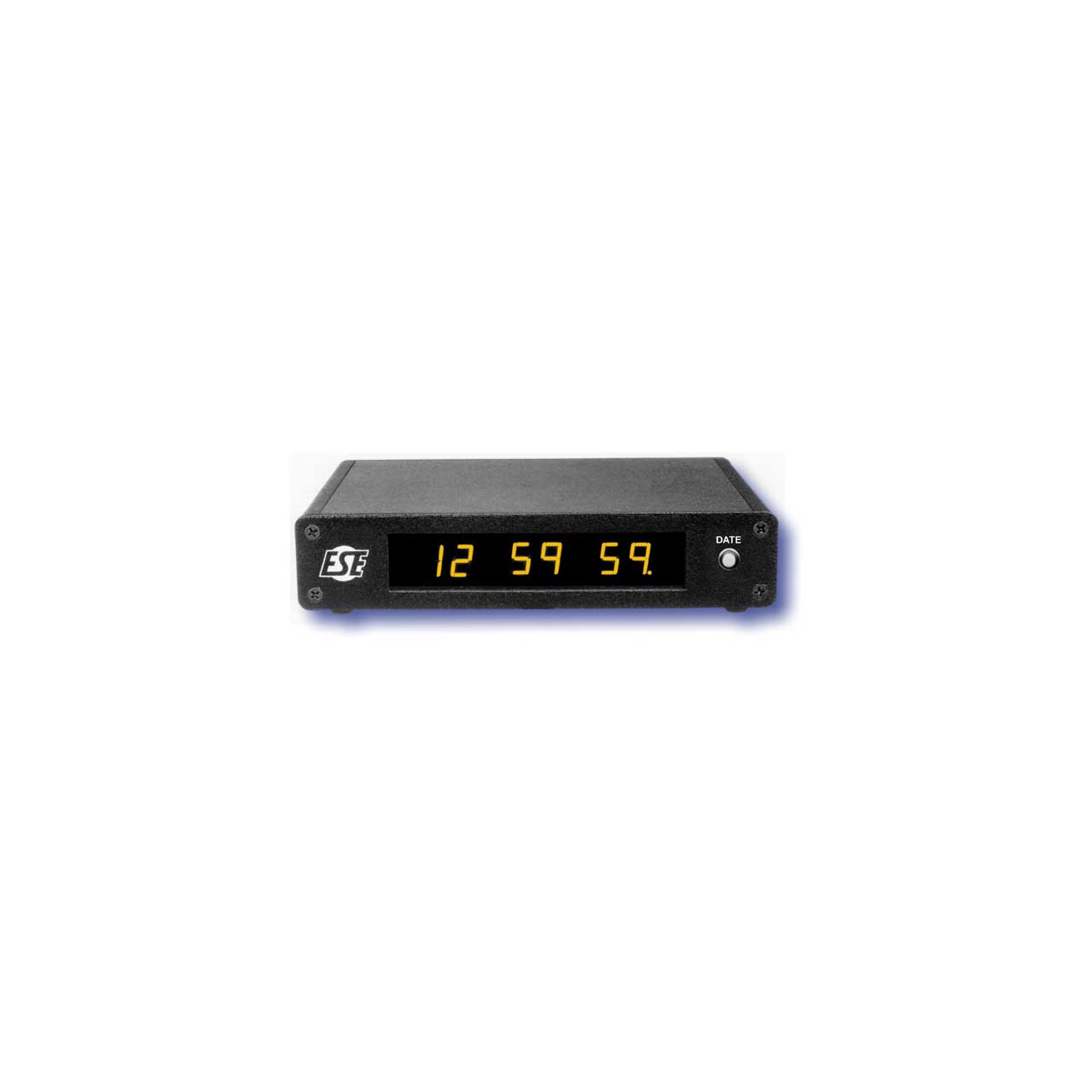

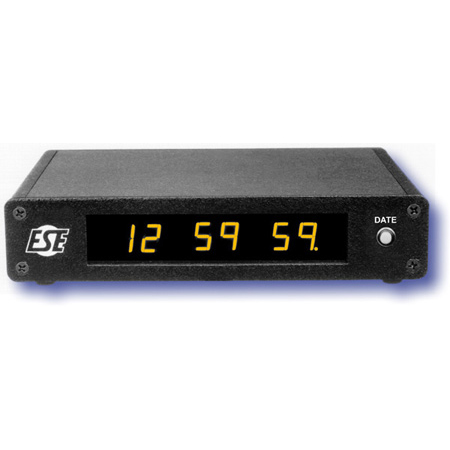

    ESE LX-192U Master Clock

    Manufacturer: ESE

    Item #: LX-192U   •   MFG #: LX-192U







    The LX-192U/194U is a rugged, low-cost Master Clock for applications not requiring GPS or temperature controlled stability. Like the ES-192U/194U, the LX-192U/194U uses the AC line-frequency as a time reference or, optionally, a quartz crystal timebase may be specified. The LX-192U/194U features our High-Tech "LX" enclosure, of extruded and machined aluminum with a black baked-on "powdercoat" finish. Time & Date data are output to Slave displays via the TC90T Time Code output. The LX 194U is the same as the 192U, but features 6-Digit 24 Hour Instead of the 6-digit 12 Hour.

    • Features

      • 56" Yellow LED Display
      • 12 hour (LX-192U) or 24 hour (LX-194U) display
      • Date Function
      • ESE time code output (TC90T)
      • 1 PPS (pulse-per-second) output
      • External Time Sync input (corrects error up to 1/2 second)
      • Optional relay-contact closure output on the Hour or Hour & Half Hour
      • Optional 1.75" Rackmount enclosure (ES-192U/194U with option "P")
      • Optional 4-hour Battery Backup (ES-192U/194U with option "P" only)
      • 220-240 VAC (110-120 VAC is standard) & UL options available
      • Various Options available: C, D, HR, J, RS, UL, W(1)
        Options List
      • (10nS) 10nS Accuracy: The accuracy of the unit is improved to 10nS.
      • List: $300
      • (Black)Black Anodized Front panel-option availabel when standard panel is clear anodized
      • List: $15
      • (C) Crystal Time Base (2-3 seconds per week accuracy)
      • List: $60
      • (ESE) ESE Serial Time Code Output
      • List: $30
      • (EXT{1,5 or10}) External Input of either 1 MHz, 5 MHz, or 10 MHz (for use with "in-house" Standard)
      • List: $70
      • (IRIG) IRIG-B or IRIG-E Time Code may be specified (not available with SMPTE/EBU)
      • List: $300
      • (NPR) NPR (National Public Radio) Time Code INput (excluxive) with ESE Time Code Output
      • List: $135
      • NTP NTP Client Display will synchronize exclusively with an NTP server
      • List: $120
      • (6-Digit) Six-Digit Display: A 6-Digit (Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
      • List: $200
      • (9-Digit) Nine-Digit Display: A 9-Digit (Days, Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
      • List: $300
      • (Ant) GPS Antenna: High Performance GPS Antenna for harsh RF Environments.
      • List: $195
      • (B) Parallel BCD Output: CMOS compatible, 5-volt logic in parallel four-line format. Specify the ES-169B.
      • List: $300
      • BBU Battery Back-Up: An internal Gel-Cell battery is provided capable of maintaining the unit's microprocessor for up to a 4-hour power outage.
      • List: $130
      • (TZ) Time Zone Offset via internal DIP Switch
      • List: $30
      • (Q) 9" x 3 1/2" Front Panel for Console Mount Applications (Case is 8" Deep)
      • List: $80
      • (RS) RS232C ASCII Computer Interface (RS422A available on a custom basis)
      • List: $50
      • (UL) "UL" Approve Wall Mount Power Supply
      • List: $60
      • (V) DC Power (12 VDC)
      • List: $30
      • (W) 3-Wire Line Cord (2-Wire Line Cord is Standard on many units)
      • List: $16
      • (Wall) Wall Mount Enclosure replaces standard enclosure
      • List: $80
      • (DC) DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
      • List: $250
      • (SMPTE/EBU)SMPTE or EBU Time Code outputs: SMPTE or EBU Time Code outputs may be specified (not available with IRIG).
      • List: $300
      • (HR) Relay Closure: Option "HR" provides a user programmable relay contact closure. The standard contact closure occurs on the Hour and Half Hour. If contact closures at other times are desired, the user can program up to four relay closures using the PC Software, which can be downloaded from the ESE web site. The reed relay is rated at 10 watts maximum resistive load (500 mA switching current) and is intended for control applications only. The relay contacts are accessible on the DB-9 connector.
      • List: $50
      • (J) 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
      • List: $30
      • (K) provi
