Marshall VS-HAI HDMI Audio Inserter/Embedder (Inject Analog Audio into HDMI)

VS-HAI - Overview

• Features:

  • Compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0
  • Supports HDMI Sample Rates up to 192 kHz
  • Supports Optical Sample Rate up to 48 kHz
  • Supports TMDS clock frequency rate 225MHz
  • Supports high-bit-rate (HBR) audio
  • HDMI cable distance test with 1080p 8/12-bit resolution, the input & output can run up to 10 meters
  • Low power consumption
  • Supports 3D signal


• Specifications:

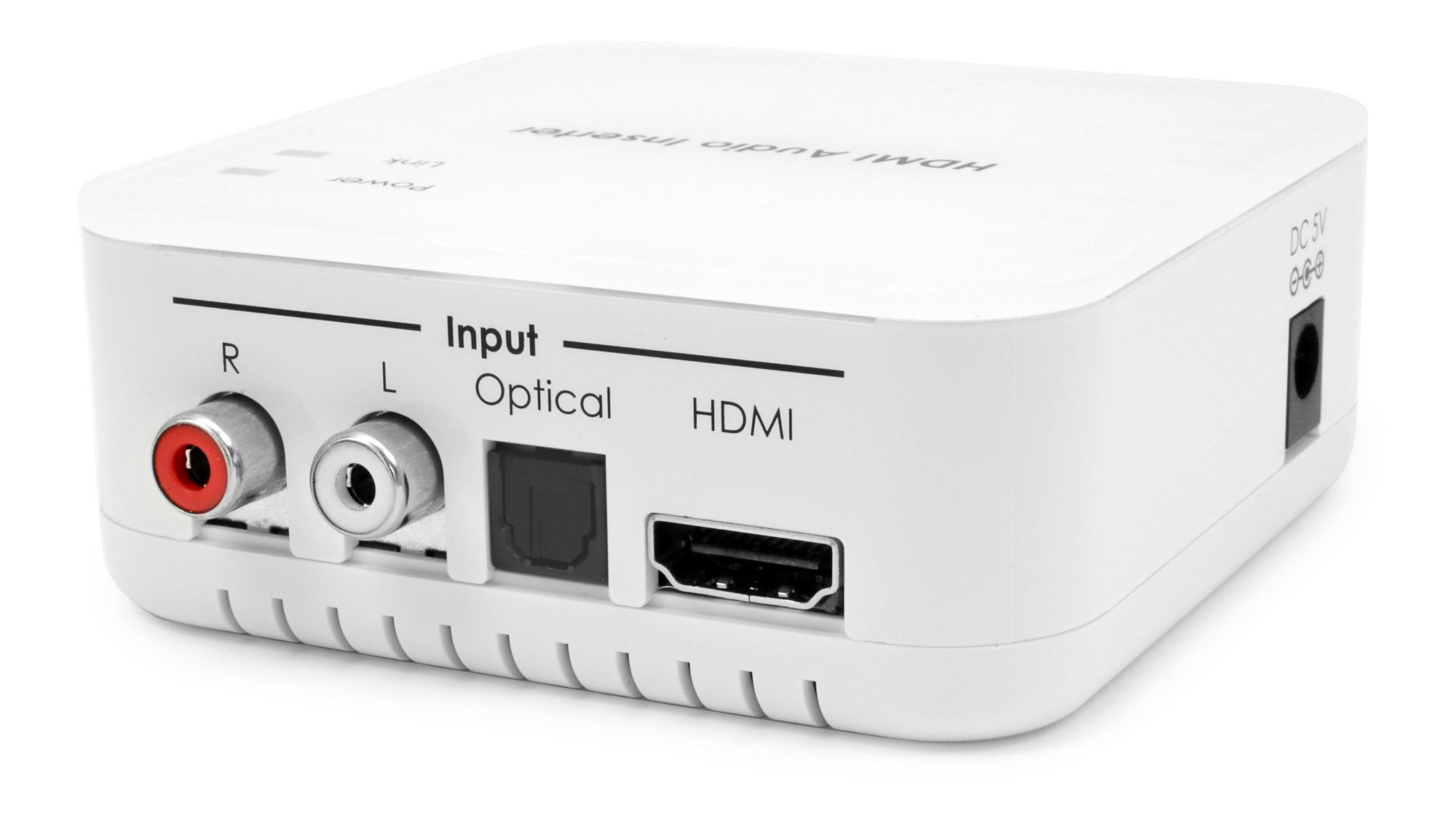

  • Input Port: 1 x HDMI, 1 x Optical, 1 x R/L
  • HDMI Sample Frequency: Up to 192 kHz
  • Optical Sample Frequency: Up to 48 kHz

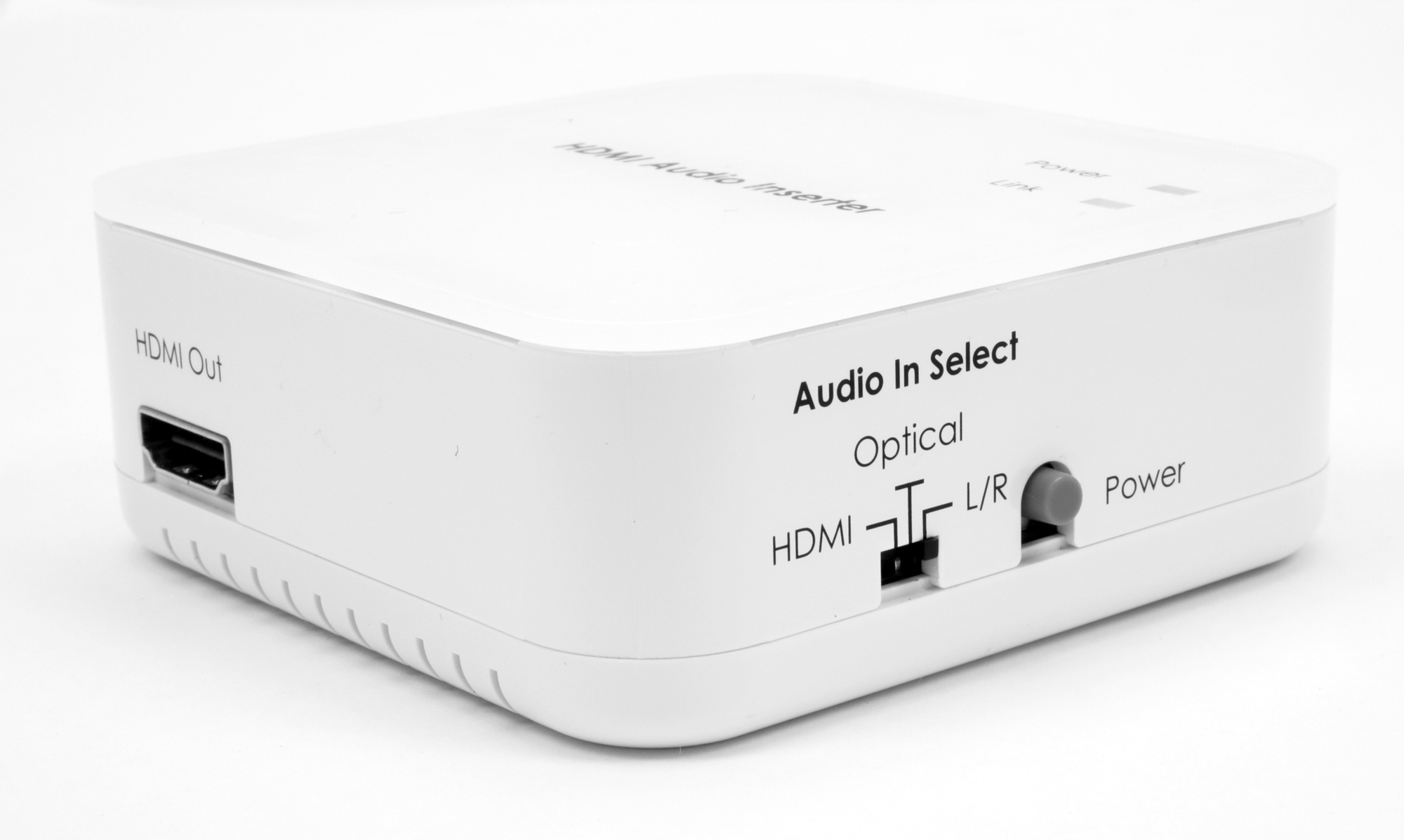

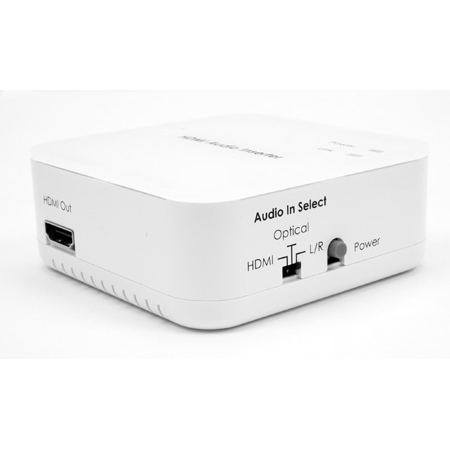

  • Output Port: 1 x HDMI
  • HDMI Cable I/O Distance: 10M 1080p/12-bit, 15M 1080p/12-bit
  • HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD
  • Optical Audio Format: PCM2, Dolby Digital, DTS Digital audio 5.1
  • Power Supply: 5V/1A linear power adaptor (US/EU Standards, CE/FCC/UL Certified) or 5V/1.2A switching power adaptor (with universal plug, CE/FCC/UL certified)
  • ESD Protection: Human body model: ± 8kV (air-gap discharge)
  • ± 6kV (contact discharge)
  • Dimensions: 3.57" (W) x 3.38" (D) x 1.34 (H)
  • Weight: 0.2 lbs
  • Chassis Material: Plastic
  • Silkscreen Color: White
  • Operating Temperature: 0°C~40°C / 32°F~104°F
  • Storage Temperature: -20°C~60°C / -4°F~140°F
  • Power Consumption: 2.7W
  • Relative Humidity: 20 ~ 90% RH (non-condensing)


• Item Includes:

  • HDMI Repeater with Audio In
  • 5V / 1A Power Adaptor
  • Operation Manual


• Warranty:

  • 1 Year
