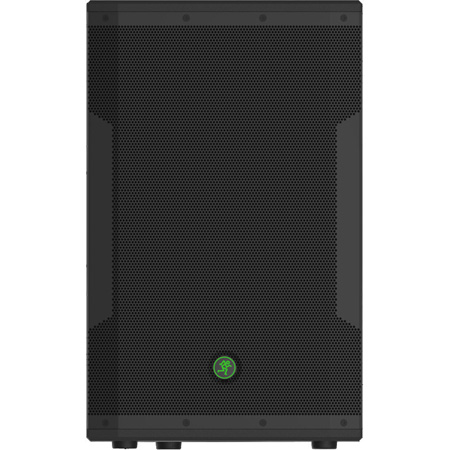

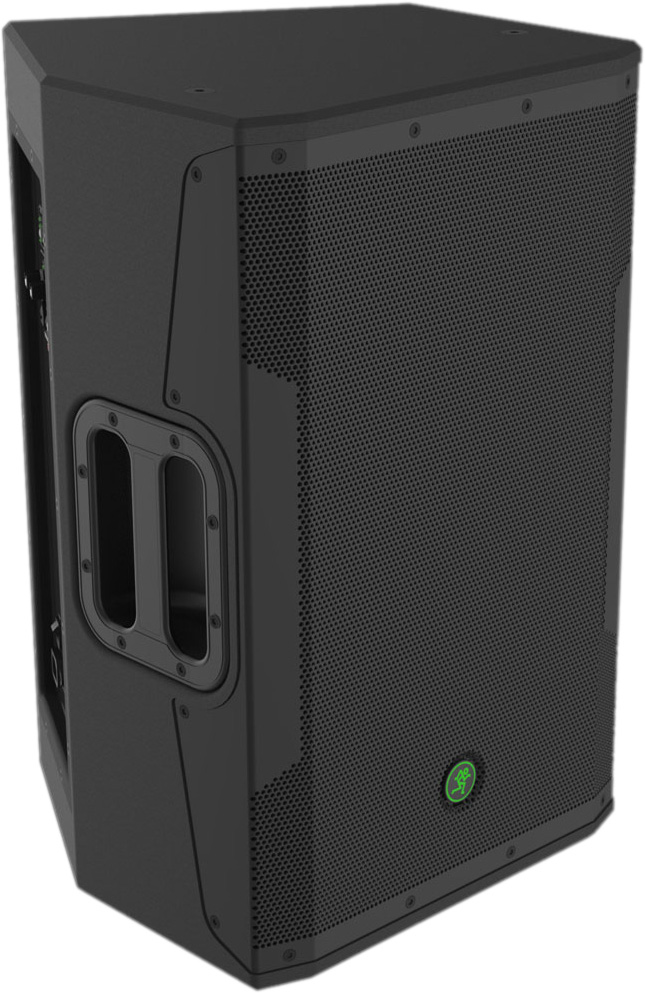

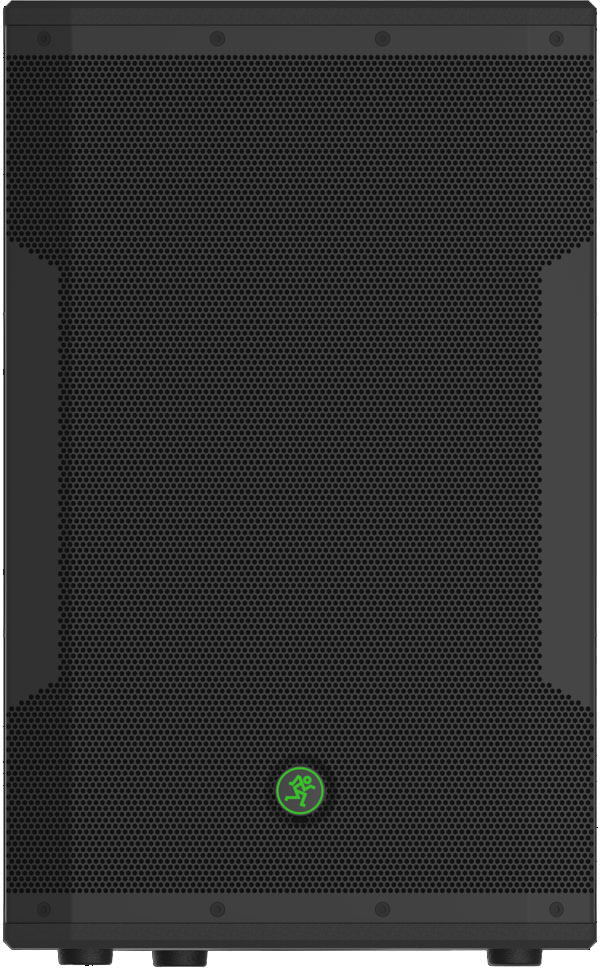

Mackie SRM550 1600W 12 Inch High-Definition Powered Loudspeaker

SRM550 - Overview

• Features:

  • 1600W system power paired with custom transducers deliver gig-level volumes with room to spare
  • 12" high-output LF driver/1.4" titanium dome compression driver
  • "Built-Like-A-Tank" all wood, internally braced cabinet delivers professional-grade road-worthiness
  • High-Definition Audio Processing for professional sound with unmatched clarity
  • Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, Monitor, Soloist, Fill and SPeech)
  • Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer

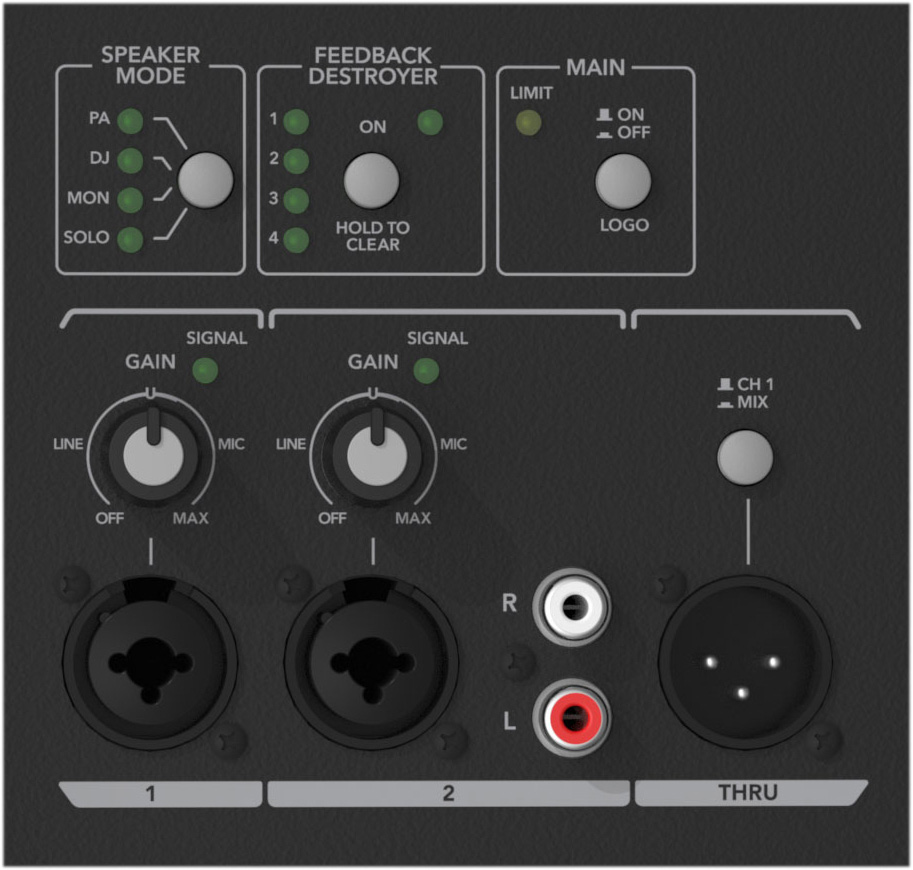

  • Integrated 2-channel mixer featuring dual Wide-Z™ inputs
  • Handles anything from mics to guitars to mixers with a single twist of the gain knob
  • Includes stereo RCA inputs for easy connection to a music source
  • Smart Protect™ DSP kicks in to protect your investment when things get pushed a little too hard

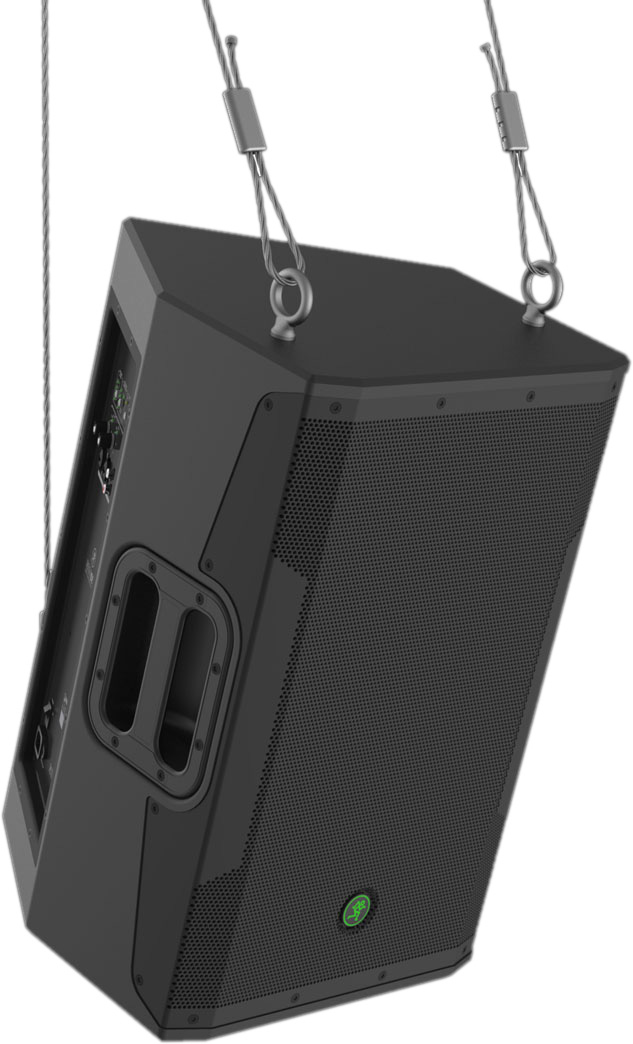

  • Flyable via standard M10 eyebolts
  • Monitor-specific 60° angle and voicing mode perfect for cutting through on stage

  • **NOTE** Floor mount, pole mount or fly via integrated M10 mounting points (using M10 x 1.5 x 37mm forged shoulder eyebolts).


• Specifications:

  • Acoustic Performance
  • Frequency Response (-3dB): 55Hz - 17kHz
  • Frequency Response (-10dB): 49Hz - 20kHz
  • Max peak SPL: 132dB
  • Crossover Point: 3kHz
  • Dispersion (HxV): 90° x 50°

    High-Frequency Section
  • Voice Coil Diameter: 1"
  • Horn Entry Diameter: 1.4"
  • Diaphragm Material: Titanium
  • Magnet Material: Ferrite

    Low-Frequency Section
  • Woofer Diameter: 12"
  • Voice Coil Diameter: 2.6"
  • Diaphragm Material: Paper
  • Magnet Material: Ferrite

    Power Amplifier
  • System Rated Power: 800W RMS, 1600W Peak
  • HI/LO Freq. Rated Power: 400W RMS, 800W Peak
  • HI/LO Freq. Rated THD: <1%
  • HI/LO Freq. Cooling: Convection
  • HI/LO Freq. Design: Class D

    Channel 1 Input/Output
  • Mic-Line: 8kΩ balanced
  • 1/4" TRS, Wide-Z™: 1MΩ unbalanced

    Channel 2 Input/Output
  • Mic-Line: 8kΩ balanced
  • 1/4" TRS, Wide-Z™: 1MΩ unbalanced
  • RCA: 25Ω unbalanced
  • Thru: Male XLR balanced

    Power
  • Detachable Line Cord: 100 - 120V AC, 50 - 60Hz, 200W
  • AC Connector: 3-pin IEC 250V AC
  • Power Supply Type: Switchmode
  • Operating Temperature: 32°F - 104°F

    Safety Features
  • Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
  • Display LEDs: Defeatable front power ON (Running Man logo), Front Load Power Limiter, Speaker Mode, Feedback Destroyer, Input Signal

    Construction Features
  • Cabinet: 15mm Poplar
  • Finish: High durability black paint
  • Handles: One on each side
  • Grille: Powder-coated 18 gauge steel
  • Fly Points: 3 M10 x 1.5 x 37mm
  • Monitor Angle: 60°

    Physical
  • Dimensions (HxWxD): 23" x 14.2" x 14.9"
  • Weight: 37lbs


• Warranty:

  • 3 year inclusive of electronics, 2 year drivers (where applicable), nontransferable


• GTIN:

  0663961036367
