Magenta HD-One LX500 500 foot HDMI IR & RS-232 Extension via Cat6

Manufacturer: Magenta Research

Item #: MGE-2211113-01   •   MFG #: 2211113-01




Our Price:$800.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Since we don't think it's fair that the IT industry burdened Pro A/V professionals with an all-too-typical 100 meter limit for digital media extension, Magenta engineered an HDMI video and audio extension kit that can send 1920x1200 resolution HDCP-protected video, embedded audio, two-way RS-232 and IR to a distance of 500 feet (152 meters), all on a single Cat6.

    While the HD-One Series is already known for its picture quality, ease-of-use and reliability, the HD-One DX500 goes a step further, boasting improved heat dissipation, lower power consumption and significantly better resistance to emissions.

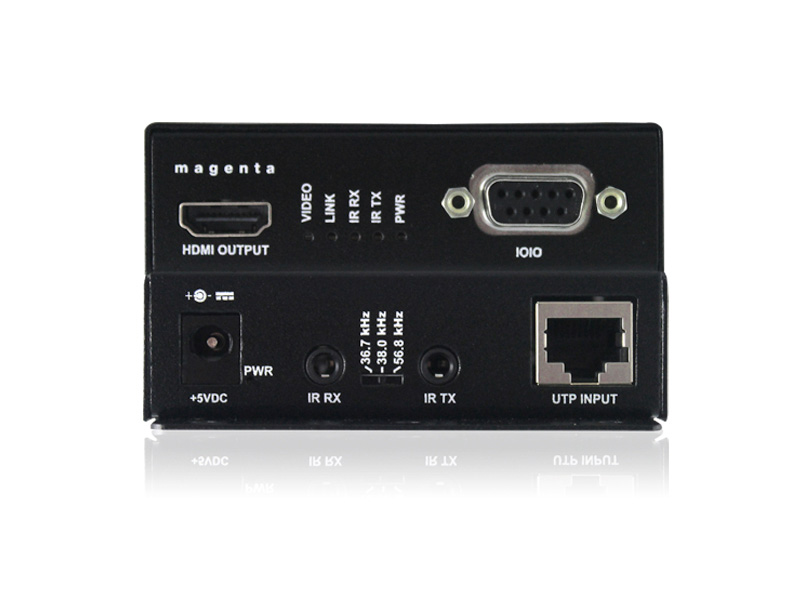

    An external switch lets users easily select from the following IR operating modes: 36.7 kHz, 38.0 kHz or 56.8 kHz.

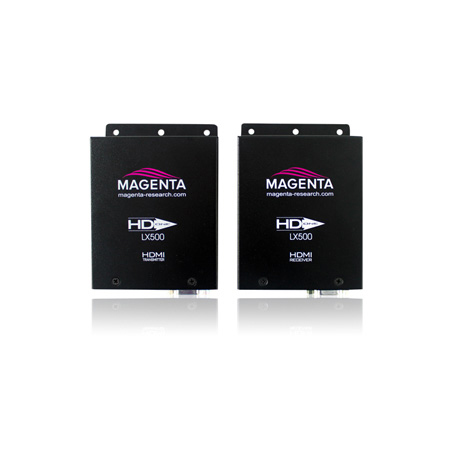

    The HD-One LX500 kit contains (1) transmitter, (1) receiver, (2) universal power supplies and (2) IR dongles.


    • Features

      • HDMI 1.4 and HDCP compliant
      • Uncompressed HD video to 1920x1200 @ 60Hz at 500ft/152m
      • Two-way RS-232 and IR (two IR dongles included)
      • Single UTP cable transfers video, audio and HDCP signals
      • Audio transmission supports Dolby TrueHD, DTS-HD Master Audio
