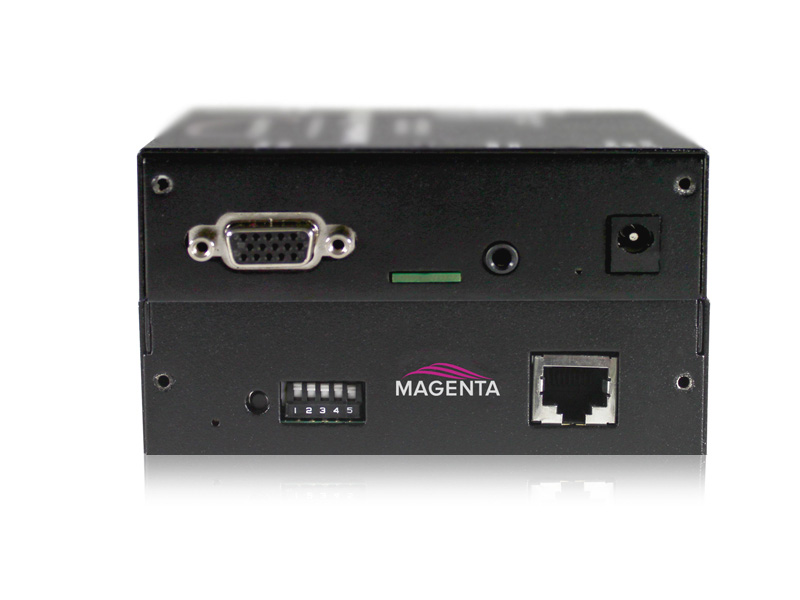

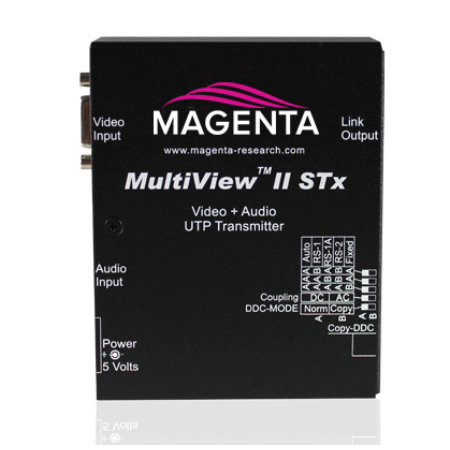

Magenta 2620001-02 - MultiView II STx Transmitter - VGA and Audio

Manufacturer: Magenta Research

Item #: MGE-2620001-02   •   MFG #: 2620001-02


Our Price:$169.00

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



    Still the most cost-effective transmitter entry in the MultiView Series, the totally revamped MultiView II STx transmitter still handles high-resolution video and audio on a single UTP cable, but now boasts a variety of new modes of operation for handling DDC and sync-all of which make replicating 1080p resolution video easier than ever before.

    Fully compatible with all products in the MultiView -A (video and audio) range, the MultiView II STx is capable of delivering 1920x1200 resolution video to distances of 2,000 feet/609meters when paired with an appropriate MultiView receiver.

    DDC choices include a Magenta Magic profile (which supports the most popular VESA resolution standards in both widescreen and standard formats) and the ability to copy and store DDC information from a specific device. Sync modes include Magenta's innovative new RepliSync-II technology, which is capable of encoding and decoding very narrow sync pulses that some of today's high resolution devices require.

    • Features

      • RGBHV and non-RGBHV1 video support.
      • "Magenta Magic" and "copy" DDC options.
      • New video sync operating modes (featuring ReplicSync-II).
      • Available in a limited MultiView-A functionality version-video and audio2 only.
      • Compatible with all MultiView-A transmitters, receivers, distribution amplifiers and matrix switchers.
      • Supports 1920x1200 resolution from 1 to 2000ft/609m (Maximum distance capability is determined by receivers distance specification).
      • Optional mount kits and mini-dense power supplies for rack-mount / rigid installations.
    • Specifications

      • Video Support All VESA modes to WUXGA (1920x1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p
      • Resolution / Refresh Rate To 1920x1200 at 60 Hz (MultiView Receiver Dependent)
      • Required Source Impedence Video Out: 75 Ohms; Audio Out (if applicable) 600 Ohms maximum;
      • Required Destination Impedence Video In: 75 Ohms; Audio In (If applicable) 600 Ohms maximum;
      • Audio Support Left/Right Summed Audio
      • Line Level 600 Ohm Unbalanced
      • Cable Supported Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) low-skew
      • or skew-free cable. Please see the "Recommended UTP" page for more detailed information.
      • Cascading Capability No
      • Compliance CE; FCC Class A, IC Class A, UL listed I.T.E. Device, RoHS
      • Power +5 VDC @ 260mA Maximum. Consumption 5 Watts Maximum
      • Temperature Tolerance Operating: 32 to 104°F (0 to-40°C) Storage: -4 to 140°F (-20 to 60°C)
      • Humidity Tolerance Up to 80% Non-Condensing
      • Mounting Rack Mount Standard/Wall Mount Optional
      • Enclosure Steel, Black Powder-Coat Finish
      • Size 1.23"H x 3.34"W x 4.19"D (3.1 x 8.5 x 10.6 cm)
      • Weight 0.62 pound (0.28 kg)
      • Skew Compensation Not Applicable on Transmitters
      • Warranty Three (3) Years
    • Warranty

      • 3 Years
