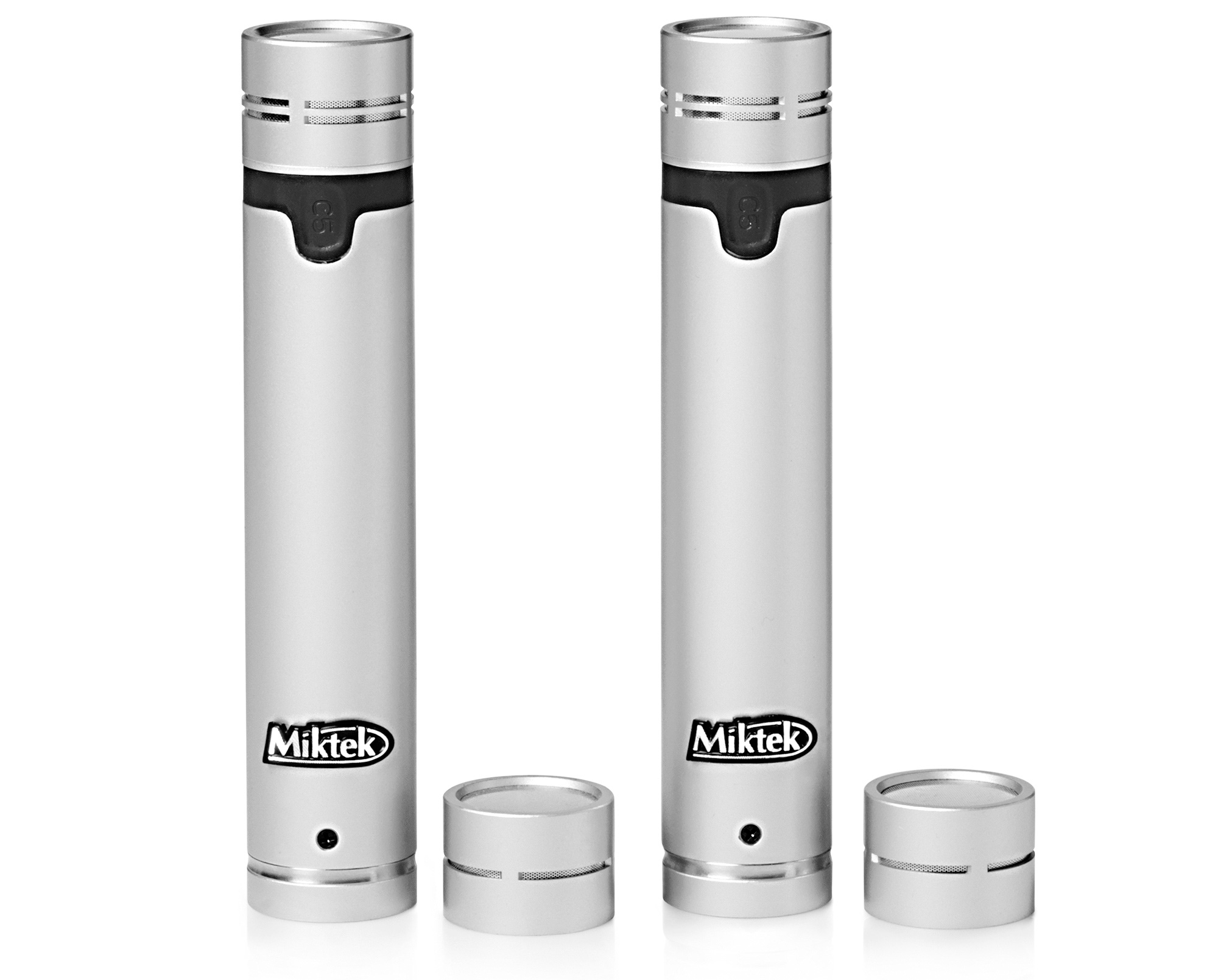

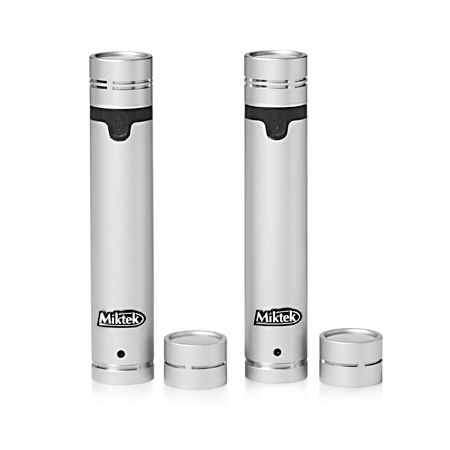

Miktek C5MP Small Diaphragm Cardioid Pencil Condenser Microphone - Matched Pair

ITEM #: MIK-C5MP MFG #: C5MP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MIK-C5MP

C5MP - Overview

The Miktek C5 pencil condenser provides discerning engineers with a valuable new tool for the critical recording of acoustic instruments. The C5, fitted with our MK5a, 0.5-inch cardioid capsule, produces a super-linear, full-bodied response. The capsule employs a 5-micron tensioned Mylar diaphragm, on which a 0.5-micron layer of evaporated gold is applied. Tight tolerances and special attention to precise machining of the backplate, and acoustical porting, produces an off-axis response that ensures the accuracy of the microphone. The C5’s head amplifier has been designed around the AMI T5 transformer and, together with the implementation of high quality components including hand-selected transistors, offers a sweet response reminiscent of the iconic classic mics of the past. The Miktek C5 is perfect for recording acoustic instruments including violin, acoustic guitar, mandolin, dobro, brass, woodwind, and piano. The C5 produces excellent results on drums as overheads or hi-hat mics. The Miktek C5 is hand built using components from the US, Europe and Asia, and is tested and packaged in Nashville, Tennessee, USA. Each microphone includes its serialized frequency response graph created during final testing. The C5 is available as a single instrument packaged with a mic clip and wooden presentation box, or as a matched pair packaged with two clips in a wooden box and set inside an aluminum case. Matched-pair accessories include two shock mounts, windscreens and a stereo bar.

  • Features:

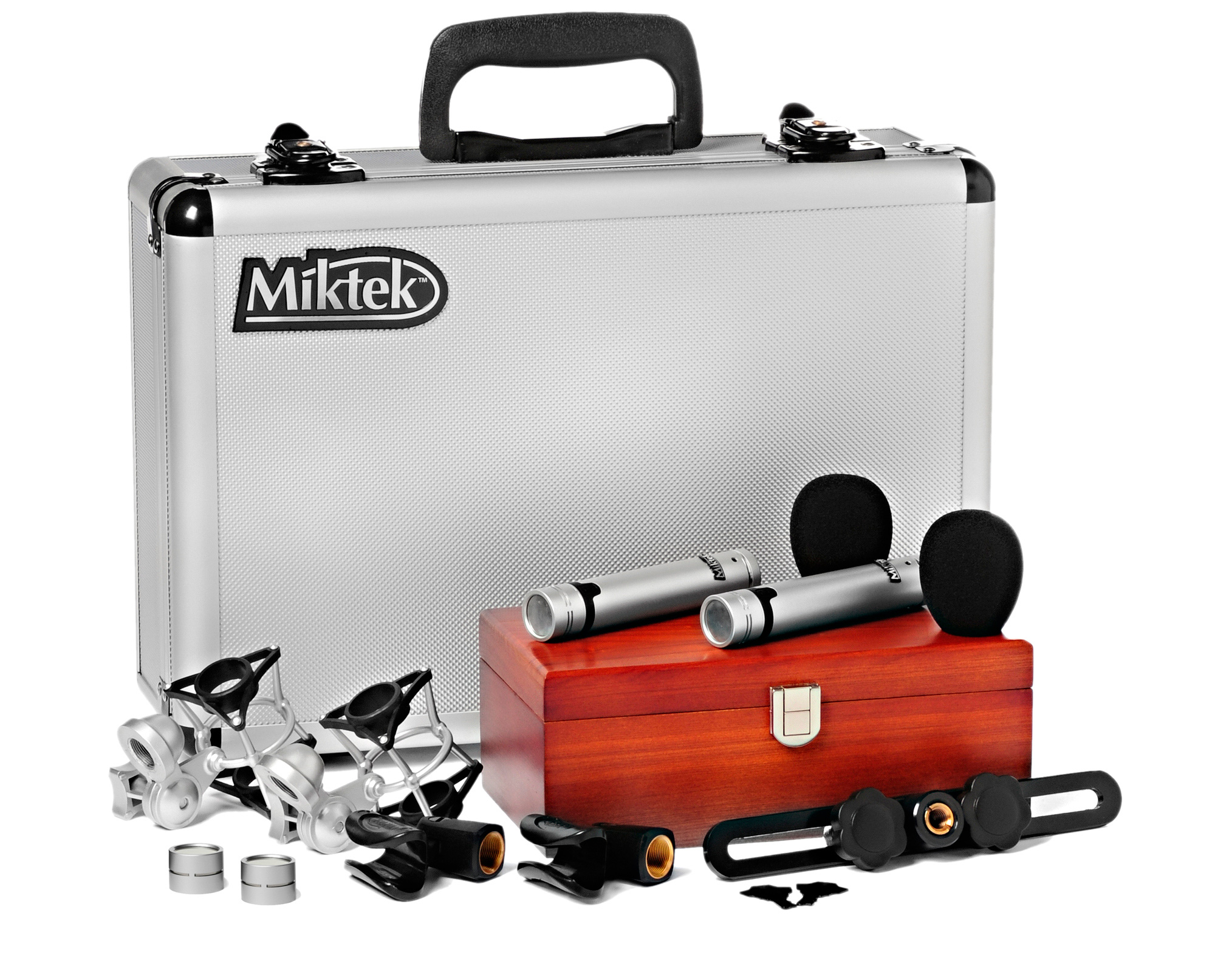

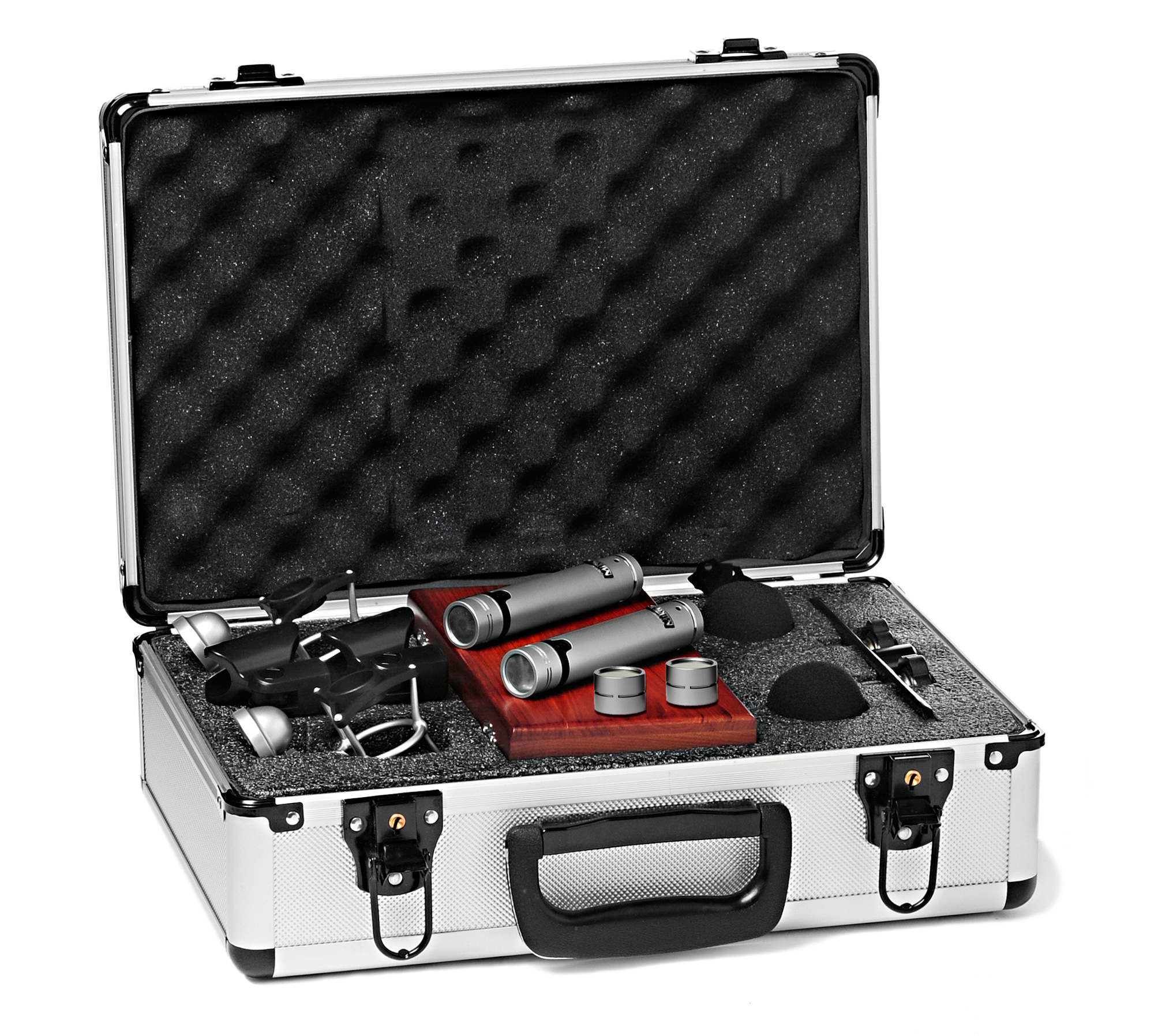

    • Matched Pair of C5’s Includes MK5bMP Omni Capsule set Hand-selected Transistors American Made AMI T5 Transformer Individual serialized Frequency Response Graph Packaged in a wood Presentation Case with Mic Clips, Shock-mounts, Windscreens, Stereo Bar Set, in a rugged aluminum carrying case

  • Specifications:

    • Transducer: Small Diaphragm Condenser
    • Polar Pattern: Cardioid
    • Frequency Response: 20Hz - 20kHz
    • Dynamic Range: (Typical) 109dB
    • Signal-to-Noise Ratio: 77dB
    • Maximum Input Sound Level: 126dB
    • Sensitivity: - 32.4 dBV/Pa
    • Power Requirements: 48VDC, 0.5mA typical
    • Output Connectors: 3-pin XLR

  • GTIN:

    0837654904930
