Xantech ML95 Micro Link Universal IR Receiver

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Xantech ML95 Micro Link Universal IR Receiver

    Manufacturer: Xantech LLC

    Item #: ML95   •   MFG #: ML95



    List Price:$220.00
    Our Price:$218.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!

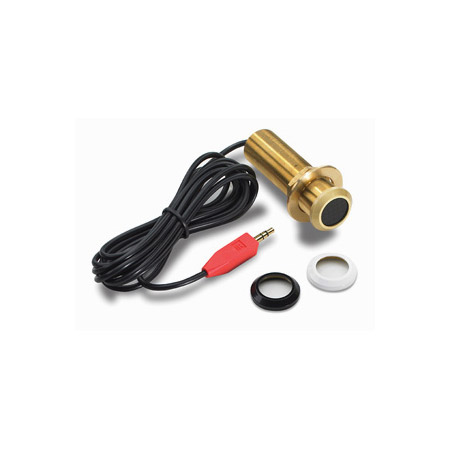

      The Micro Link IR Receiver is a small peep-hole style infrared repeater assembly. The Micro Link IR Receiver is equipped with a 7-foot cable and a 3.5mm stereo mini plug, which is plugged directly into the "IR RCVR" jack on the connecting block, such as the models 789-44, CB60, and 791-44. The Micro Link IR Receiver is primarily intended for use in installations where the connecting block is within reach of its 7-foot cable - as when installing the Micro Link IR Receiver in a cabinet where the controlled equipment is behind closed doors.


      • Features

        • Small size; mounts in 1/2" diameter hole. 2 inches deep (50mm).
        • Quick-Connect 3.5mm Stereo Mini Plug on 7ft. cable for direct plug-into Xantech Connecting Blocks.
        • Works in normal 3-wire mode (12VDC, IR, GND).
        • Green Talkback LED for System Verification.

      • Specifications

        • Infrared modulation frequency bandwidth: 25 - 60 kHz.
        • IR reception range: Up to 120 feet, depending on remote control output strength and ambient conditions.
        • Reception angle: 55 degrees off axis for 50% range reduction.
        • Cable requirements: 3-conductor. Use 24 gauge up to 200', 22 gauge up to 600' 20 gauge up to 2000', 18 gauge up to 5000' - unshielded
