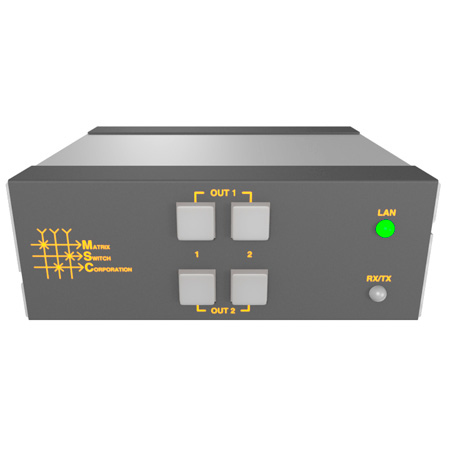

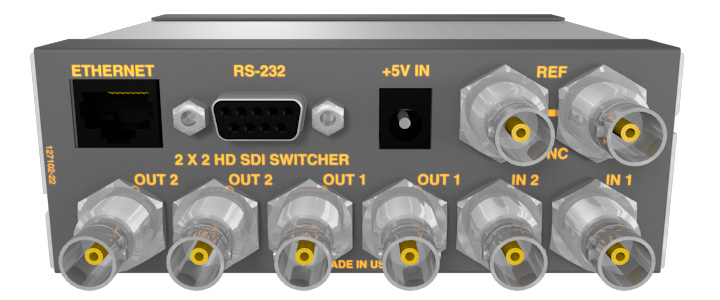

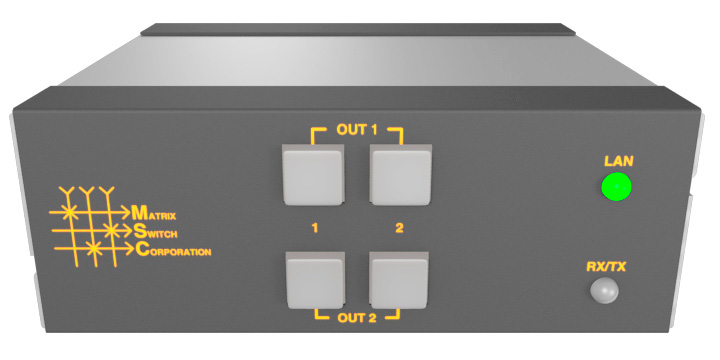

Matrix Switch MSC-HD22L 3G/HD/SD-SDI 2x2 Mini Routing Switcher

Item #: MSC-HD22L   •   MFG #: MSC-HD22L



List Price:$675.00
Our Price:$549.95

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Matrix Switch Corporation's new Mini SDI video routing switchers are available in three versions: 2 inputs with 2 outputs, 4 inputs with 1 output and 4 inputs with 2 outputs. The 2x2 and 4x1 versions have dual BNC connectors per output, which can eliminate the need for extra distribution amplifiers in some situations. The Mini router is ideal for applications that do not need rack mounting, need a compact size and when low cost is important.

These small routers do not skimp on either technical performance or control features. The new mini router employs the same high quality professional broadcast components used in Matrix Switch Corporation's other SDI video routers.

Matrix Switch Corporation routers offer flexible and user friendly control, including a built in interactive web page interface and simple yet powerful text based control protocol which can be sent via TCP/IP or RS-232 Serial Port.


  • Features

    • Dual BNC connectors per output
    • DVB-ASI support (not redundant BNC outputs due to inverted signal phase)
    • Interactive web page interface
    • Vertical interval switching
    • Video mute on every output
    • Store and recall up to 10 presets (complete or partial matrix state recall)
    • Passes SDI embedded audio and ancillary data
    • Includes button control on front panel
    • Compact design - 5 x 5 x 1.75 inches and weighs less than 2 pounds including the power supply
    • Low power consumption - less than 5VA
    • Software updates via Ethernet port
    • Backed by a full 2 year manufacturer parts and labor warranty
    • Flexible control via a text based protocol (MASCOT) over TCP/IP via Ethernet port, RS-232 serial or web page interface
    • Compatible with Matrix Switch Corporation TCP/IP Remote Panels

  • Specifications

    • Specifications
    • Size: 5"W x 1.75"H x 5"D
    • Weight: 2 lbs
    • Power: 5 VDC
    • Power Consumption: 7W
    • Storage Temp: -10 Through +50 Deg C
    • Operating Temp: 0 Through +40 Deg C
    • Humidity: 0 Through 90% Non-Condensing
    • Warranty: 2 Years Parts & Labor
    • SDI Video
    • Connector type: BNC
    • Data Types: SMPTE 259/292/424
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s
    • Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Level: 800 mV P-P +/- 20%
    • Input Impedance: 75 Ohms +/- 1%
    • Cable equalization (1694A coax): 350m @ SD, 175m @ HD, 100m @ 3G
    • Output Level: 800 mV P-P +/- 5%
    • Output Impedance: 75 Ohms +/- 1%
    • Output Jitter: < 0.2 UI
    • Reference Signal
    • Connector: Analog BNC with pass-through
    • Format: NTSC, PAL and Tri-level sync
    • Control Specifications
    • Serial RS232: 9600 Baud 8N1
    • Ethernet: 10 BaseT TCP/IP
    • Panel control: Local and remote button control panel options
