MuxLab 500072 - USB 2.0 4-Port Extender Kit
  • MuxLab 500072 - USB 2.0 4-Port Extender Kit
  • MuxLab 500072 - USB 2.0 4-Port Extender Kit
  • MuxLab 500072 - USB 2.0 4-Port Extender Kit
Questions? Ask a Markertek Expert:
800-522-2025 Email

MuxLab 500072 - USB 2.0 4-Port Extender Kit

Manufacturer: MuxLab Inc

Item #: MUX-500072   •   MFG #: 500072




The USB 2.0 4-Port Extender Kit enables USB 2.0 connectivity over Cat5e/6 at data rates up to 480Mbps & extends true USB up to 100m (328ft) over standard Cat5 UTP.
This USB 2.0 4-Port Extender Kit is true plug and play, requires no additional software drivers, and is compatible with all major operating systems.

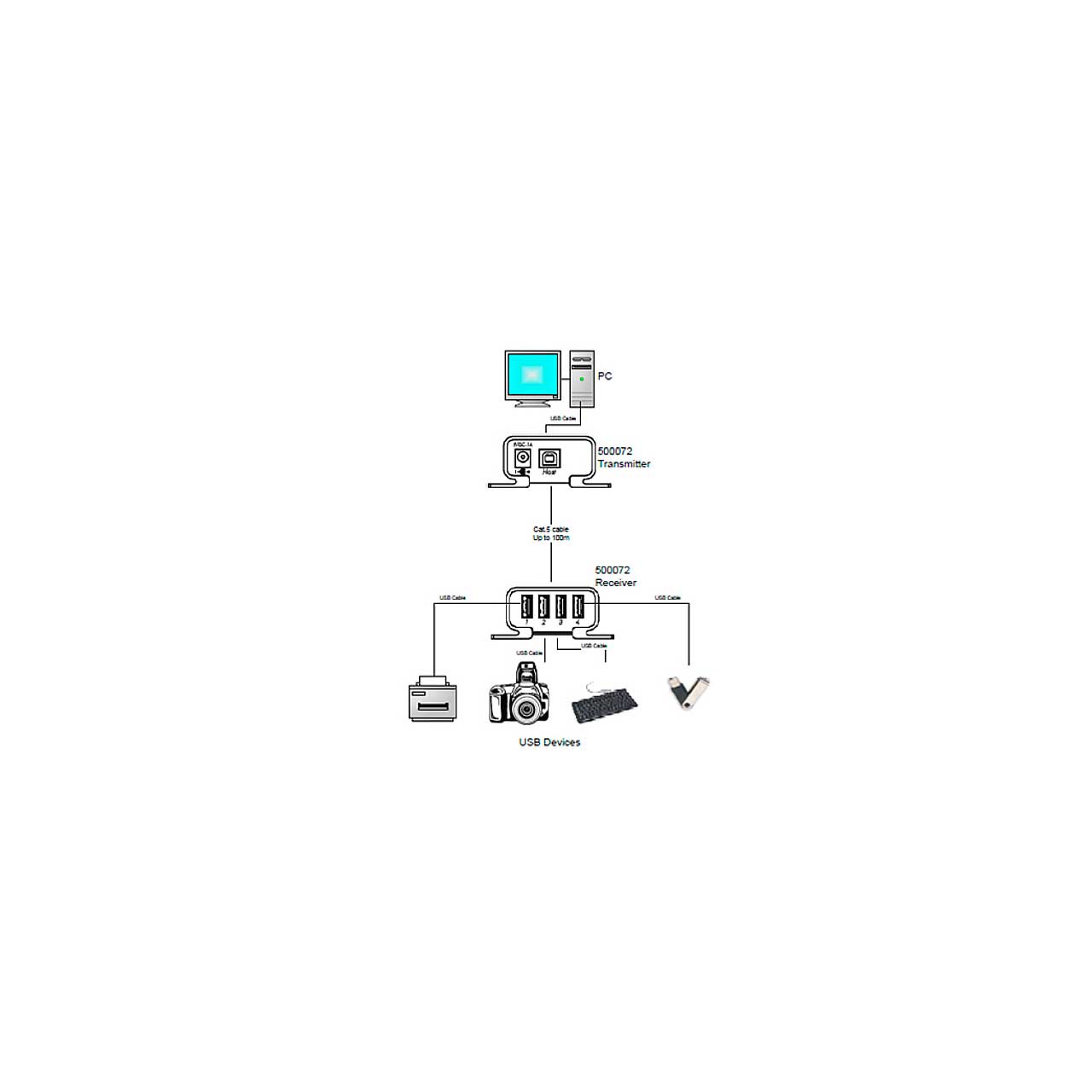

The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards
Remote access to: Laser printers, Scanners, Web cameras, External hard drives, CD/DVD burners, & flash drives.

  • Features

    • True plug and play, no driver installation required.
    • Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices up to 100m (328ft) over Cat5e/6 cable.
    • Supports all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480Mbps.
    • Compatible with major operating systems.
    • Aluminum enclosure and wall mount.
  • Specifications

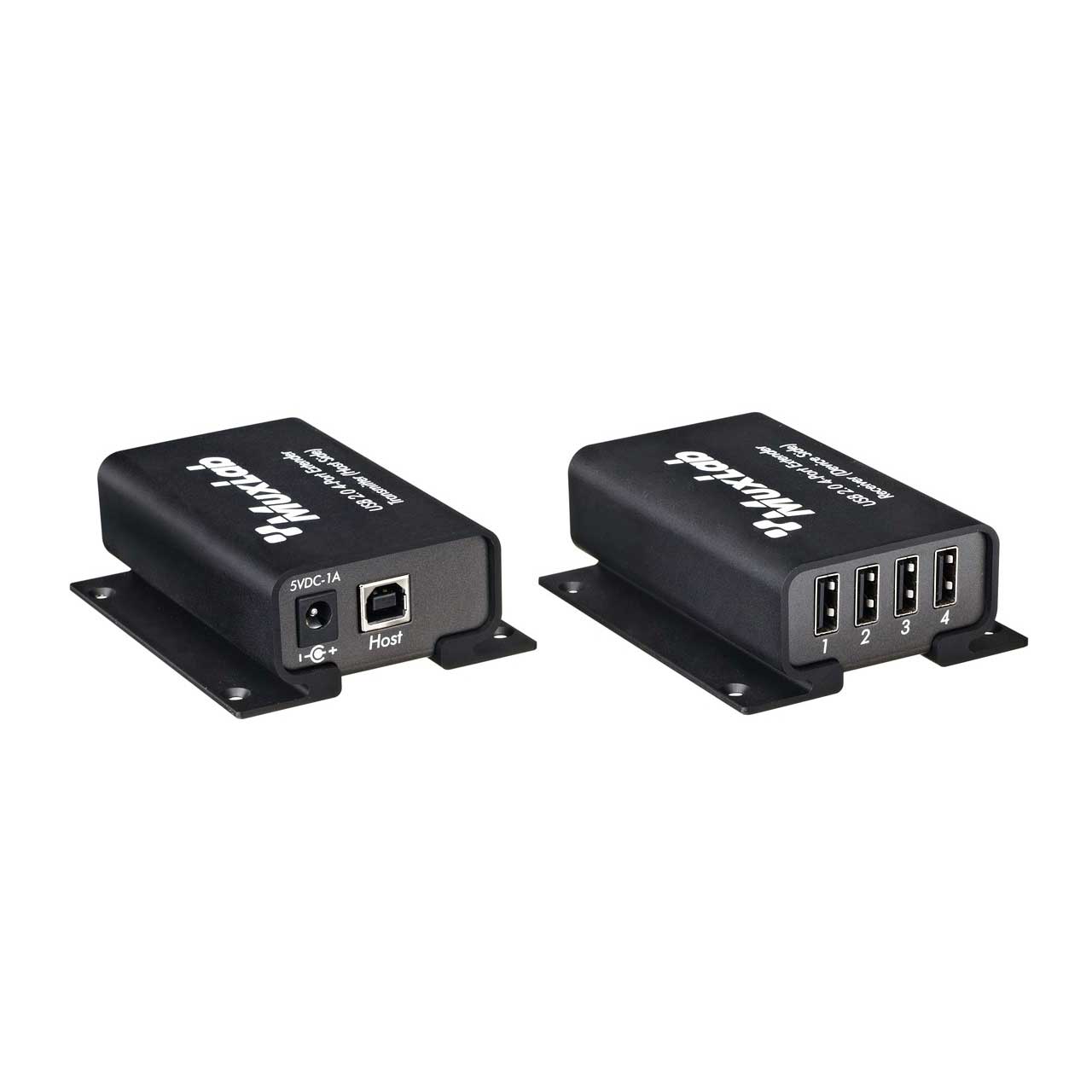

    • Transmitter: Input USB B - Output RJ-45
    • Receiver: Input RJ-45 - Output USB Type A x 4
    • Cable: Cat. 5e/6
    • Max. Cable Length: 100m (328ft)
    • LEDs: Power, Link, Activity (3)
    • USB Cable Length: 0.6m (USB Type A/M to Type B/M)
    • Power Supply: 5VDC
    • Housing: Extruded Aluminum
    • Dimension: ( L x W x H ) 3.6" x 2.9" x 1.25" (90 x 73 x 31mm)
  • Item Includes

    • One Transmitter unit
    • One Receiver unit
    • Two 5VDC Power adapter
    • One USB 2.0 Type A/M to Type B/M Cable 0.6m
  • Warranty

    • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products
