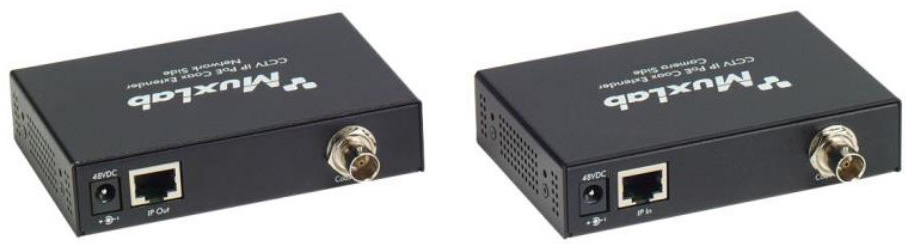

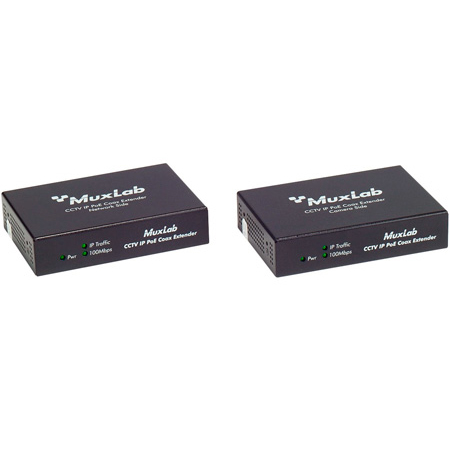

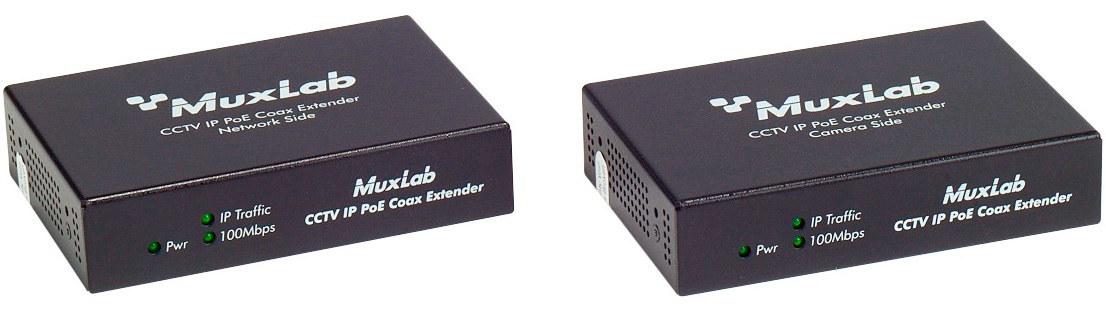

Muxlab 500112 LongReach CCTV IP PoE Extender Kit
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Muxlab 500112 LongReach CCTV IP PoE Extender Kit

    Manufacturer: MuxLab Inc

    Item #: MUX-500112   •   MFG #: 500112


    List Price:$400.00
    Our Price:$300.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.

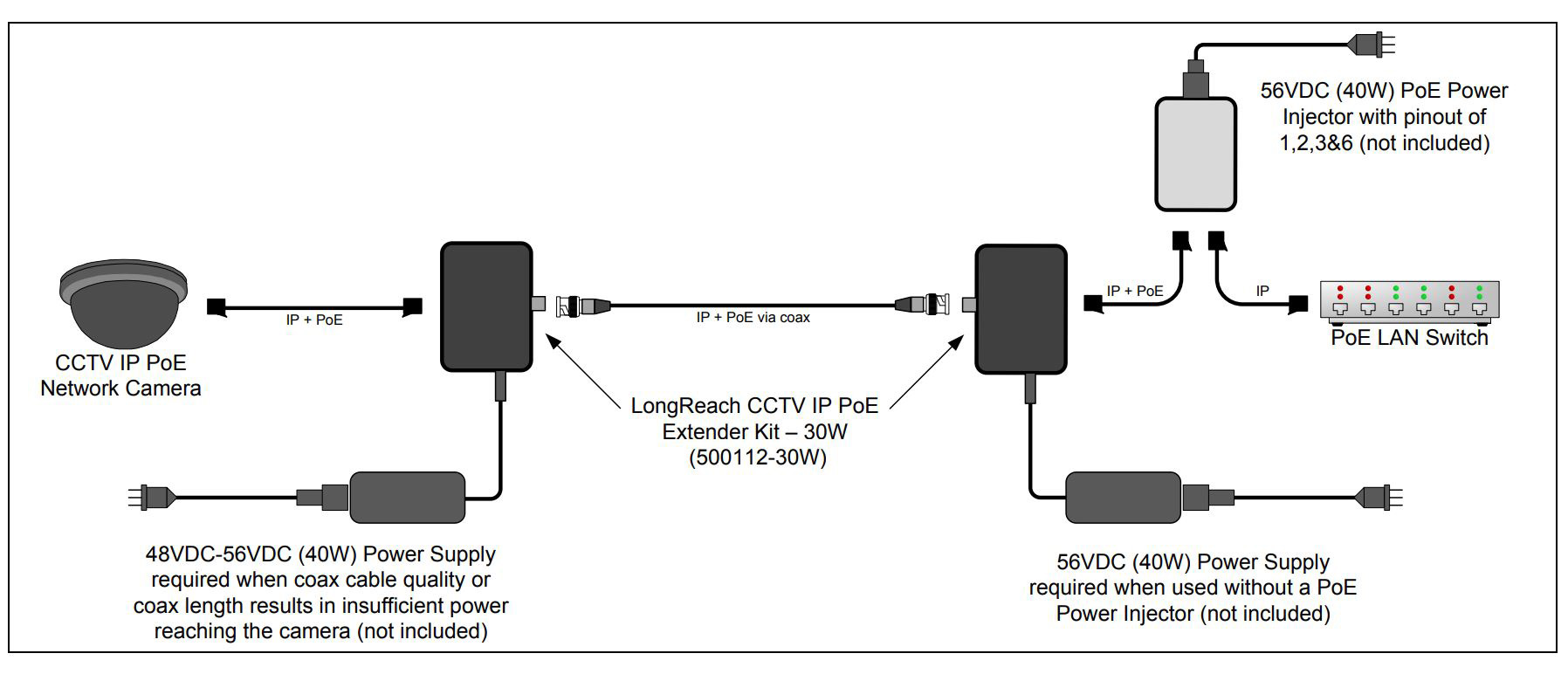

      The LongReach CCTV IP PoE Extender Kit allows one CCTV PoE IP camera (up to 15.4 Watts) to be connected up to 1000 ft (300 m) via a single 75-ohm coax cable in a point-to-point configuration to a PoE LAN switch.

      • Features

        • Supports one IP PoE camera via one coax cable
        • Supports CCTV IP PoE cameras up to 15.4W
        • Up to 1000 ft (300m) via coax @ 100Mbps/15.4W
        • Up to 330 ft (100m) on the LAN connection
        • LED indicators for power, IP traffic, 100Mbps
        • Optional 48VDC power supply (500113)
        • Includes wall-mount brackets
      • Specifications

        • Environment PoE CCTV IP
        • Devices PoE CCTV IP cameras with a 10/100Mb/s Ethernet port, using up to 15.4 Watts.
        • Transmission Transparent to the user
        • Standard supported Ethernet side: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IEEE 802.3af compatible PoE
        • PoE Power PoE Class 3
        • Connectors One (1) BNC 75 Ohms.
        • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
        • LED Indicators Power, IP Traffic, 100Mbps
        • Maximum Distance RG59/RG6: Up to 980 ft (300m) @ 100Mbps
        • UTP Cat 5e/6: Up to 330 ft (100 m) @ 100 Mbps
        • Note: When installed in an electrically noisy environment, an STP cable must be used. Also, crossconnection
        • reduces the effective distance depending on the grade of twisted cable used.
        • RJ45 Pin Configuration
        • Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straightthrough
        • wiring.
        • Cable UTP/STP: One (1) Cat 5e/6 or better twisted pair cables required
        • RG59/RG6: 75 Ohms (avoid CCS and aluminum foil cable due to DC loss)
        • PoE Power Supply
        • (500113)
        • Optional Power Supply (110-240V/48VDC/.625A, 2.1mm plug) with interchangeable blades (sold
        • separately)
        • Required at the Camera Side Device when coax cable quality or length results in insufficient
        • power reaching the camera. Required at the Network Side Device when used with non-PoE
        • LAN switch.
        • Power Consumption Network Side: 1.82 Watt Camera Side: 1.73 Watt
        • Temperature Operating: 0° to 40°C
        • Storage: -20° to 85°C
        • Humidity: Up to 95% non-condensing
        • Enclosure Metal

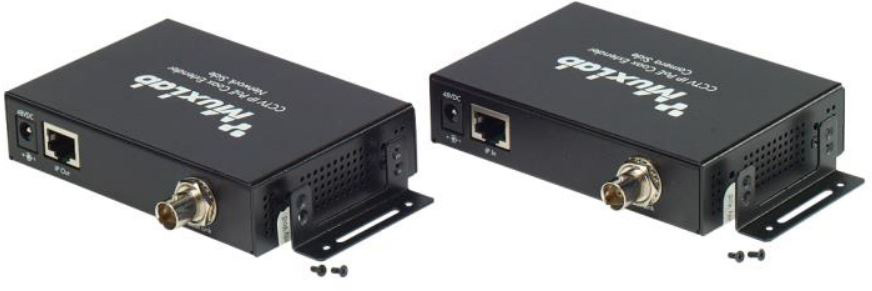

        • Accessories Wall-mount brackets included
        • Dimensions 4.37" x 2.95" x 0.99" (111 x 75 x 25 mm)
        • Shipping Weight 500112: 1.5 lb (0.68 kg)
        • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
        • Warranty 2 years
        • Order Information 500112 LongReach CCTV IP PoE Extender Kit
        • 500113 Power Supply for 500112 (48VDC)
      • Item Includes

        • TX and Rx
      • Warranty

        • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products
