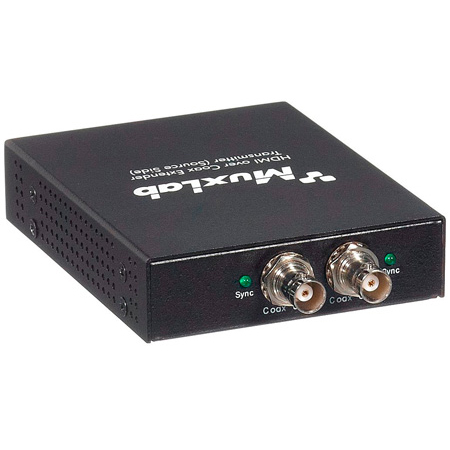

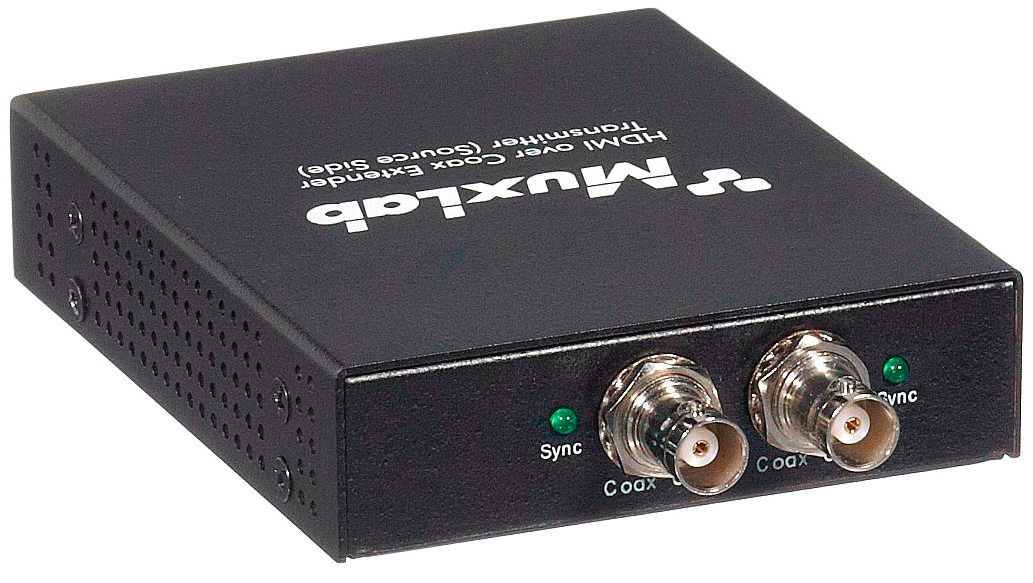

MuxLab 500465-RX HDMI Over Coax Receiver

500465-RX - Overview

• Features:

  • Supports HDMI over one RG59 coax cable
  • Up to 250 ft (76m) at 1080p resolution
  • Up to 500 ft (152m) at 1080i/720p resolution
  • TX: Converts HDMI to SDI
  • RX: Converts SDI to HDMI
  • Ideal for harsh electrical environments

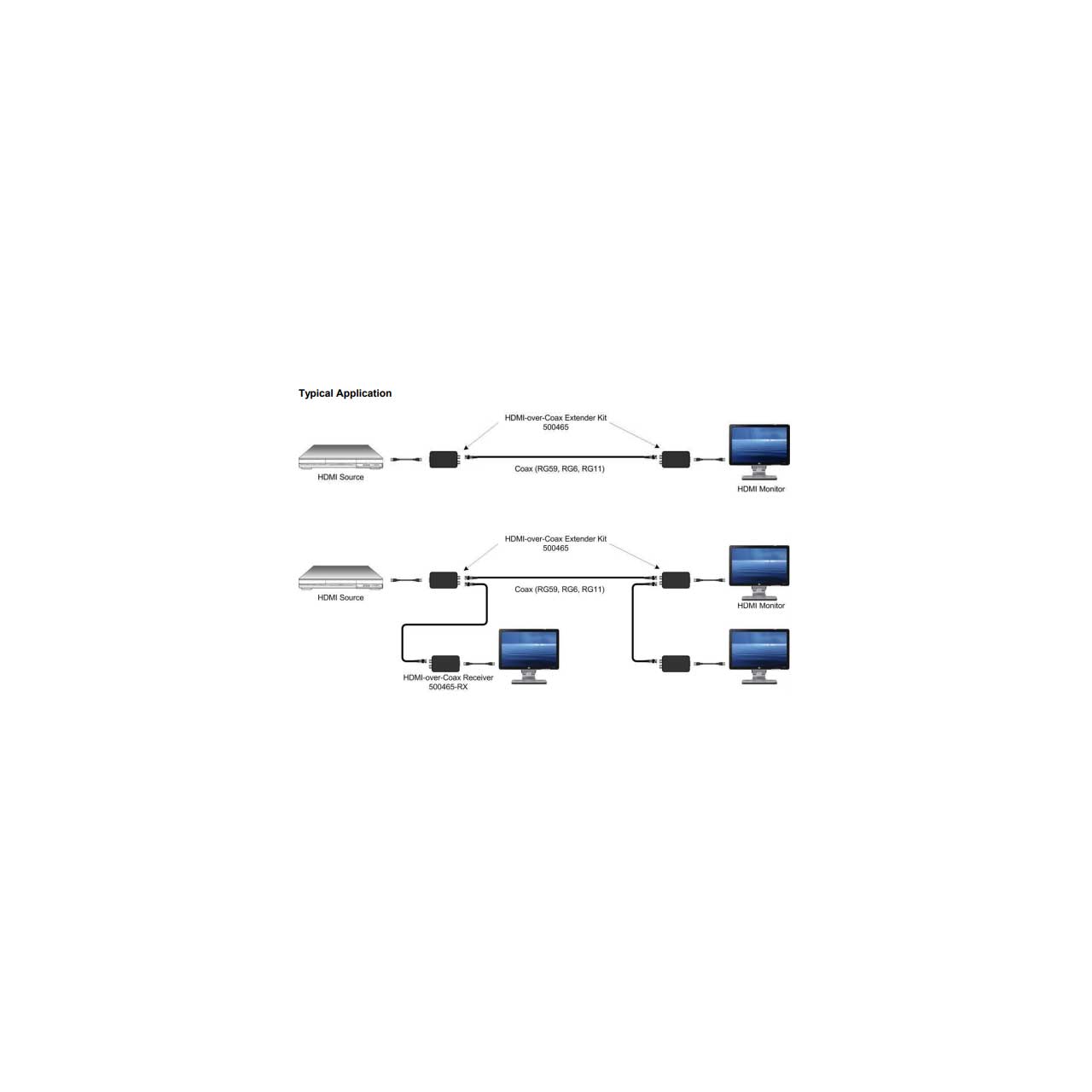

  • Cascadable on the TX and RX side


• Specifications:

  • Environment: HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI
  • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
  • Transmission: Transparent to the user
  • Bandwidth: 225 MHz
  • Signals: HDMI 1.3a & SDI protocol
  • Supported Resolution: 480i, 576i, 720p, 1080i, 1080p/23.98/24/25/29.9/30/50/59.94/60
  • Connectors:
    One (1) HDMI receptacle
    Two (2) BNC Female 75 Ohms
    Note: HDMI cables not included
  • Maximum Distance: Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end.
    480i: RG-59: 650ft (198m) RG-6: 800ft (244m)
    720p, 1080i: RG-59: 500ft (152m) RG-6: 650ft (198m)
    1080p: RG-59: 250ft (76m) RG-6: 300ft (91m)
  • Cable: One (1) RG-59 or better cable required
  • Power Supply: Two (2) 110-240V/5VDC power supplies with interchangeable blades
  • Power Consumption Transmitter: 3.30 Watt Receiver: 3.55 Watt
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 185°F (-20° to 85°C)
  • Humidity: Up to 95% non-condensing
  • Enclosure: Metal
  • Dimensions: 4.72 x 3.54 x 1.18" (12 x 9 x 3cm)
  • Weight: 1.3Lbs (0.59kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


• Warranty:

  • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products


• GTIN:

  0627699814659
