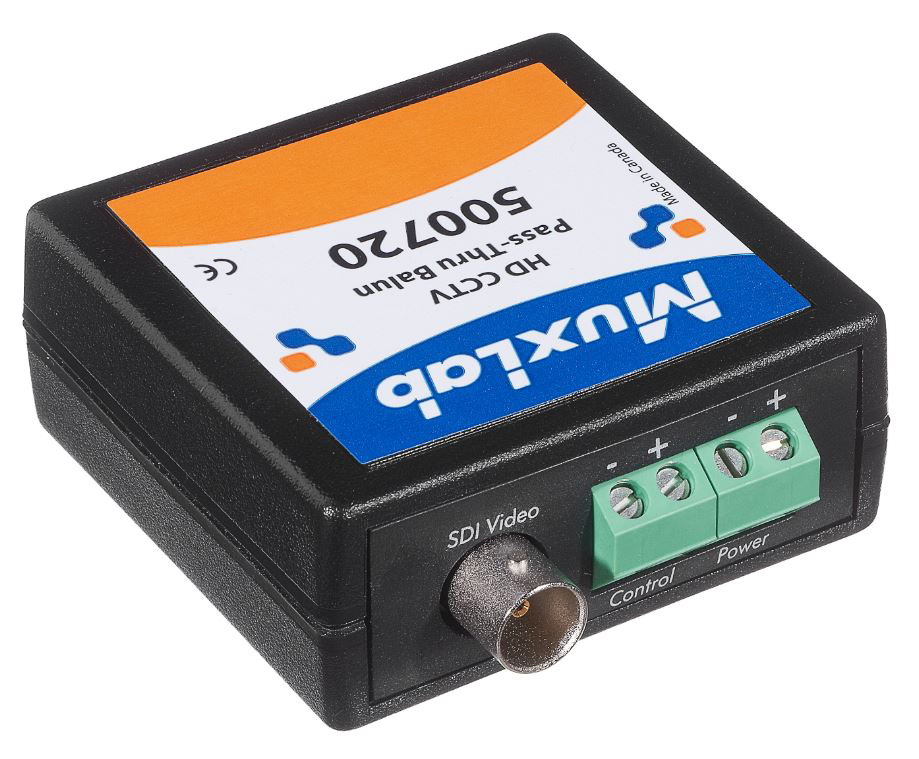

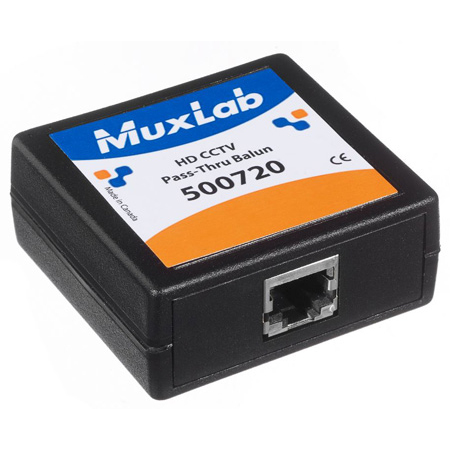

Muxlab 500720 HD CCTV Pass-Thru Balun

ITEM #: MUX-500720 MFG #: 500720

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUX-500720

500720 - Overview

The MuxLab 500720 - HD CCTV Pass-Thru Balun allows one HD CCTV (HD-SDI) video channel plus remote power and PTZ control to be transmitted between the HD CCTV camera and the DVR via Cat5e/6 cable in the HD CCTV environment.

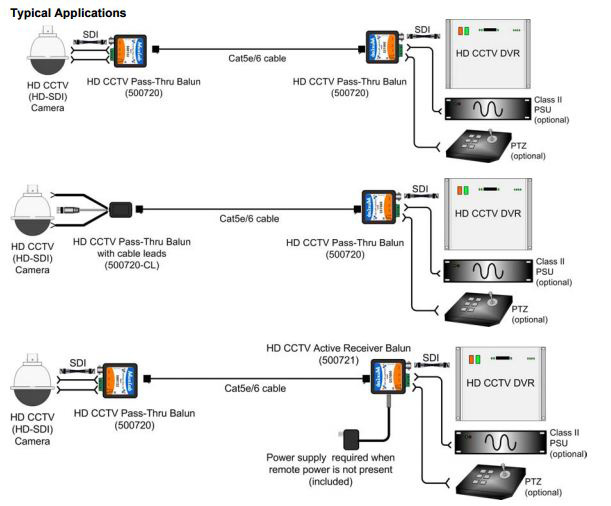

The 500720 is used in conjunction with either another 500720 or in conjunction with the MuxLab 500700-CL or 500721.

Applications
Campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, selfstorage, hospitals, car dealerships

  • Features:

    • HD-SDI video, power and PTZ over one Cat5e/6
    • Supports SD & HD (1080i) resolutions
    • Works in pairs or with 500720-CL or 500721
    • Supports MuxLab mounting accessories (500900/902/910/915)

  • GTIN:

    0627699007204
