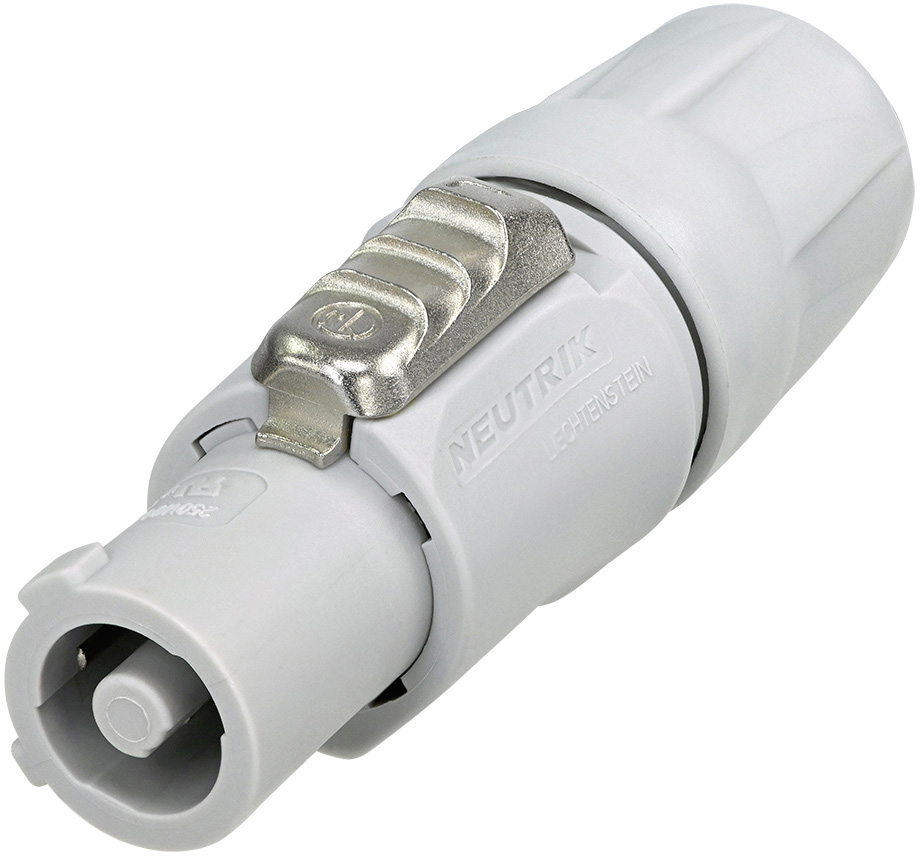

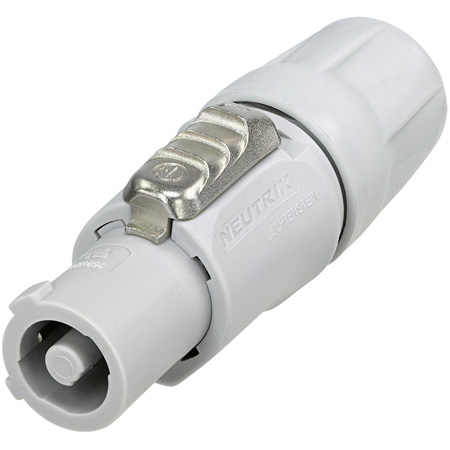

Neutrik NAC3FCB powerCON Cable End Power Out - Gray

ITEM #: NAC3FCB MFG #: NAC3FCB

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NAC3FCB

NAC3FCB - Overview

Neutrik NAC3FCB lockable cable connector, power-out, screw terminals, grey

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

  • Features:

    • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
    • Fast and easy twist lock latching system
    • Extremely robust and reliable
    • Ergonomic design
    • Unique Neutrik chuck type strain relief
    • Improved kink protection by two-component bushing
    • UL, cUL recognized components, VDE certified, SEV approved
    • Branded with unique hologram - guarantees genuine and authentic Neutrik product

  • Specifications:

    • Electrical
    • Contact resistance: ≤ 3 mΩ
    • Dielectric strength: 4 kVdc / 2.8 kVac
    • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
    • Number of electronical contacts: 2 + PE
    • Rated current per contact: 20 A rms
    • Rated voltage: 250 V ac

      Mechanical
    • Cable O.D.: 6 - 15 mm (1)
    • Lifetime: > 1000 mating cycles
    • Wiresize: 2,5 mm²
    • Wiresize: 14 AWG

      Locking device
    • Quick Lock; (1): Cable O.D. range limited to 6 mm - 14 mm acc. VDE

      Material
    • Contact plating: 4 µm Ag
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6 30 % GR)
    • Locking element: Zinc diecast (ZnAl4Cu1)
    • Shell: Polyamide (PA 6 30 % GR)
    • Strain relief: Polyacetal (POM)

      Environmental
    • Temperature range: -30 °C to +80 °C

  • GTIN:

    7613187002328
