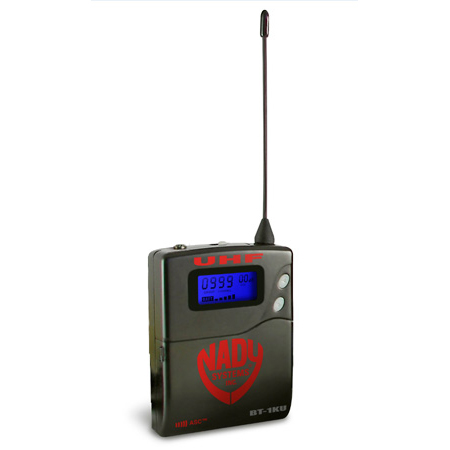

Nady BT-1KU Beltpack Transmitter For 2W-1KU Receiver

BT-1KU - Overview

• Features:

  • The BT-1KU transmitter comes with 1000 easily selectable channels - with up/down buttons on units or via IR Sync download of selected channel for easy synchronization with a receiver.
  • BT-1KU bodypack transmitter (choice of three versions: LT, LT/HM, or GT) features road worthy all-metal case; power Off/Mute/On switch; flexible external antenna rod; and mini locking connector for lapel (LT), Headmic (LT/HM), or instrument (GT) applications.
  • BT-1KU transmitters feature LCD displays indicating selected Group, Channel, Audio Input Levels, and Battery level status; transmitting High/Low RF power switch for optimizing distance operation depending on application; and operation with two AA batteries (alkaline or rechargeable NiMH) for longest reliable, economical battery life.


• Specifications:

  • RF Output Power: Hi/Lo selectable, HI: +14dBm (25mW typical),LOW: +4dBm (2.5mW typical).
  • Harmonic and Spurious Emission: -50dBc normal.
  • Audio Input Levels: 75mV (Lapel/Lavaliere-LT ) / 310mV (HeadmicT-LT/HM) /225mV (Instrument-GT) for +/- 25KHz deviation),
  • Input Impedance: 500 k ohm (Instr.).
  • Controls: Power OFF/MUTE/ON, RF Power HI/LOW switches, Set/Up/Down.
  • Input Connector: Mini 3.5mm with locking nut.
  • LCD Display: Group/Channels/Volume/Battery Levels.
  • Antenna Type: External fixed.
  • Battery Type: 2 x AA alkaline batteries operation.
  • Battery Life: 8-10 Hours typical.
  • Dimensions: 2.5"W x 3.25"H x 1-13/16"D (6.35cm x 8.3cm x 1.82cm).
  • Weight: (w/o batteries) 3.8 oz (0.108 kg).
  • Housing: Construction Metal.
