Neumann KH 120 Active Bi-amplified Two-way Nearfield Monitor - Analog Input
  • Neumann KH 120 Active Bi-amplified Two-way Nearfield Monitor - Analog Input
  • Neumann KH 120 Active Bi-amplified Two-way Nearfield Monitor - Analog Input

Questions? Ask a Markertek Expert:
800-522-2025 Email

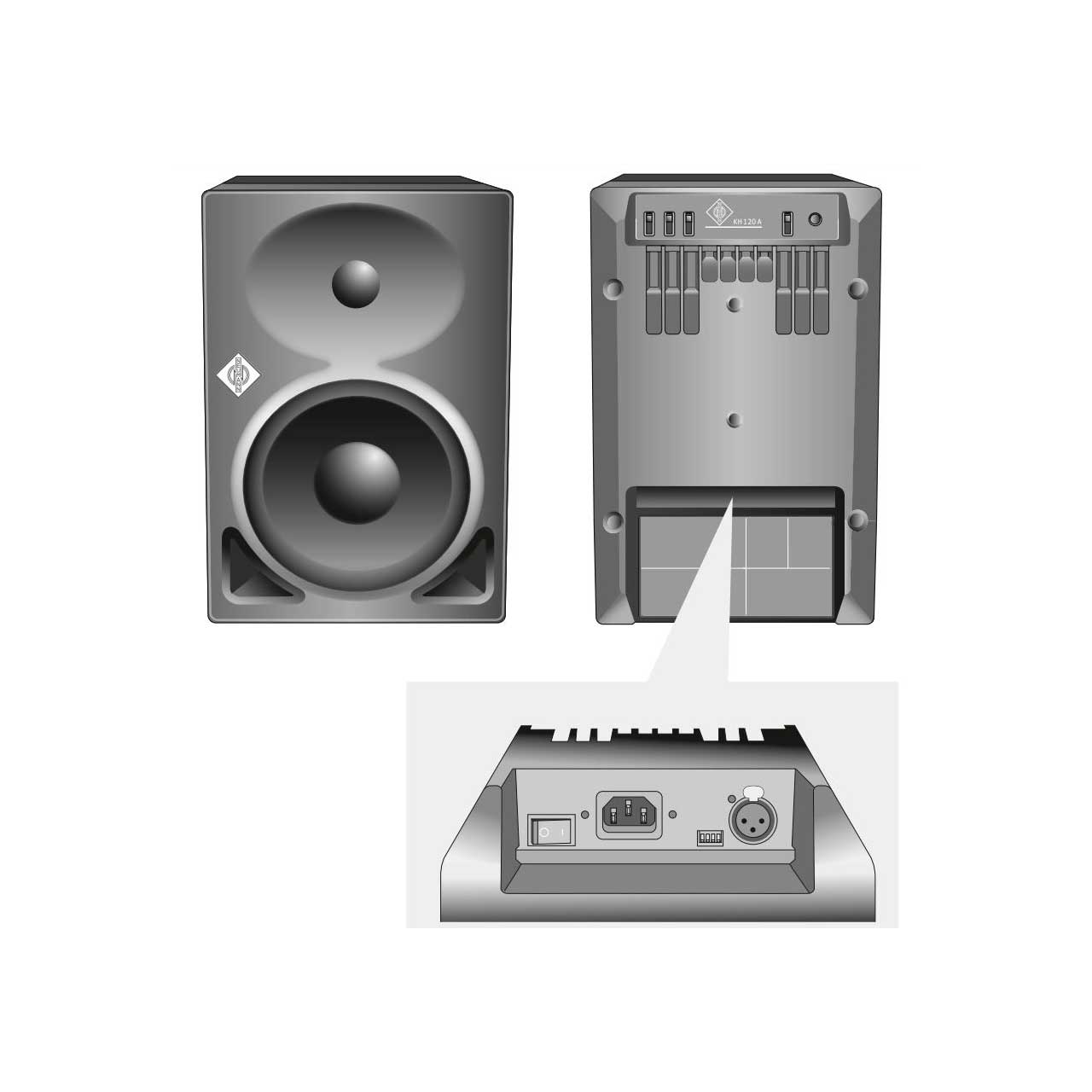

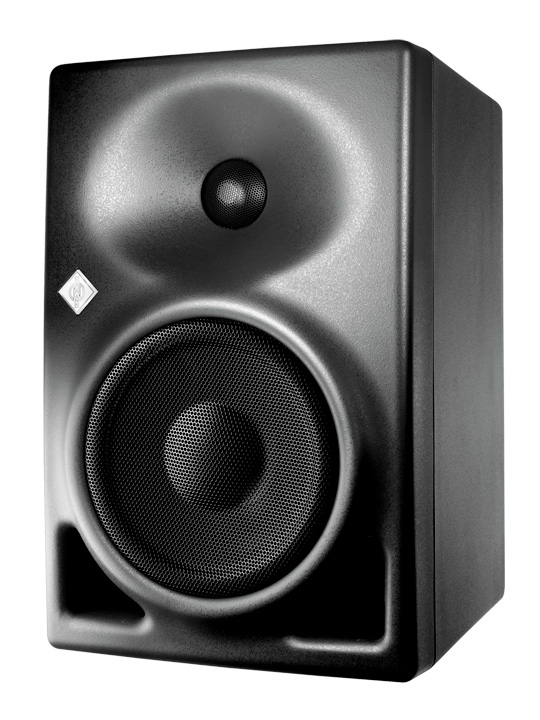

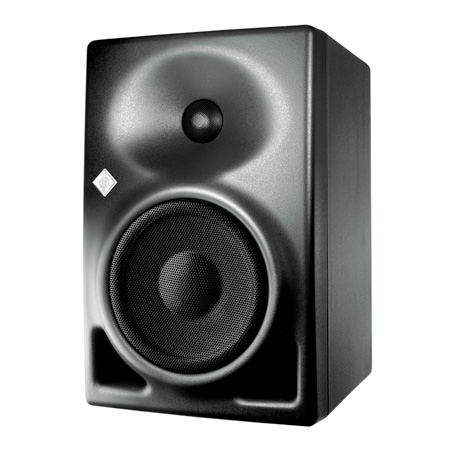

Neumann KH 120 Active Bi-amplified Two-way Nearfield Monitor - Analog Input

Manufacturer: Neumann

Item #: NEUM-KH-120   •   MFG #: KH 120A




Our Price:$699.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Neumann is excited to introduce its latest innovation, the KH 120, representing the first product in the new line of Neumann Studio Monitors.

    The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

    The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.


    • Features

      • Powerful titanium fabric dome
      • Low-distortion high-frequency reproduction
      • Elliptical Mathematically Modelled Dispersion (MMD) waveguide
      • Smoother off-axis response,
      • More forgiving of diverse acoustical environments
      • Composite sandwich cone
      • Damping of break-up modes
      • Long throw bass driver
      • Low distortions at high sound levels
      • Two-color + dimmable Neumann logo
      • Displays operation status and activation of the extensive protection system
      • Robust metal grille
      • Protects against mechanical damage
      • Large front panel ports
      • Reduced bass compression and easier to mount in tight spaces such as OB vans
      • Compact aluminum cabinet (magnetically shielded)
      • Minimizes resonances, better heat dissipation, long life
      • Wide horizontal dispersion
      • Freedom of movement across the mixing console
      • Narrow vertical dispersion
      • Reduces reflections off the mixing console
      • One-piece front panel with no discontinuities
      • Reduced diffraction and smoother frequency response
      • Powerful analog amplifiers with large headroom
      • Improved transient response
      • Production consistency
      • Any KH 120 is "pair-matched" to any other KH 120

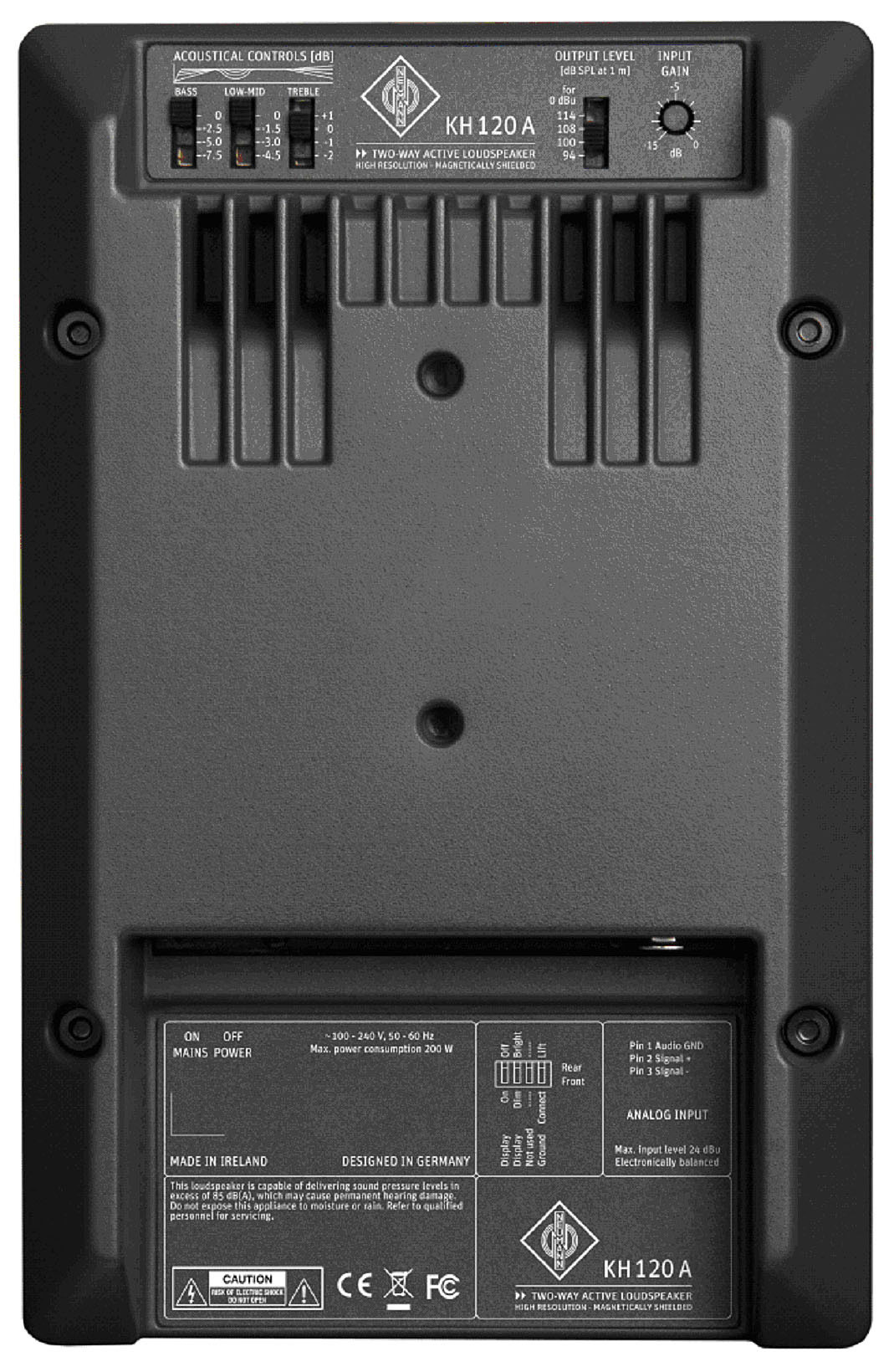

      • 4-position bass, low-mid and treble acoustical controls
      • More control in diverse acoustical environments
      • Wide range input gain and output level controls
      • Easier interfacing with signal sources
      • New mounting hardware options
      • More flexibility in mounting cabinets in more diverse locations
      • Display dimmer
      • For low lighting level conditions or behind the screen applications
      • Ground lift
      • Reduced noise in electrically noisy environments and over-comes ground loops
      • Universal switched-mode power supply
      • (100 . 240 V)
      • One version works in any country and robust to poor quality mains supply
      • Separate woofer and tweeter electronic peak limiters and thermal-protection circuitry
      • High reliability

    • Specifications

      • Acoustics:
      • Free field frequency response 52 Hz . 21 kHz, ± 3 dB
      • Pass band free field frequency response 54 Hz . 20 kHz, ± 2 dB
      • Self-generated noise
      • (with input gain set to 100 dB for 0 dBu) < 20 dB(A) at 10 cm
      • Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m > 100 Hz
      • Max. SPL in full space / calc. in half space
      • at 3% THD at 1m 105.1 / 111.1 dB SPL
      • (averaged between 100 Hz and 6 kHz)
      • Bass capability: Max. SPL in half space
      • at 3% THD at 1m 104.8 dB SPL
      • (averaged between 50 Hz and 100 Hz)
      • Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 107 dB(C) SPL
      • Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) 97 dB(C) SPL (full range)
      • 104 dB(C) SPL (with subwoofer)
      • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 88 / 93 dB(C) SPL (full range)
      • 89 / 94 dB(C) SPL (with subwoofer)
      • Electronics
      • Electronics:
      • Woofer amplifier,
      • cont.(peak) output power* 50 W (80 W)
      • Tweeter amplifier,
      • cont.(peak) output power* 50 W (80 W)
      • Controller design Analog, active
      • Crossover Frequency 2.0 kHz
      • Crossover Slope (dB/oct.) 24, 4th order
      • Equalization - Bass 0, -2.5, -5, -7.5 dB
      • Equalization - Mid 0, -1.5, -3, -4.5 dB
      • Equalization - High +1, 0, -1, -2 dB
      • Protection circuitry Limiter: low, high
      • Infrasonic filter frequency; slope 30 Hz; 6 dB/oct.
      • Analog Input
      • Impedance, electrically balanced
      • 10k Ohms in position 94/108 dB SPL at 1 m
      • 20k Ohms in position 100/114 dB SPL at 1 m
      • Input gain control (sensitivity) 0 dBu to -15 dBu
      • Output level control 94, 100, 108, 114 dB SPL
      • CMRR >56 dB @ 15 kHz
      • Maximum input level 24 dBu
      • Displays and indicators - power on Neumann logo "White"
      • Displays and indicators - limit/clip Neumann logo "Red"
      • Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz
      • Power consumption - Idle 20 W
      • Power consumption - Full output AC 200 W
      • Mechanics:
      • Cabinet surface finish, color: custom Painted aluminium, Anthracite (RAL 7021)
      • Powder-coated aluminium, White (RAL 9016)
      • Operating conditions +10° C to +40° C (+50° F to +104° F),
      • <90% RH, non-condensing
      • Transport/storage conditions -25° C to +70° C (-13° F to 158° F),
      • <90% RH, non-condensing
      • Drivers Magnetically shielded
      • Woofer 130 mm (5.25")
      • Tweeter 25 mm (1")
      • Mounting points 2 x M8 on rear panel
      • Height x width x depth, mm (inches) 277 x 182 x 220 mm (10 7/8" x 7 1/8" x 8 5/8")
      • Internal net volume / external volume 6.5 liters / 9.7 liters
      • Weight 6.4 kg (14.1 lbs)
