Neumann KH 310 R 3-Way Active Near-Field Reference Monitor - Right
  • Neumann KH 310 L 3-Way Active Near-Field Reference Monitor - Left
  • Neumann KH 310 L 3-Way Active Near-Field Reference Monitor - Left
  • Neumann KH 310 L 3-Way Active Near-Field Reference Monitor - Left

Questions? Ask a Markertek Expert:
800-522-2025 Email

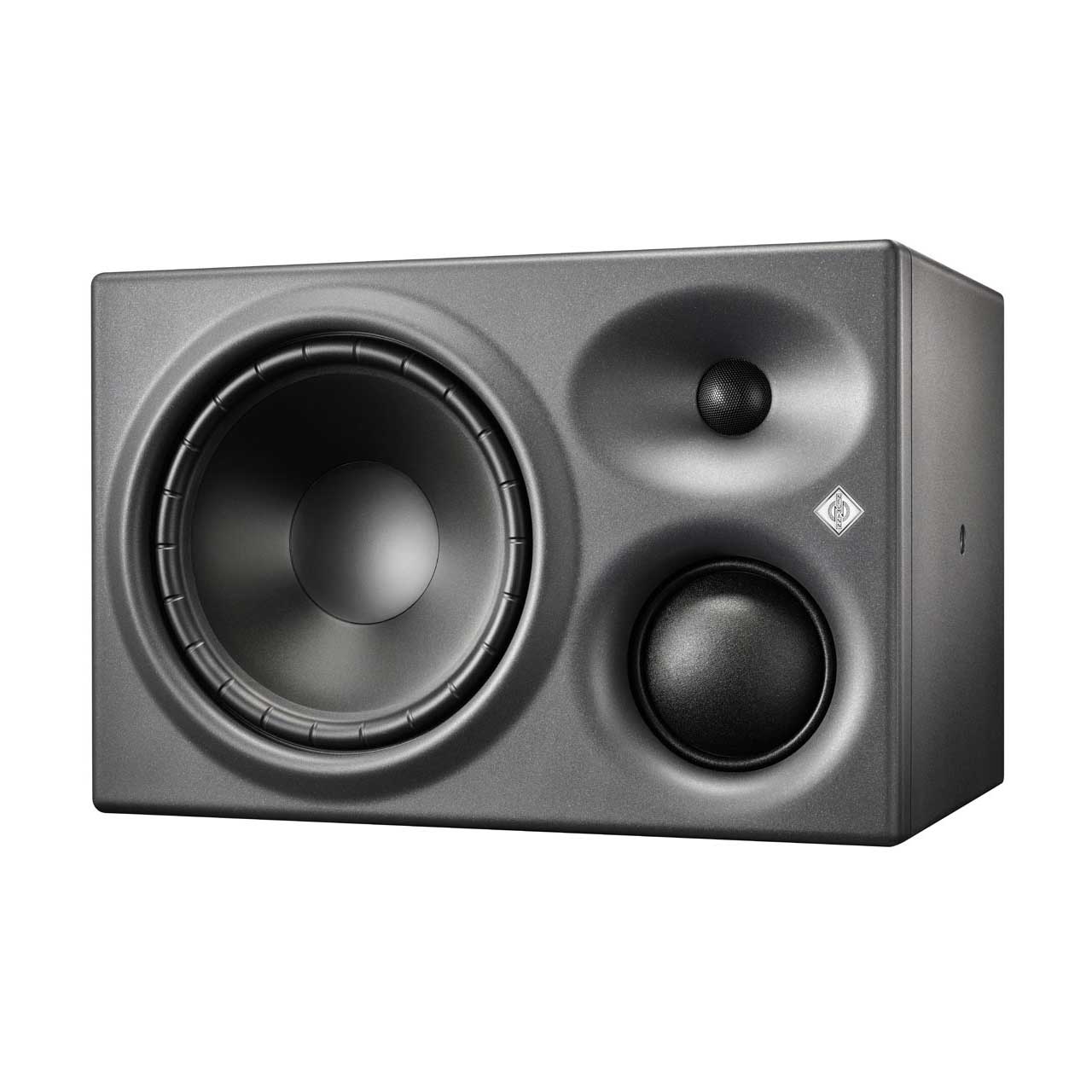

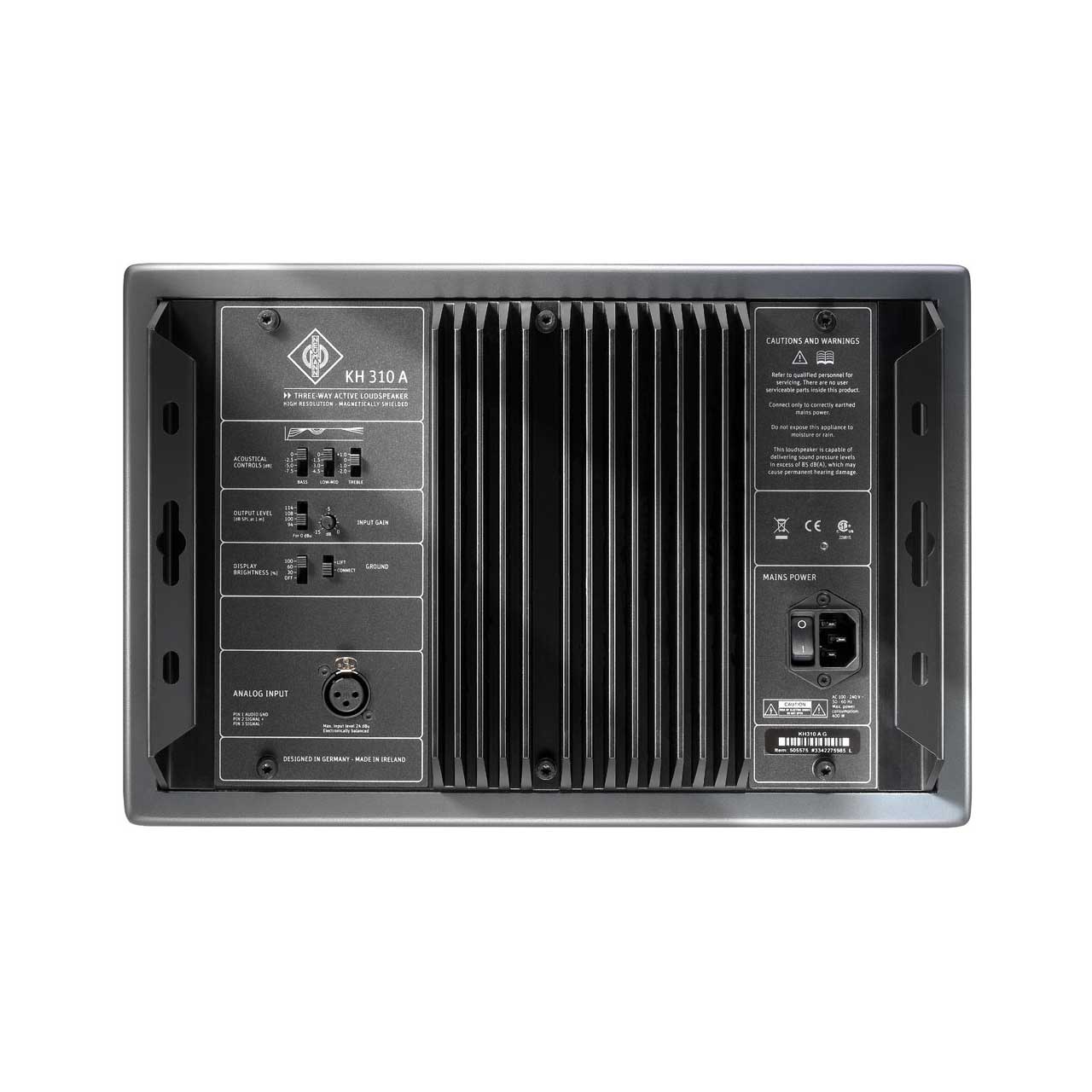

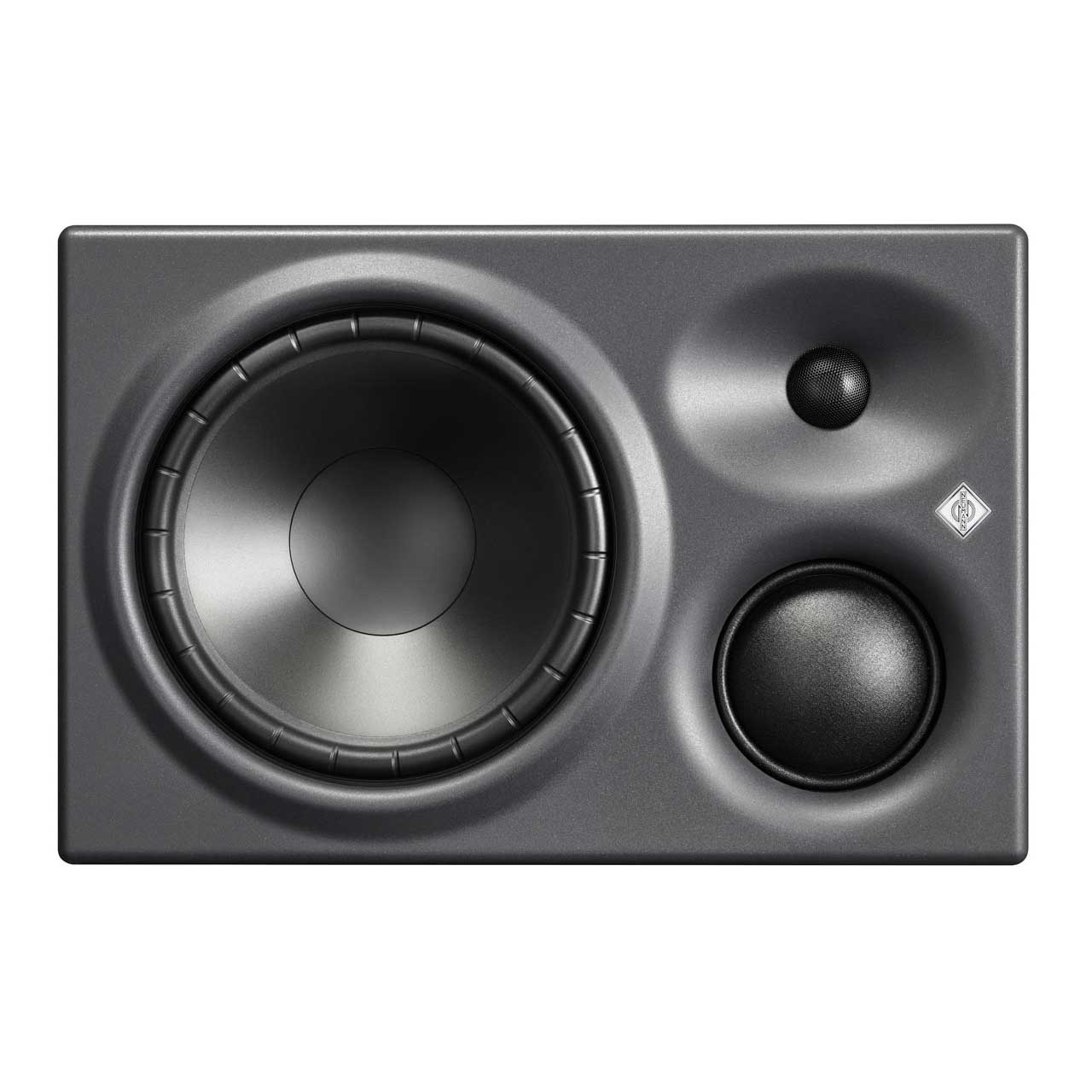

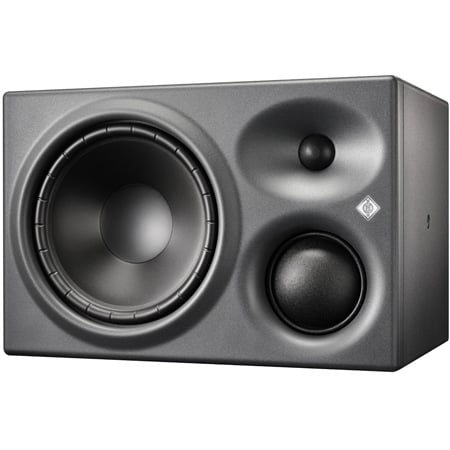

Neumann KH 310 R 3-Way Active Near-Field Reference Monitor - Right

Manufacturer: Neumann

Item #: NEUM-KH310R   •   MFG #: NEUM-KH310R








Models:





Share!





The KH 310 three-way active tri-amplified monitor features a Mathematically Modeled Dispersion Waveguide (MMD), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 310 is designed for use as a near-field monitor, as a front loudspeaker in mid-sized multi-channel systems, or as a rear loudspeaker in a larger multi-channel system. It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.


  • Features

    • Powerful alloy fabric dome
    • Low-distortion high-frequency reproduction
    • Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion
    • Smoother off-axis response,
    • More forgiving of diverse acoustical environments
    • Freedom of movement across the mixing console
    • Reduces reflections off the mixing console
    • New in-house simulated drivers
    • Latest modeling techniques used to minimize non-linear (intermodulation) distortion
    • Fabric dome, neodymium magnet, midrange driver
    • Dedicated driver reproduces important midrange frequencies, which is especially important for speech and vocals
    • Light weight dome has better transient response and less breakup modes than cone designs
    • High power magnet reduces harmonic and intermodulation distortion
    • Long throw composite sandwich cone bass driver with Extremely Linear Force Factor (ELFF) and ribbed surround
    • Damping of break-up modes and low distortion at high sound levels
    • Linear pistonic motor gives a very low harmonic distortion even at high excursions
    • Reduced radial break-up modes on the ribbed surround
    • Two-color + dimmable Neumann logo
    • Displays operation status and activation of the extensive protection system
    • Dimmable for low lighting level conditions or behind the screen applications
    • Compact sealed three-way cabinet design (magnetically shielded)
    • No standing wave resonances
    • Fastest bass transient response
    • Reduced intermodulation distortion in midrange
    • One-piece front panel with no discontinuities
    • Reduced diffraction and smoother frequency response
    • Powerful analog class AB amplifiers with large headroom
    • Improved transient response
    • Independent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils. Woofer soft clip and excursion limiters
    • Fast acting, high reliability and allows extraction of the maximum performance from the system
    • Production consistency due to individual hand-alignment in final test
    • Any KH 310 is "pair-matched" to any other KH 310
    • 4-position bass, low-mid and treble acoustical controls
    • More control in diverse acoustical environments
    • Wide range input gain and output level controls
    • Easier interfacing with signal sources
    • Ground lift
    • Reduced noise in electrically noisy environments and over-comes ground loops
    • Universal switched-mode power supply (100 . 240 V)
    • One version works in any country and robust to poor quality mains supply
    • Extensive mounting hardware options
    • Stylish soft carry bag with space for cables
    • Robust wooden flight case

  • Specifications

    • Acoustics:
    • Free field frequency response 34 Hz - 21 kHz, ± 3 dB
    • Pass band free field frequency response 36 Hz - 20 kHz, ± 2 dB
    • Self-generated noise
    • (with input gain set to 100 dB for 0 dBu) < 20 dB(A) at 10 cm
    • Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m > 85 Hz
    • Max. SPL in full space / calc. in half space
    • at 3% THD at 1m 110.3 / 116.3 dB SPL
    • (averaged between 100 Hz and 6 kHz)
    • Bass capability: Max. SPL in half space
    • at 3% THD at 1m 104.5 dB SPL
    • (averaged between 50 Hz and 100 Hz)
    • Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 113 dB(C) SPL
    • Max. short term SPL with music material
    • at 2.3 m, in typical listening conditions (pair) 100 dB(C) SPL (full range)
    • 107 dB(C) SPL (with subwoofer)
    • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 93 / 99 dB(C) SPL (full range)
    • 94 / 100 dB(C) SPL (with subwoofer)
    • Electronics:
    • Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power* 150 W (210 W) / 70 W (90 W) / 70 W (90 W)
    • Controller design Analog, active
    • Crossover frequencies 650 Hz / 2 kHz
    • Crossover slope 24 dB/oct, 4th order
    • Equalization - Bass 0, -2.5, -5, -7.5 dB
    • Equalization - Low Mid 0, -1.5, -3, -4.5 dB
    • Equalization - Treble +1, 0, -1, -2 dB
    • Protection circuitry Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters
    • Infrasonic filter - frequency; slope 15 Hz; 6 dB/oct
    • Input XLR, analog electronically balanced
    • Impedance, electrically balanced > 13k Ohms
    • Input gain control (sensitivity) 0 dBu to -15 dBu
    • Output level control 94, 100, 108, 114 dB SPL
    • CMRR > 56 dB @ 100 - 15 kHz
    • Max. input level +24 dBu
    • Displays and indicators - power on Neumann logo "White"
    • Displays and indicators - limit / clip Neumann logo "Red"
    • Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz
    • Power consumption - idle 24 W
    • Power consumption - full output 300 W
    • Mechanics:
    • Cabinet surface finish, colour Painted wood and polyurethane,
    • Anthracite (RAL 7021).
    • Aluminum electronics panel, Black.
    • Baffle cover Optional removable metal grille
    • Operating conditions +10° C to +40° C (+50° F to +104° F),
    • <90% RH, non-condensing
    • Transport/storage condition -25° C to +70° C (-13° F to 158° F),
    • <90% RH, non-condensing
    • Drivers Magnetically shielded
    • Woofer 210 mm (8 1/4")
    • Midrange 75 mm (3")
    • Tweeter 25 mm (1")
    • Mounting points 2 x M8 on side panels, depth from outside of cabinet 25 mm (1").
    • Rear panel screws for attaching LH 41 base plate.
    • Rear panel bracket.
    • Product dimensions
    • (height x width x depth), mm (inches) 253 x 383 x 292 mm
    • (10" x 15 1/8" x 11 1/2")
    • Net volume, internal / external 16.2 liters / 28.3 liters
    • Product weight 13.0 kg (28 lbs 11 oz)
    • Packed dimensions
    • (height x width x depth), mm (inches) 590 x 380 x 360 mm
    • (23 1/4" x 15" x 14 1/8")
    • Packed weight and cube 16.8 kg (37 lbs 1 oz), 0.081 m3
