Tripp Lite OmniSmart 500 VA 300W Interactive UPS Backup System

ITEM #: OMNISMART 500 MFG #: OMNISMART500PNP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$387.50

Our Price:

$281.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    OMNISMART500PNP - Overview

    Tripp Lite's OMNI SMART 500 line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Supports entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 volts and overvoltages as high as 147 back to normal 120V levels without consuming battery power. Offers complete desktop power protection in an attractive black upright tower configuration. Includes 3 battery supported outlets for computer, monitor and one vital system peripheral, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure. USB cabling included. PowerAlert software available via download. HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in dataline protection jacks offer protection of a single dialup phone/DSL line. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and overload status. 500VA/300 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4 minutes battery runtime with a full load of 500VA/300 watts and 14.6 minutes with a half load of 250VA/150 watts. Supports battery replacement via built-in access panel.

    • Features:

      • OmniPro Series Line Interactive UPS Systems Basic line interactive UPS systems (software and cabling are not included) $50,000 Ultimate Lifetime Insurance Omnismart(R) PNP Series Line Interactive UPS Systems New OmniSmart PNP UPSs are the single box solution for supporting Windows 95 Plug and Play as well as Novell, Windows NT, OS/2 and SNMP Each includes a UPS, complete software and cable OmniSmart UPSs combine line interactive technology with our new microprocessor controlled standby UPS design to keep your network equipment working through extended brownouts without draining battery power All feature multioperational status LED's including battery replace and voltage correction $50,000 Ultimate Lifetime Insurance(R)

    • Specifications:

      • Output
      • Output Volt Amp Capacity (VA): 500
      • Output Watt Capacity (Watts): 300
      • Nominal Voltage Details: 115v nominal output in battery mode
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line Mode): -18%, +8%
      • Output Voltage Regulation (Battery Mode): +/- 5%

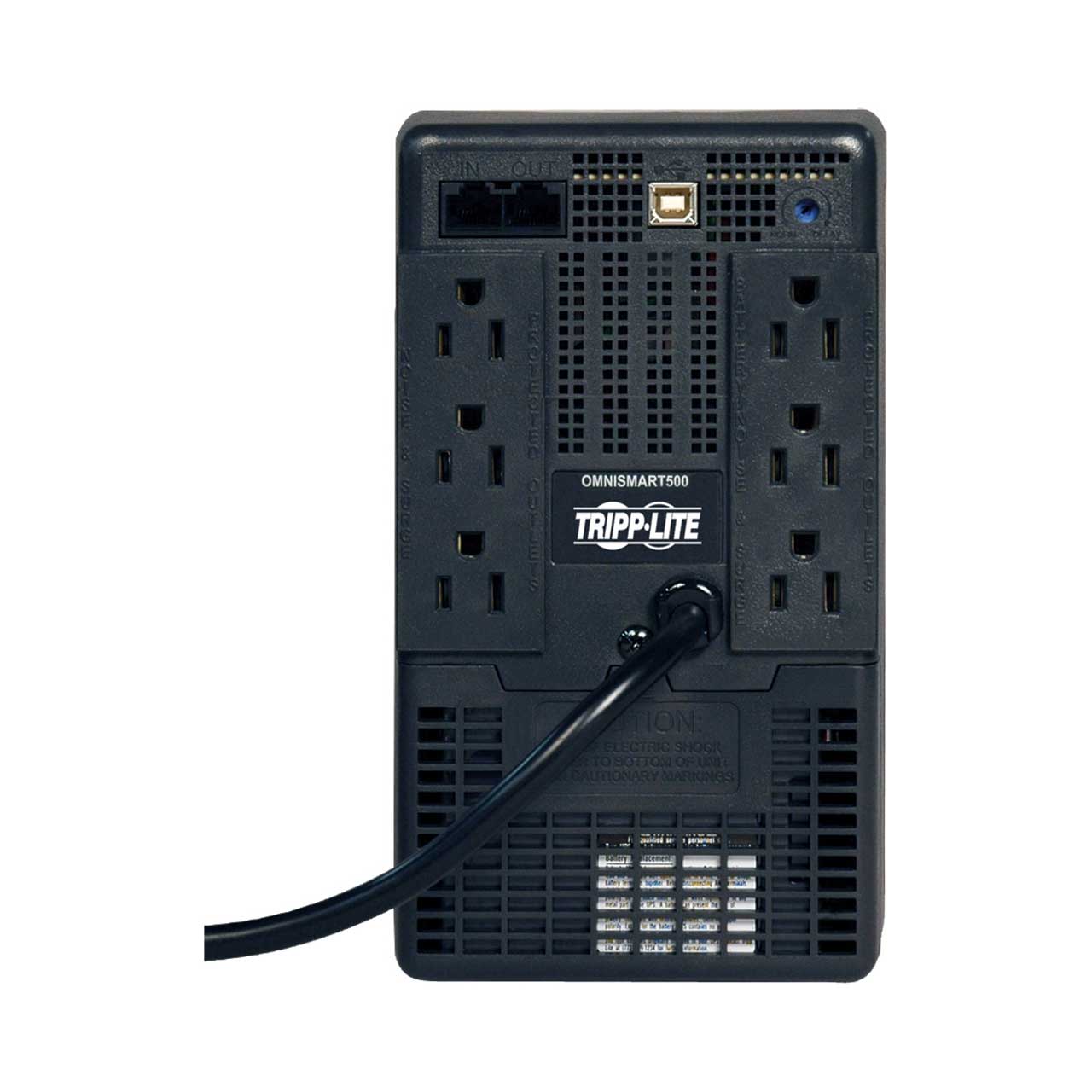

      • UPS Output Receptacles (Surge Suppression Only): 3 UPS outlets, 3 surge-only outlets
      • Hot-Swap PDU options: PDUB15 (2U / 8 5-15R outlets)
      • Output AC Waveform (AC Mode): Sine wave
      • Output AC Waveform (Battery Mode): PWM sine wave
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Output Receptacles: (6) 5-15R
      • Individually Controllable Load Banks: No

        Input
      • Rated input current (Maximum Load): 12A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-15P; Right-Angled
      • UPS Input Cord Length (ft.): 6
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase

        Battery
      • Full Load Runtime (min.): 4 min. (300w)
      • Half Load Runtime (min.): 14.6 min. (150w)
      • DC System Voltage (VDC): 12
      • Battery Recharge Rate (Included Batteries): Less than 3.6 hours from 10% to 90%
      • Internal UPS Replacement Battery Cartridge: RBC51
      • Battery Access: Battery access door
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Expandable Runtime: No

        Voltage Regulation
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
      • Overvoltage Correction: Input voltages between 128 and 147 are reduced by 12%
      • Undervoltage Correction: Input voltages between 93 and 107 are boosted by 14%
      • Severe Undervoltage Correction: Input voltages between 75 and 92 are boosted by 30%

        User Interface, Alerts & Controls
      • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
      • Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
      • Audible Alarm: Audible alarm indicates power-failure and low-battery conditions

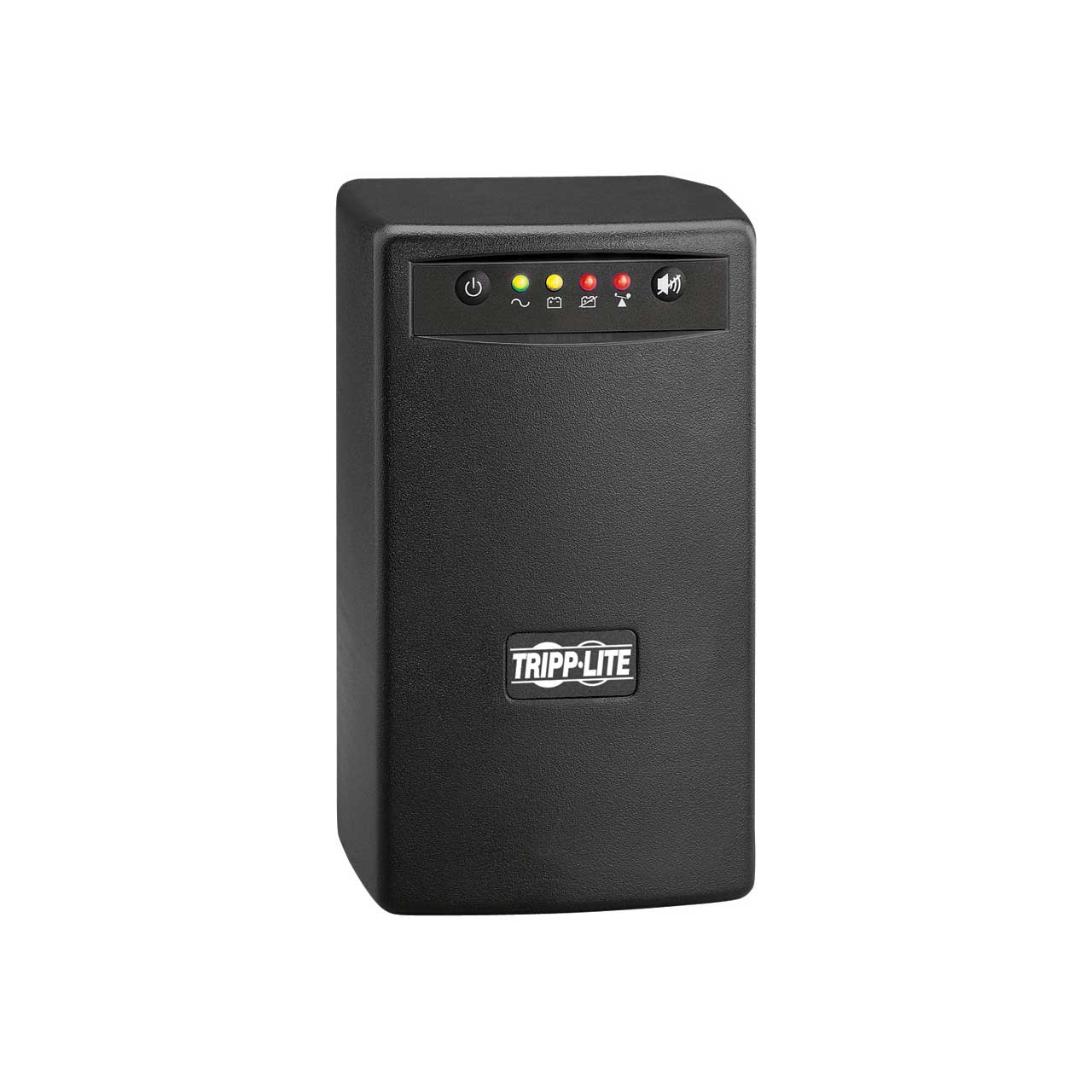

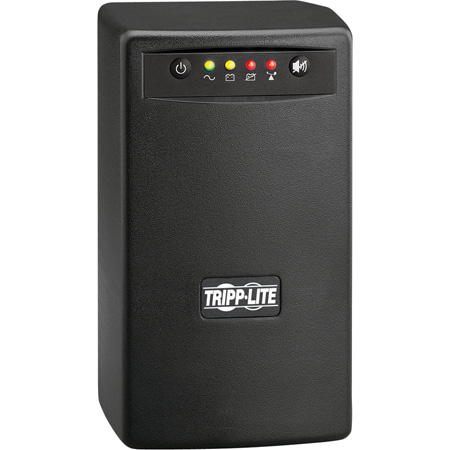

      • LED Indicators: 4 LEDs indicate line power, battery power, overload and battery low/replace status

        Surge / Noise Suppression
      • UPS AC Suppression Joule Rating: 480
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
      • EMI / RFI AC Noise Suppression: Yes
      • AC Suppression Joule Rating: 480
      • AC Suppression Response Time: Instantaneous
      • Dataline Suppression: 1 line TEL / DSL or 10Base T Ethernet protection

        Physical
      • Installation Form Factors Supported with Included Accessories: Tower
      • Installation Form Factors Supported with Optional Accessories: Wallmount ( UPSWM - tower mounting kit)
      • Primary Form Factor: Tower
      • Primary UPS Depth (mm): 178
      • Primary UPS Height (mm): 216
      • Primary UPS Width (mm): 127
      • Shipping Dimensions (hwd / in.): 9.20 x 7.80 x 12.20
      • Shipping Weight (lbs.): 14.10
      • UPS Housing Material: PVC
      • UPS Power Module Dimensions (hwd, in.): 8.5 x 5 x 7
      • UPS Power Module Weight (kg): 5.44
      • UPS Power Module Weight (lbs.): 12

        Environmental
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 53
      • AC Mode Efficiency Rating (100% Load): 95%

        Communications
      • PowerAlert Software: For local monitoring via the UPS's built-in USB port
      • Communications Cable: USB cable included
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Network UPS Tools Compatibility: NUT compatible.
      • Communications Interface: USB (HID enabled)

        Line / Battery Transfer
      • Transfer Time: 2-4 milliseconds
      • Low Voltage Transfer to Battery Power (Setpoint): 75
      • High Voltage Transfer to Battery Power (Setpoint): 147

    • GTIN:

      0037332034137
