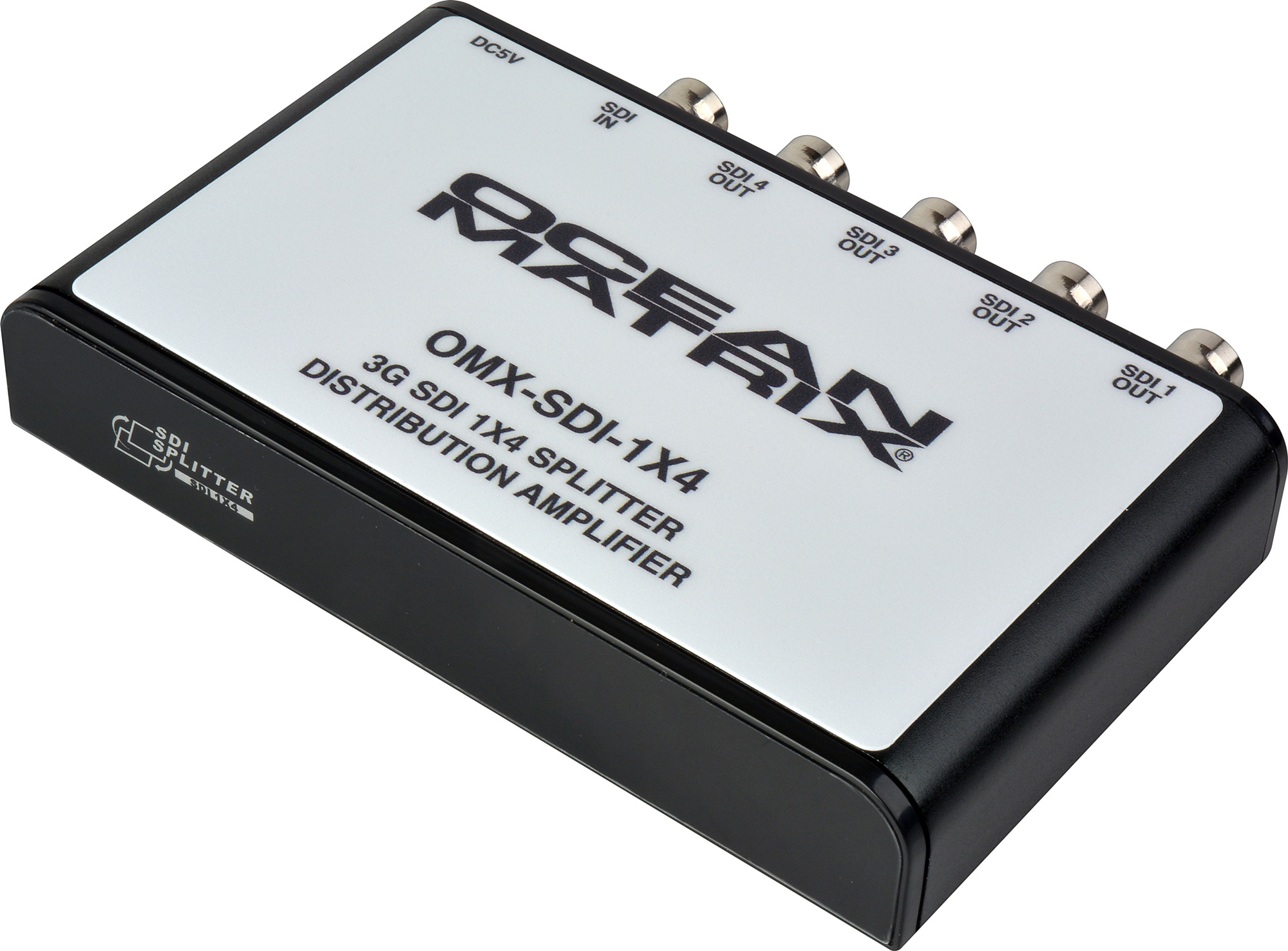

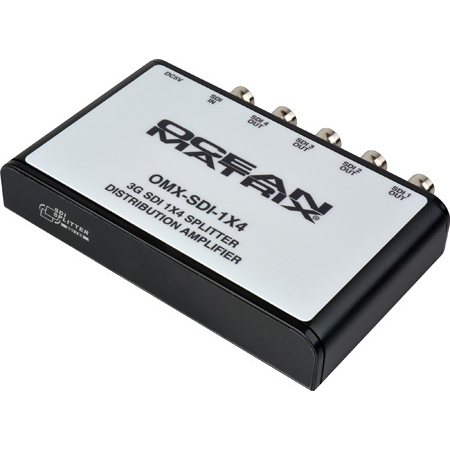

Ocean Matrix OMX-SDI-1X4 3G SDI 1x4 Splitter / Distribution Amplifier

Manufacturer: Ocean Matrix

Item #: OMX-SDI-1X4   •   MFG #: OMX-SDI-1X4



List Price:$199.95
Our Price:$189.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    Drive four (4) displays or recorders simulatneously with the Ocean Matrix 3G-SDI 1x4 splitter/DA. The OMX-SDI-1X4 accepts a single 3G-SDI input and reclocks and equalizes the signal to 4 identical outputs for real-time multi-viewing, video distribution and additional monitoring feeds.

    The 4 outputs of the OMX-SDI-1X4 all support SD-SDI(270Mbps), HD-SDI(1.485Gbps)and 3G-SDI(2.97Gbps) to cover all of your video format distribution needs. The unit can drive output distances of up to 400 meters for SD-SDI signals, 200 meters for HD-SDI signal and 100 meters for 3G-SDI signal.


    • Features

      • Supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI(2.97Gbps)
      • 4 simultaneous SDI outputs
      • Equalized & re-clocked transmission and support signal input
      • Output distances of up to 400 meters for SD-SDI, 200 meters for HD-SDI and 100 meters for 3G-SDI signal
      • DC5V-30V Voltage Input - great for field applications
      • SDI Signal Auto-Detect
      • SDI input/output: [email protected], [email protected], [email protected]/25/30/50/60Hz
      • 5VDC/1A Power Supply with 2.1mm Plug (center pin hot)

    • Item Includes

      • OMX-SDI-1X4 Unit

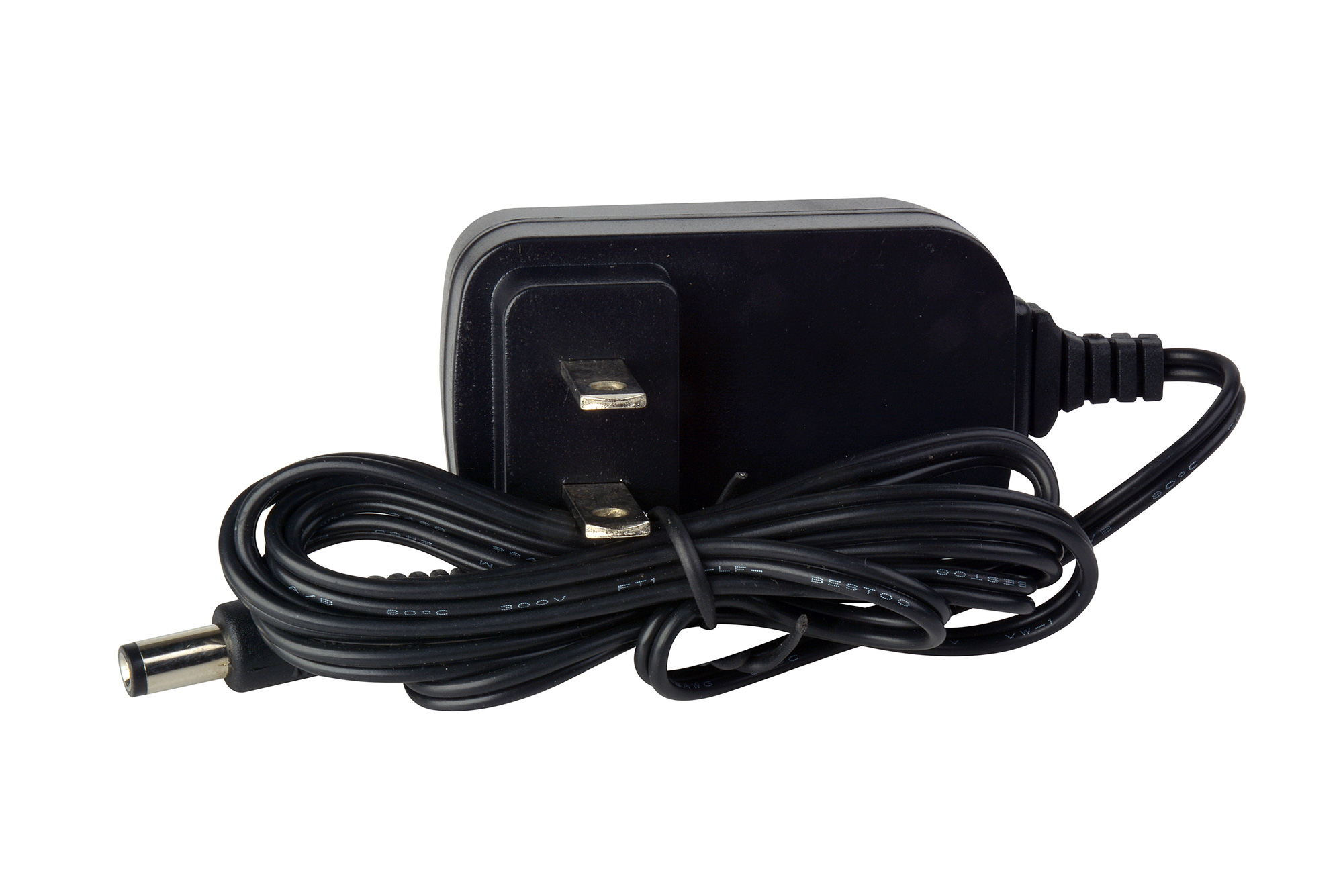

      • Power Supply 5VDC/1A
      • User Manual
