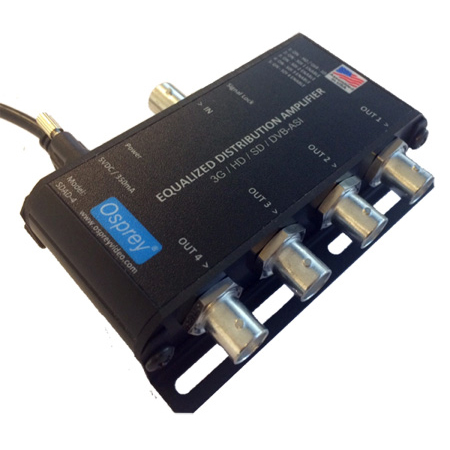

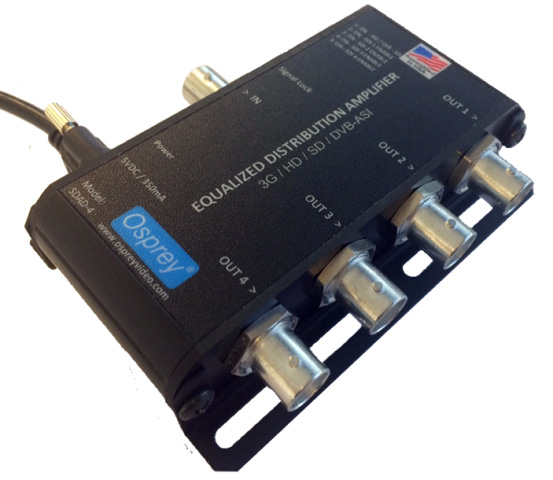

Osprey SDAD-4 1x4 USB Powered Equalized SDI Distribution Amplifier with DVB-ASI

ITEM #: OSPREY-SDAD-4 MFG #: 97-11004

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OSPREY-SDAD-4

97-11004 - Overview

This Osprey SDI distribution amplifier will accept any single link SDI input up to 3G and passes it directly to four outputs while preserving Ancillary Data and Embedded Audio. The amplifier has automatic cable equalization to lessen attenuation over longer runs. Dip switches allow the user to select between SD and HD signals and turn off unused ports to conserve power when running from portable power sources. Powered by USB via a locking connector the SDAD-4 is perfect for streaming workflows.

  • Specifications:

    • Standards Compliance: SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M, DVB-ASI
    • Video Input: 1 x 3G / HD/SD SDI, DVB-ASI (BNC with embedded audio)
    • Outputs: 4 x 3G / HD/SD SDI, DVB-ASI (BNC with embedded audio)
    • Reclocking: None
    • For long cable runs we suggest our reclocking version Osprey SDAR-4 or SDARD-4
    • Cable Equalization (Belden 1694A): 100m at 3G, 200m at HD, 400m at SD
    • LED indicators:
    • Power
    • Signal Lock
    • User Controls:
    • DIP switch allows unused ports to be disabled to conserve power
    • SD/HD Selection
    • Power Connector: Locking Mini B USB
    • Power:
    • +5 VDC @ ~1.8W (all outputs enabled)
    • May be powered by USB charger, PC or portable battery pack (not included)

  • Item Includes:

    • Video Distribution Amplifier, Mounting Brackets, Locking USB Power Cable

  • GTIN:

    0850189006412
