Optical Wavelength Labs KIT-Z2-D285ST-L213ST ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit - ST Option

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Optical Wavelength Labs KIT-Z2-D285ST-L213ST ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit - ST Option

    Item #: OWL-KTZ2D285STL2   •   MFG #: KIT-Z2-D285ST-L213ST



    List Price:$803.00
    Our Price:$698.59

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      The ZOOM 2 / Dual OWL / Laser OWL Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single-mode networks.

      The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM II comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.

      The Dual OWL is a 850/1300nm NIST traceable multimode light source. Its dual wavelength outputs are temperature stabilized for accurate measurements. The Dual OWL has two connector options: ST or SC.

      The Laser OWL is a NIST traceable singlemode light source. Its dual wavelength outputs (1310nm / 1550nm) are temperature-stabilized for accurate measurements. Three connector options are available (ST, SC, and FC).


      • Features

        • Economical option for quick attenuation and loss testing of both multimode and singlemode networks
        • Easy-to-read 4-digit 7-segment LCD display
        • Store reference values for calibrated wavelengths
        • Intuitive 2-button interface on both units
        • On-screen wavelength, measurement units, and low battery indicator
        • NIST traceable

      • Specifications

        • ZOOM II Optical Power Meter:
        • Detector: InGaAs 1mm
        • Calibrated Wavelengths: 850nm, 1300, 1310nm, 1550nm
        • Measurement Range: +5 to -60 dBm
        • Accuracy*: ±0.15 dB
        • Linearity*: ±0.20 dB
        • Resolution: 0.01 dBm
        • Battery Life: up to 250 hours
        • Operating Temperature: -10 to 55 C
        • Storage Temperature: -30 to 70 C
        • NIST Traceable: Yes
        • Battery Capacity Display: Yes
        • Connector: 2.5mm Universal
        • Width: 2.75"
        • Height: 4.94"
        • Depth: 1.28"
        • Weight: 154g
        • * Over range of 0 to -45dBm

        • Dual OWL Multimode Light Source:
        • Launch Method: LED
        • Connector: ST or SC
        • Center Wavelength (850nm): 850 ±30nm
        • Center Wavelength (1300nm): 1290nm min; 1350nm max
        • Spectral Width (FWHM; 850 nm): 60 nm
        • Spectral Width (FWHM; 1300nm): 170 nm
        • Output Power: -20.0 dBm
        • Initial Accuracy: 0.1 dB
        • Fiber Type: multimode
        • Battery Life: 40 hrs.
        • Battery Capacity Display: Yes
        • Operating Temperature: 0 to 55° C
        • Storage Temperature: 0 to 75° C
        • Width: 2.75"
        • Height: 4.94"
        • Depth: 1.28"
        • Weight: 154g

        • Laser OWL Singlemode Laser Source:
        • Launch Method: FP Laser
        • Connector: ST, SC, or FC
        • Center Wavelength (1310nm): 1310 ±30nm
        • Center Wavelength (1550nm): 1550 ±30nm
        • Spectral Width (FWHM): 2 nm
        • Output Power: -10.0 dBm
        • Initial Accuracy: 0.1 dB
        • Fiber Type: singlemode
        • Battery Life: 25 hrs.
        • Battery Capacity Display: Yes
        • Operating Temperature 0 to 55° C
        • Storage Temperature: 0 to 75° C
        • Width: 2.75"
        • Height: 4.94"
        • Depth: 1.28"
        • Weight: 154g

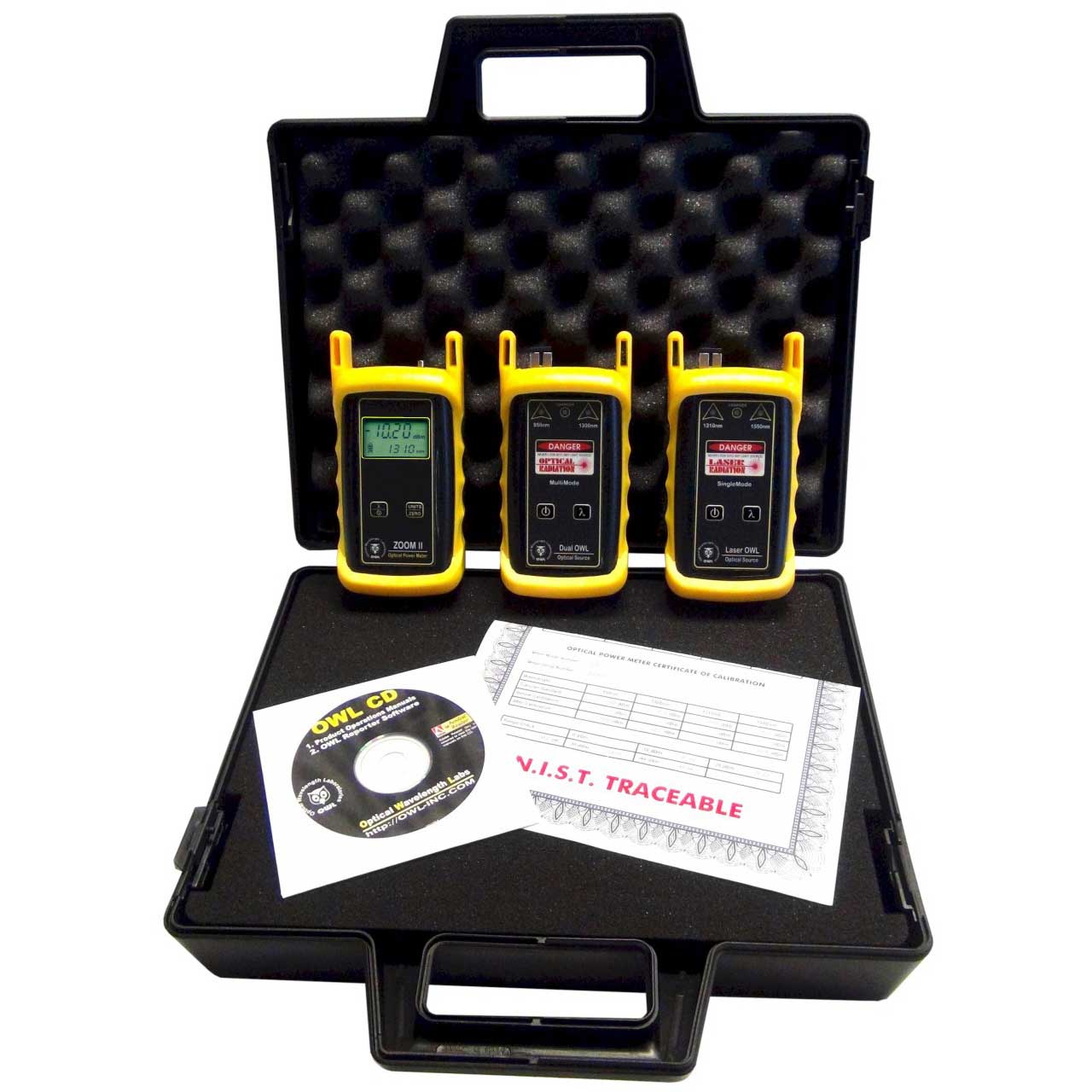

      • Item Includes

        • Power Meter: ZOOM 2
        • Light Source: Dual OWL; Laser OWL
        • Product manuals
        • 9-volt batteries
        • NIST certificate
        • Carrying case
        • Protective rubber boots
