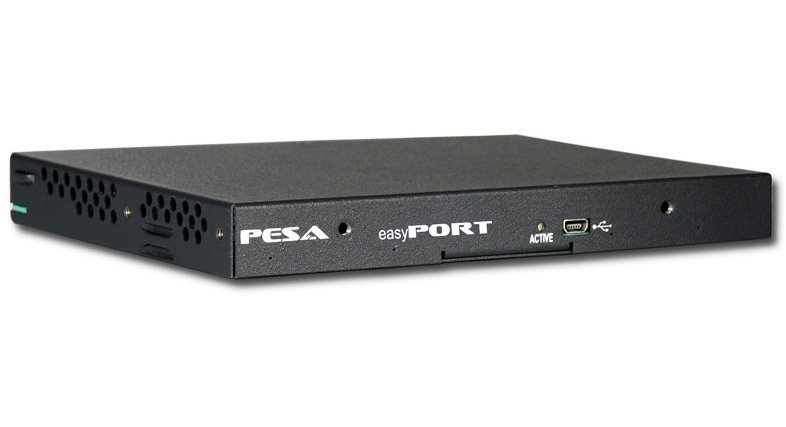

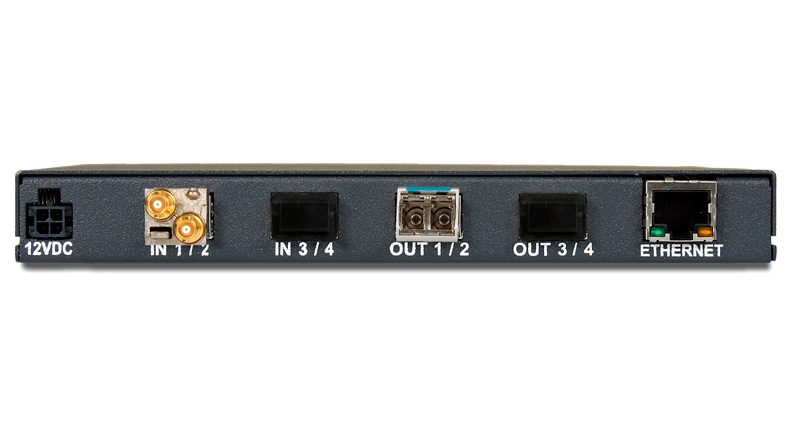

PESA EASY-2ADX2F Easyport - 2 SD Analog In To 2 Fiber Out
  • PESA EASY-2ADX2F Easyport - 2 SD Analog In To 2 Fiber Out
  • PESA EASY-2ADX2F Easyport - 2 SD Analog In To 2 Fiber Out
  • PESA EASY-2ADX2F Easyport - 2 SD Analog In To 2 Fiber Out

Questions? Ask a Markertek Expert:
800-522-2025 Email

PESA EASY-2ADX2F Easyport - 2 SD Analog In To 2 Fiber Out

Item #: PESA-EASY-2ADX2F   •   MFG #: EASY-2ADX2F




Our Price:$2,140.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)


Share!





Required Accessories

    Show More

PESA's easyPORT boxes are multi-format converters that provide a wide range of port options and port density. The easyPORT converters can be configured to support crosspoint switching or conversion for ASI, SDI, HD-SDI, 3G-SDI, HDMI/DVI, and NTSC/PAL. The basic easyPORT includes four SFP type card cages can be populated to fit practically any combination of input and output signals. Each easyPORT comes with a built-in Ethernet port and USB port for easy setup and diagnostics. Up to four easyPORT converters can be loaded in a 1RU frame with support for redundant power. Setup is simple with the supplied GUI interface.


  • Features

    • 2 NTSC/PAL to SDI inputs
    • 2 FIBER: SD-SDI outputs
    • Built-in 2X2 Switch
    • Up to 270Mbps
    • Includes setup software and power supply
    • Network & USB control ports
    • Small size : 6.75 W X .825 H X 6.25 D

  • Specifications

    • CONTROL & INTERFACES
    • Network connection 10/100 RJ-45
    • USB mini-USB port
    • Software Cattrax Network GUI
    • Operates with USB or TCP/IP
    • Switching Built-in 4X4 crosspoint
    • MECHANICAL
    • Size (inches) 6.75 W x .825 H x 6.25 D
    • Size (mm) 171.45mm x 20.96mm x 158.75mm
    • OPTIONS
    • Mounting wall bracket for a single chassis
    • 1RU rack mount holds four modules
    • includes power supply and power cables

  • Item Includes

    • EasyPort Extender/Converter
    • 1 NTSC/PAL input SFP
    • 1 SD/HD/3G fiber output SFP
    • 2 high density BNC to standard BNC adapter cable
    • Power supply
    • Software included
    • 1 year warranty
