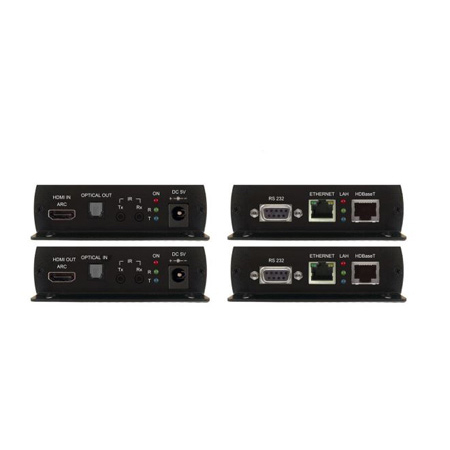

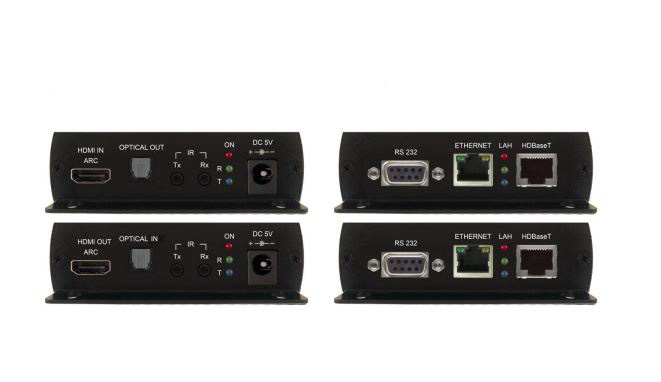

PureLink HTR Tx/Rx Transmitter/Receiver Kit HDTools HDMI RS-232 IR ARC (1) Ethernet over CATx (HDBaseT) - Ultra HD

HTR TX/RX - Overview

• Features:

  • Zero loss & Zero noise delivery of digital high definition video and audio signal using UTP connection, HTR delivers HD signals over CAT5/6/7-type cables without loss or digital interference maintaining the clarity and colors. Noise cancellation and error correction logic enhances HDMI video and audio signals over long distance.
  • Compact and Robust enclosure design allows for discreet installation behind a flat-panel display.
  • Designed based on HDBaseT Technology, supporting support Deep Color and full 3D support plus DTS-HD and Dolby TrueHD over a single low cost CATx interface with up to 330ft (100m) at Ultra HD (4K) or 1920x1200 resolution.
  • Uncompressed high definition video up to 4K2K@30Hz@48bits and 3D.
  • Controls signals including bi-directional RS-232 and IR function.
  • Bi-Directional RS232 interface - commands and data can flow in both directions via RS232, allowing status requests and control of the destination unit.
  • Max. Data Rate- 10.2 Gbps.
  • HDCP (High-bandwidth Digital Content Protection) Support.
  • HDMI version 1.4 Support.
  • Audio transmission support LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA.
  • Support 10/100Mbps network, allow to connect the network TV or another internet devices.
  • ARC (Audio Return Channel) Support to send audio data "upsteam" to an A/V receiver or surround audio controller.


• Specifications:

  • Transmitter:
  • Model: HTR Tx
  • Input type: HDMI, 1 port/ IR, 1 port/ RS232, 1 port (bi-direction)/ Ethernet, 1 port (bi-direction)
  • Output type: Toslink optical out, 1 port/ IR, 1 port/ CATx (HDBaseT), 1 port
  • Supporting Display Resolutions: VGA ~WUXGA(up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, Ultra HD (4K) @ 30Hz
  • Max. Distance: 1920x1200 @ 60Hz or Ultra HD (4K) @30Hz: 330ft (100m)
  • Connector Type: DC Power Jack, HDMI 19 Pin Female (Type A), RJ-45, IR, Serial, Toslink
  • Conformations: HDMI version 1.4 With HDCP
  • Power Rating: DC 5V , 2A
  • Dimension (WxDxH): 3.5'' x 4.7'' x 1.2'' (88 x 120 x 30 mm)
  • Weight: 0.57 lbs (0.26 kg)

    Receiver:

  • Model: HTR Rx
  • Input type: CATx (HDBaseT), 1 port/ IR, 1 port/ Toslink optical in, 1 port
  • Output type: HDMI, 1 port/ IR, 1 port/ RS232, 1 port (bi-direction)/ Ethernet, 1 port (bi-direction)
  • Supporting Display Resolutions: VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, Ultra HD (4K) @ 30Hz
  • Max. Distance: 1920x1200 @ 60Hz or Ultra HD (4K) @30Hz: 330ft (100m)
  • Connector Type: DC Power Jack, HDMI 19 Pin Female (Type A), RJ-45, IR, Serial, Toslink
  • Conformations: HDMI version 1.4 With HDCP
  • Power Rating: DC 5V , 2A
  • Dimension (WxDxH): 3.5'' x 4.7'' x 1.2'' (88 x 120 x 30 mm)
  • Weight: 0.62 lbs (0.28 kg)


• Item Includes:

  • 1 x HTR Transmitter Module
  • 1 x HTR Receiver Module
  • 2 x Power adapter
  • 1 x User Manual


• Warranty:

  • 2 Years
