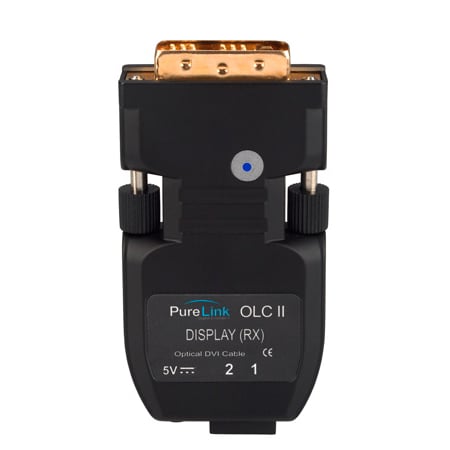

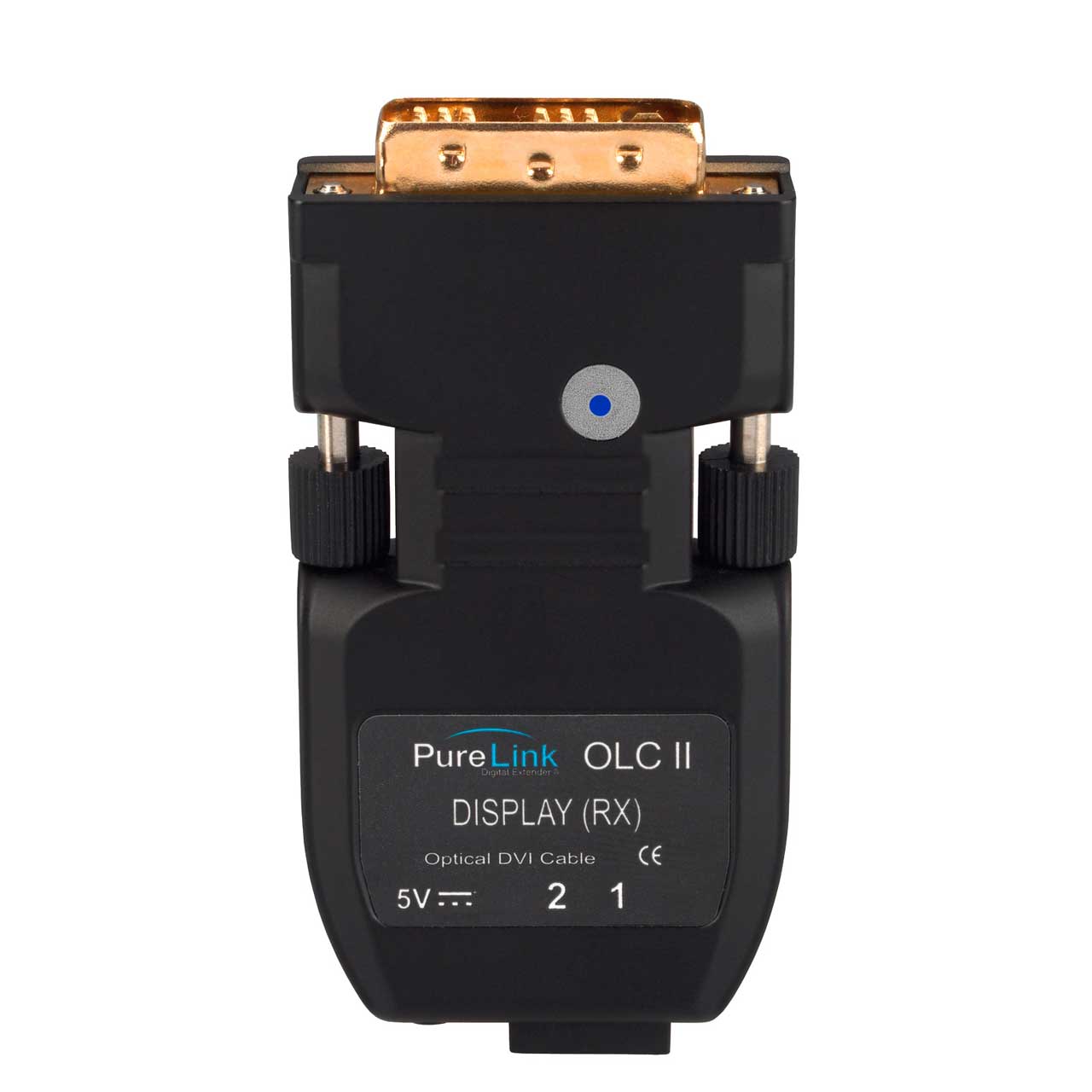

PureLink OLC II Tx/Rx DVI to 2 LC Fiber Transmitter/Receiver Kit
  • PureLink OLC II Tx/Rx DVI to 2 LC Fiber Transmitter/Receiver Kit
  • PureLink OLC II Tx/Rx DVI to 2 LC Fiber Transmitter/Receiver Kit
  • PureLink OLC II Tx/Rx DVI to 2 LC Fiber Transmitter/Receiver Kit
  • PureLink OLC II Tx/Rx DVI to 2 LC Fiber Transmitter/Receiver Kit

Questions? Ask a Markertek Expert:
800-522-2025 Email

PureLink OLC II Tx/Rx DVI to 2 LC Fiber Transmitter/Receiver Kit

Manufacturer: PureLink

Item #: PLK-OLC-II-TX-RX   •   MFG #: OLC II TX/RX




Our Price:$799.99

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





PureLink’s new OLC II DVI Pure Fiber Optic Extension Modules extend 1080p HD content up to 6500 feet over a single-mode and up to 1,640 ft over a multi-mode cable. Featuring PureLink’s unique Auto-EDID feature, a separate DDC connection is no longer necessary. This simplifies cable management and ensures rapid communications between devices.
The transmitter and receiver are detachable and housed in exceedingly compact DVI enclosures. Since it is a detachable type, the LC fiber cable can be run through small conduits and other tight spaces without extender set. There is no special mounting needed for OLC II. Simply, the transmitter and receiver units connect directly to video source and monitor.
The OLC II is ideal for a waide rangeof applications requiring long distance transmission of HD video content. Since it only uses fiber, transmission of content is highly secure and immune to outside interference. It is an ideal product for government, military, school and medical environments. When it comes to moving DVI content over large areas, nothing beats a PureLink.


  • Features

    • Plug and Play
    • Built-in auto EDID management
    • function
    • Video signal extends up to 6500ft
    • Support Single Mode and
    • Multi Mode
    • Fully compatible with DDWG
    • DVI standard
    • Ideal solution for PC application
    • No HDCP

  • Specifications

    • Fiber optical cabling between transmitter and Receiver
    • Type / Number of fiber : 2 Strand fiber optic cable, 50/125 µm or 62.5/125 µm multimode & singlemode
    • Connector : 2 Female LC connectors
    • Operating distance : Up to 6,600 ft ( 2000m ) singlemode / up to 1,650 ft ( 500m ) multimode
    • NOTE: Operating distance is approximate. This is a typical distance. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, bandwidth, connector splicing, losss, bend radius and environmental factors.
    • Nominal peak wavelength : 850 nm (Multimode) 1310nm (Singlemode)
    • Transmission power
    • Singlemode : -5 dBm, typical
    • Multimode : -5 dBM, typical
    • Maximum receiver sensitivity
    • Singlemode : -17 dBm, typical
    • Multimode : -11 dBm, typical
    • Optical loss budget
    • Singlemode : 12 dB, Max
    • Multimode : 8 dB, Max
    • Video
    • Maximum Channel Data Rate : 1.65 Gbps per color
    • Pixel clock : 165 MHzz
    • Supported resolution : Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 6,600ft) Singlemode
    • Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 1,650ft) Multimode
    • Formats : RGB & YCbCr digital
    • Standard : DVI 1.0
    • Video connector - Transmitter & Receiver
    • Signal Type : Single link DVI-D
    • Connector : Female DVI-D
    • General Information
    • Power supply : Ext. adapter - Input: 100-240 VAC, 50-60 Hz, Output: 12VDC, 1A, 5 watts(max)
    • NOTE: Both transmitter and receiver extender need to be powered locally by provided external power supply adapter.
    • Power consumption
    • Tramsmitter : 1 watt
    • Receiver : 1 watt
    • Cooling ; Convection
    • Dimension (W x D x H) : 1.6'' x 0.4'' x 2.8'' (40 x 10 x 71 mm)
    • Weight ; 0.33 lbs (0.15 kg)
    • NOTE: All nominal levels are at ± 9%
    • NOTE: Specifications are subject to change with or without notice.

  • Item Includes

    • OLC II Transmitter Module : 1 EA
    • OLC II Receiver Module : 1 EA
    • DC 5V, 1A Power Adapter : 2 EA
    • User's Manual : 1 EA
