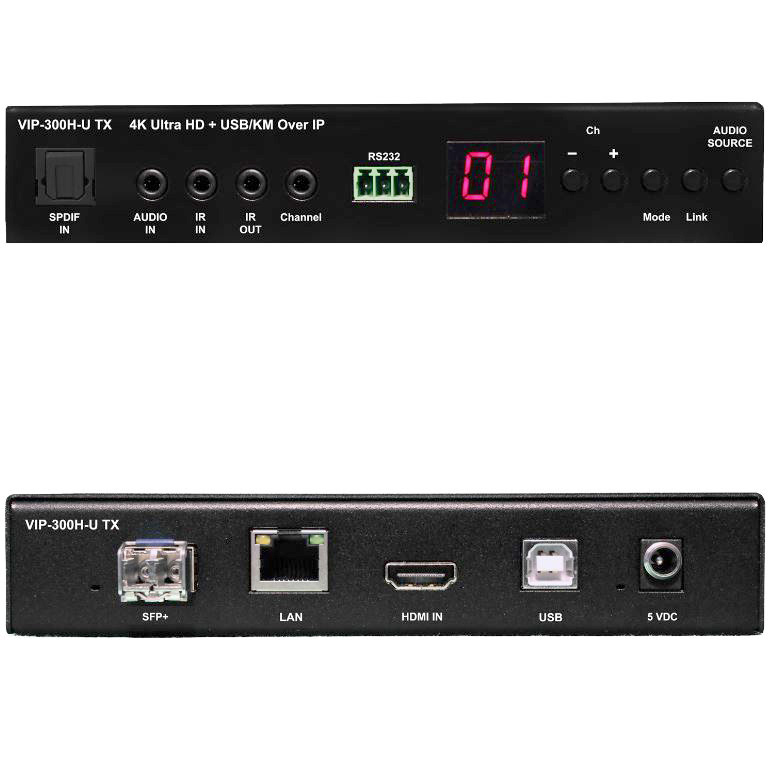

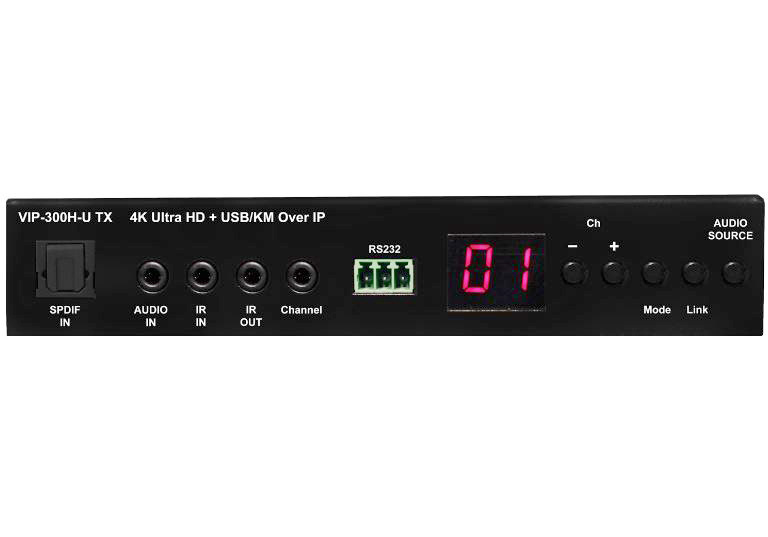

PureLink VIP-300H-U-Tx UltraHD 4K HDMI & USB/KM over IP Transmitter (Encoder)

ITEM #: PLK-VIP-300H-UTX MFG #: VIP-300H-U-TX

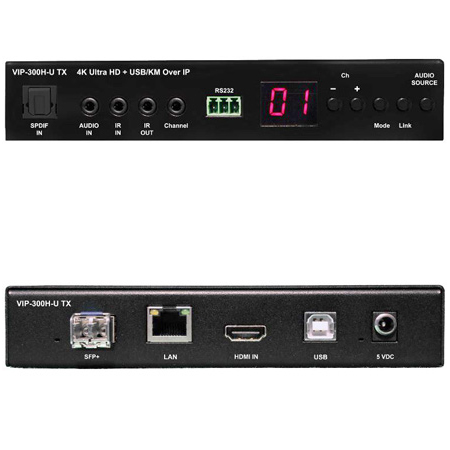

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLK-VIP-300H-UTX

VIP-300H-U-TX - Overview

The VIP-300H-U UltraHD 4K HDMI & USB/KM over IP Distribution System provides UltraHD/4K video, audio, RS-232, IR, and USB distribution and matrix switching capabilities over IP networks. The VIP300H-U can be used as a point-to-point extension system supporting distances up to 390 feet (120 meters), as well as multi-signal distribution, switching, and matrix switching system using the VPX IP Video Management Software. The VIP300H-U brings to market the only IP Video system that offers reliable signal transmission across CAT or Fiber networks. The VIP-300H-U also features convenient setup functions allowing users to easily configure video wall displays up to an 8x8 configuration. The VIP-300H-U supports embedded HDMI, analog, and SPDIF audio and can be powered from 802.3af or higher compliant network switches.

The PureStream VIP (Video over IP) product line offers feature-rich, easy to operate solutions to manage the distribution of audio, video, and more over standard IP networks. PureLink understands that the implementation of traditional A/V has added complexity when merged with IT. PureStream VIP solutions address these issues by combining reliable hardware with simplified setup, discovery, and operation.

  • Features:

    • Supports 4K30 4:4:4 and 4K60 4:2:0 (converted to 4K30)
    • HDCP 2.2 compliant
    • Powered via 802.3af PoE
    • Near Zero Latency (1 mS)
    • High Quality proprietary PureStreamX Ultra codec
    • CAT connections standard
    • Fiber SFP+ slot for optional modules
    • Built-in video wall function (up to 8x8 configuration)
    • USB 2.0 (KM)
    • Bidirectional RS232 and IR
    • Infrared remote control channel selection
    • LED channel display
    • Digital and analog audio insertion
    • Compatible with VPX IP Video Management Software with browser interface
    • Four products in one-
    • Point to Point : KVM extender up to 390 ft.
    • Distribution : 1 x TX to 65K x RX
    • Switching : 256 x TX to 1 x RX
    • Matrix : 256 x TX, 65K total TX/RX

  • Specifications:

    • Supported resolutions: 480i to 4K30 4:4:4 and 4K60 4:2:0 (converted to 4K30)
    • HDCP: 2.2
    • Transmission distance: 120M CAT and up to 60KM Fiber
    • USB: 2.0 Keyboard/Mouse only / 1x USB type B
    • RS232: 1x 3 pin phoenix
    • Video In: 1x HDMI w lock thread
    • Network: RJ45 with indicators
    • Network: SFP option slot
    • Analog audio: 3.5mm stereo
    • Digital audio: Toslink SPDIF - Dolby True HD, Dolby DTS-HD
    • IR: 3.5mm, 38-56 kHz
    • PoE (POWER OVER ETHERNET): 802.3af
    • Power Adapter: 5VDC
    • Environmental: 0 - 55 C operating, -20 to 85 C storage max. 95% NCH
    • Dimensions: 6.69 x 4.53 x 0.98 in.
    • Weight: 1.1 Lbs
    • Mounting: Removable mounting tabs
