Palmer Audio PAN03 19 Inch DI Box 4-channel active

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

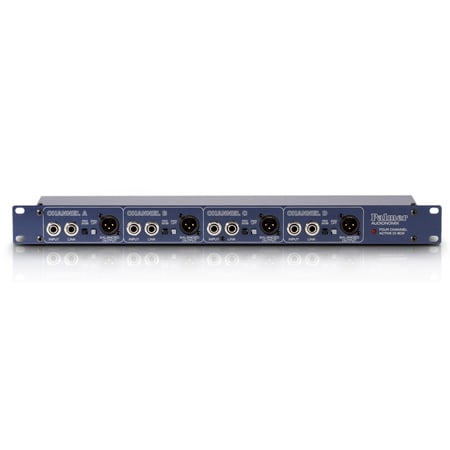

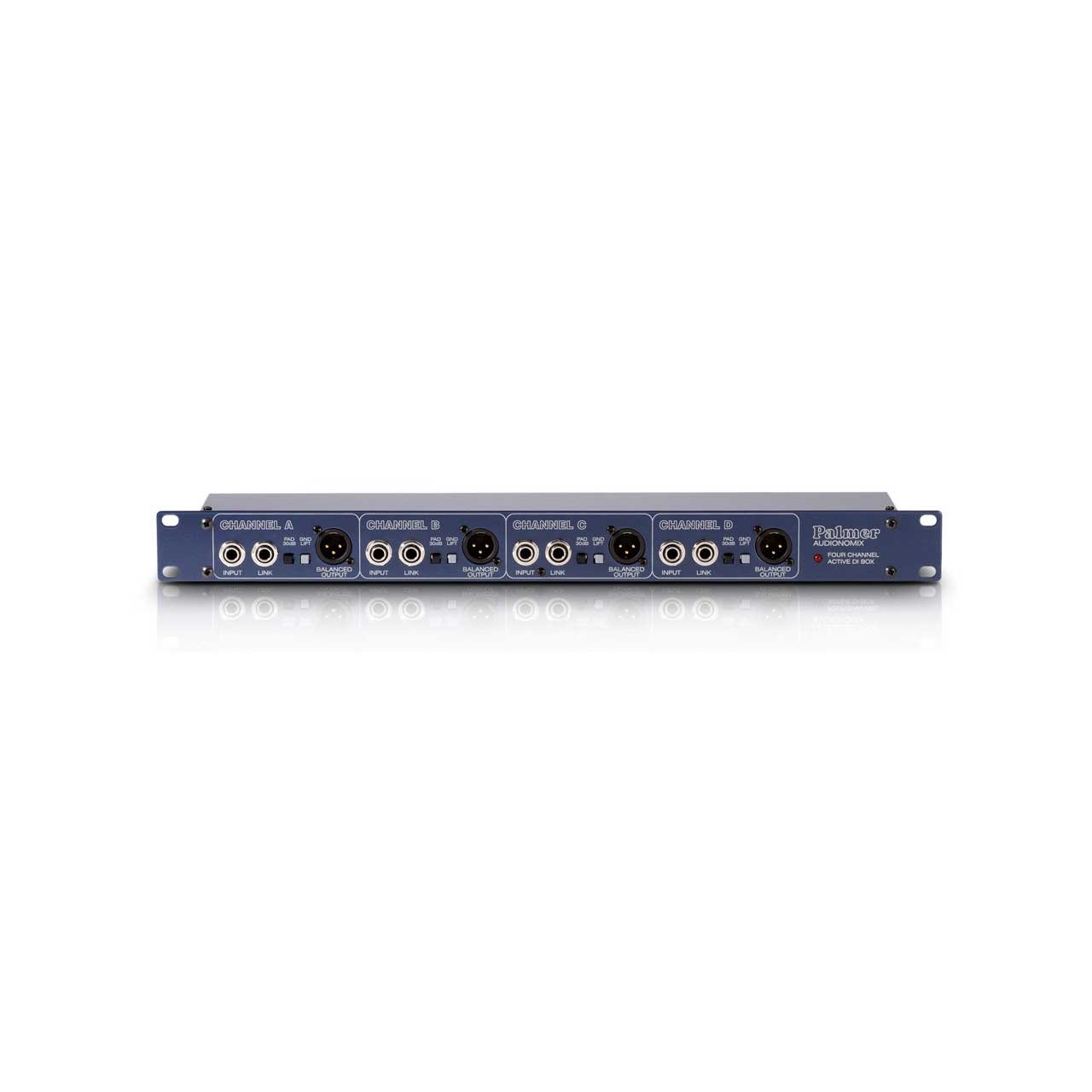

    Palmer Audio PAN03 19 Inch DI Box 4-channel active

    Manufacturer: Palmer Audio

    Item #: PLM-PAN03   •   MFG #: PAN03




    Share!





    Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.


    • Features

      • 4 channel Active DI Box + 19" Rack Mount Chassis + Front panel access to connections and switches

    • Specifications

      • Product type: DI box
      • Type: active
      • Channels: 4
      • Inputs: 4
      • input connectors: 6.3 mm Jack
      • max. input level: + 45 dBu
      • input impedance: ((at) 60 Hz) 1 M Ohm(s)
      • input pad: 0 / -30 dB
      • Outputs: 4 (+ 4 Parallel XLR outs)
      • THRU outputs/channel: 1
      • output connectors: 6.3 mm Jack, XLR
      • max. output level: + 10 dB
      • output impedance: 600 Ohm(s)
      • frequency response: 10 - 20000 Hz
      • transformer balanced: yes
      • Ratio: 10 : 1
      • Display: Power
      • controls: ground lift, attenuator
      • power supply: external
      • cabinet material: sheet steel
      • Cabinet / Housing surface: powder coated
