Palmer Audio PAN08 19 Inch DI/Line Isolation Box 4 channels active
  • Palmer Audio PAN08 19 Inch DI/Line Isolation Box 4 channels active
  • Palmer Audio PAN08 19 Inch DI/Line Isolation Box 4 channels active

Questions? Ask a Markertek Expert:
800-522-2025 Email

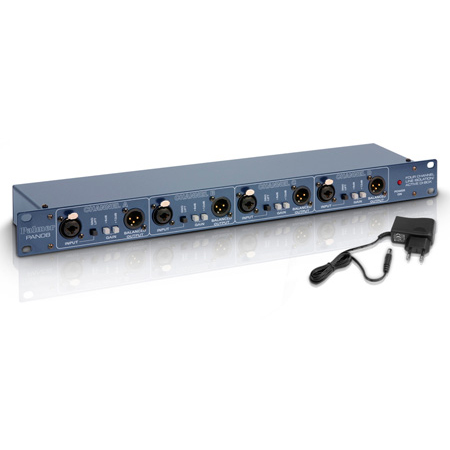

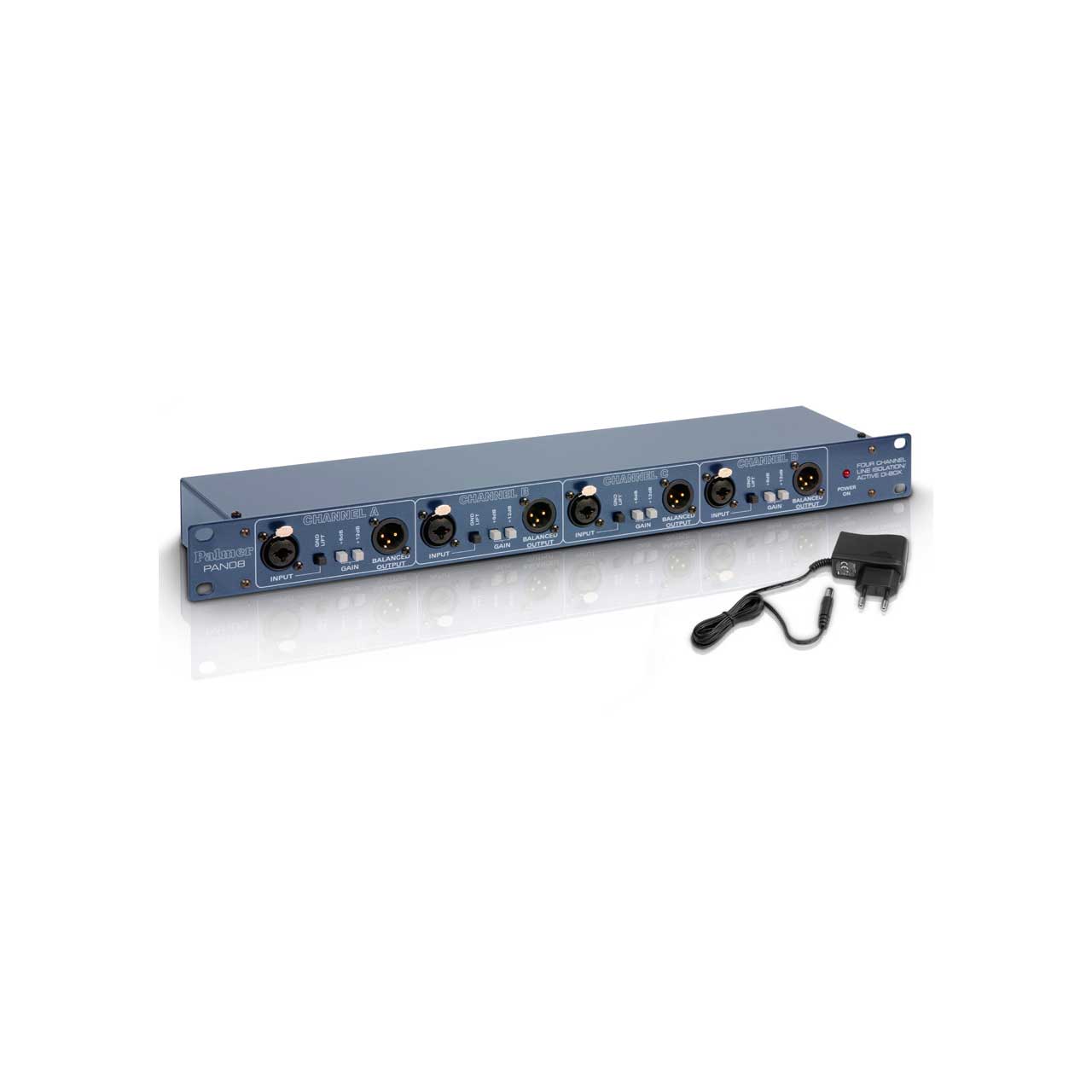

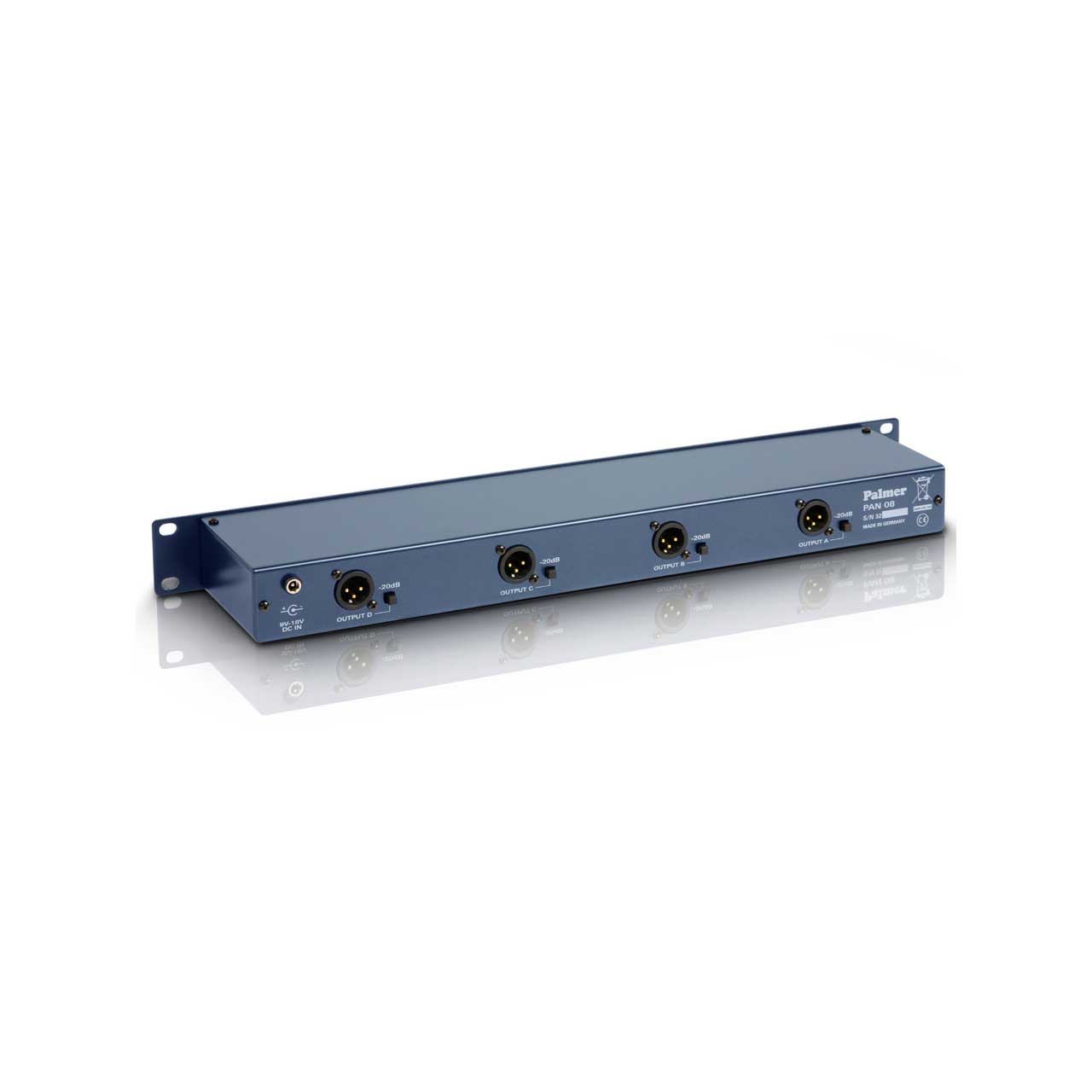

Palmer Audio PAN08 19 Inch DI/Line Isolation Box 4 channels active

Manufacturer: Palmer Audio

Item #: PLM-PAN08   •   MFG #: PAN08



List Price:$824.95
Our Price:$499.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear). The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.


    • Features

      • 4 Channel DI / Line Isolation + Battery power supply voltage ranges from 9 to 18 V + Unbalanced and balanced signal input

    • Specifications

      • Type: active
      • Channels: 4
      • Inputs: 4
      • input connectors: 2 x XLR/6.3 mm TRS combo
      • max. input level: +12 dBu
      • input impedance: Balanced: 20k Ohm(s)
      • Outputs: 8
      • THRU outputs/channel: 0
      • output connectors: XLR
      • max. output level: +12 dB
      • output impedance: 600 Ohm(s)
      • frequency response: 20 - 20000 Hz
      • transformer balanced: yes
      • Ratio: Variabel
      • Display: Power
      • controls: attenuator, ground lift, 2 x gain
      • power supply: 9 V DC power supply
      • cabinet material: sheet steel
      • Cabinet / Housing surface: powder coated
