Palmer Audio PMBLA Dual Channel Line Merger active

Manufacturer: Palmer Audio

Item #: PLM-PMBLA   •   MFG #: PMBLA




Share!

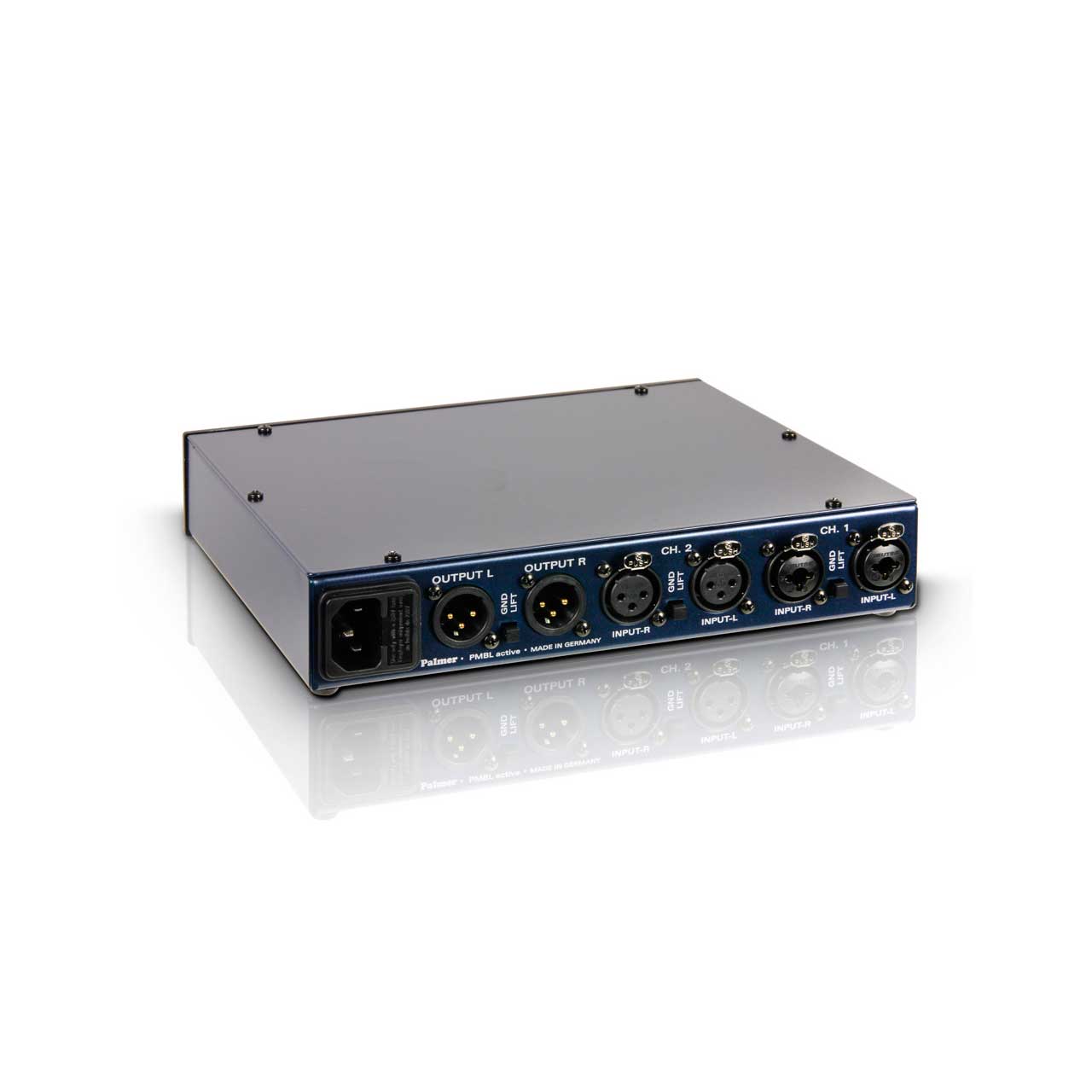

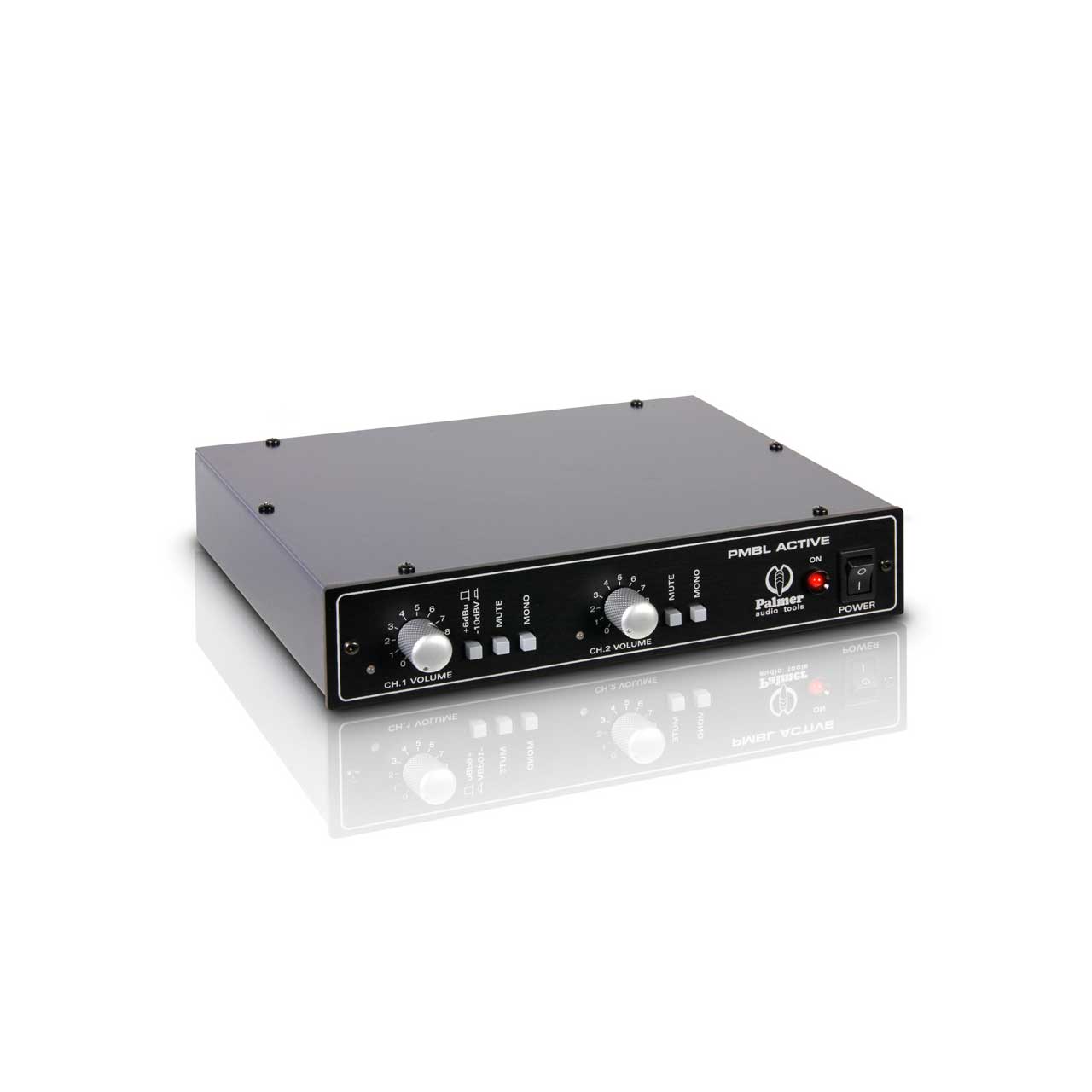

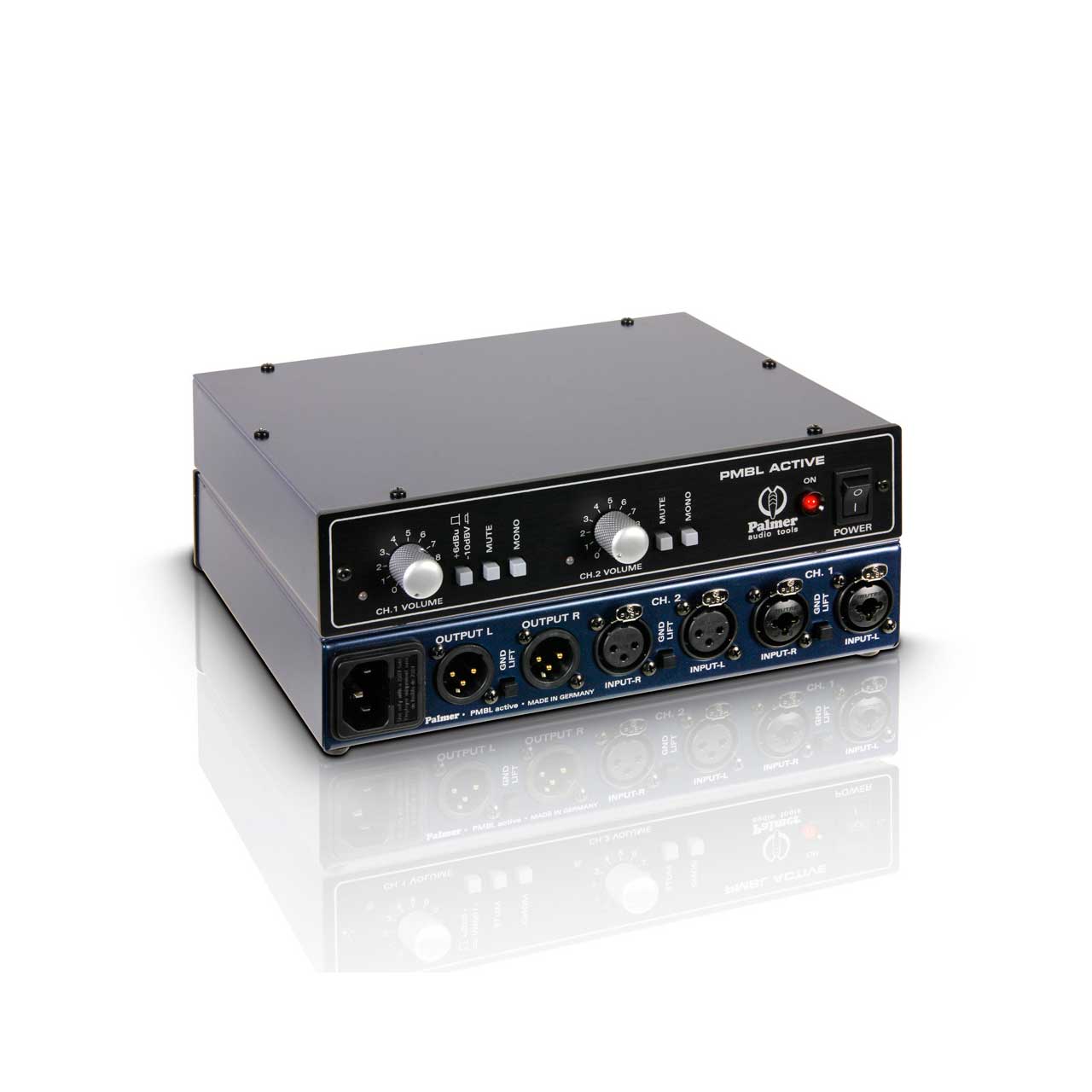

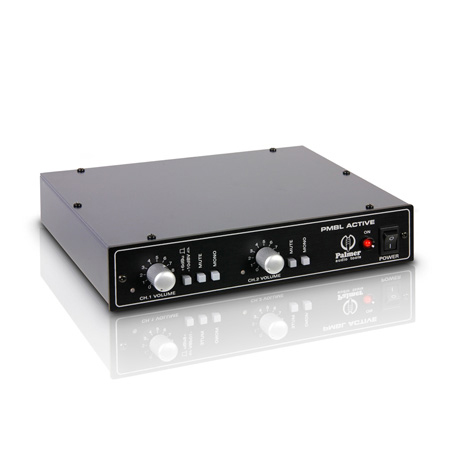

The PMBL-ACTIVE is a 2-channel stereo line level merge box that can be used to merge two stereo line signals into one stereo output. One classic application: routing two mixing desks to one PA system. The unit has enough amplification to boost even semi-professional levels accordingly. The input channels are galvanically isolated from one another. Each channel offers a mute switch and the ability to mix the stereo signal down to mono. The unit is housed in a 1 U/9.5" case and has a built-in power supply.


  • Features

    • 2 channel active line level merge + Unit has enough amplification to boost semi-professional levels + Input channels are galvanically isolated from one another

  • Specifications

    • Product type: combiner
    • Type: active
    • Inputs: 2
    • input connectors: 2 x XLR/6.3 mm TRS combo, XLR
    • input impedance: 2 k Ohm(s)
    • adjustable input: yes
    • Outputs: 2
    • output connectors: XLR
    • adjustable output: no
    • output impedance: 600 Ohm(s)
    • max. output level: +20 dBu (balanced) dBu
    • Display: Power
    • controls: Power, +6 dBu / -10 dBV switchable, ground lift, mute, mono/stereo
    • power supply: integrated (115 / 230 V)
    • power consumption: 2,5 W
    • Width: 222 mm
    • depth: 160 mm
    • Height: 44 mm
    • cabinet material: sheet steel/aluminium
    • Cabinet / Housing surface: powder coated/anodized
