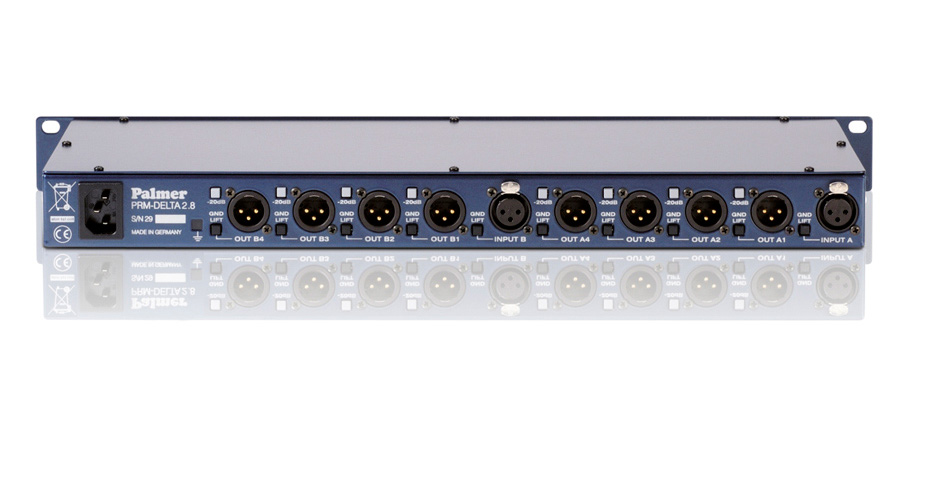

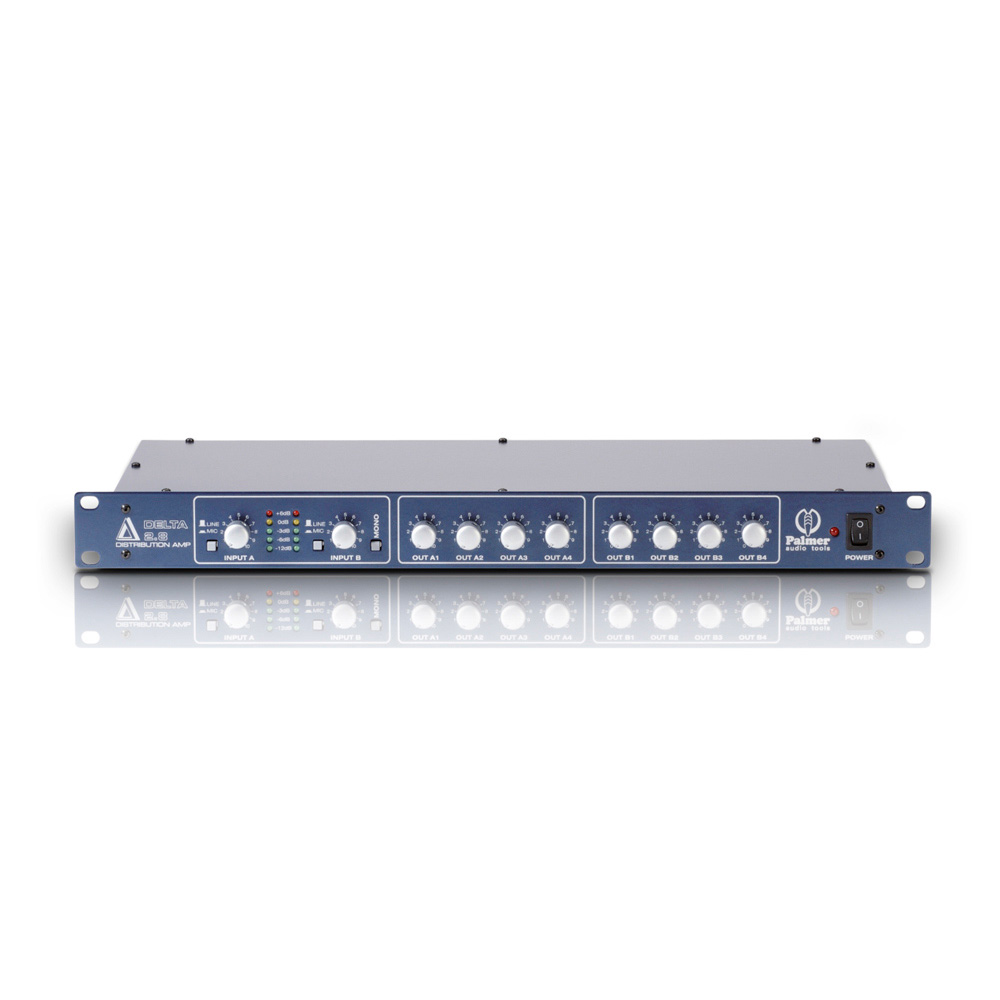

PRMD28 - Overview

Distribution amplifier, switchable between microphone and line levels. Two balanced inputs, individually configurable for microphone or line levels, can be routed to eight outputs. The levels are adjustable for all outputs. For each channel a 20 dB pad expands the adjustable dynamic range, for a wide range of applications. A switch allows 1 source to be distributed to 4 stereo outputs, or 2 sources to be distributed to 8 mono outputs.

  • Features:

    • Distribution amplifier + Switchable between mic and line levels + 20 db pad per channel + 1 source can be distributed to 4 stereo outputs + 2 sources can be distributed to 8 mono outputs

  • Specifications:

    • Product type: splitter
    • Type: mic & line split
    • split type: 2 x 1 in 4
    • Channels: 2
    • Inputs: 2
    • input connectors: XLR
    • max. input level: Mic: +20, Line: +30 dB
    • adjustable input: yes
    • number of split-outputs per canal: 4
    • max. output level: + 20 dB
    • output connectors: XLR
    • adjustable output: yes
    • transformer isolated outputs: yes
    • controls: input gain, mic/line switch, 20 dB output pad, Power, output level, ground lift
    • Display: Power, input level
    • power supply: integrated (115 / 230 V)
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated

  • GTIN:

    4049521049576
