Plura PBM-346-3G 46 Inch 3G Broadcast Monitor Narrow Bezel (1920x1080) Class A- 3Gb/s Ready

ITEM #: PLUR-PBM-346-3G MFG #: PBM-346-3G

Primary Image
Plura Broadcast, Inc.
Free Shipping with $49 Minimum Order

List Price:

$7,349.00

Our Price:

$6,614.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PBM-346-3G - Overview

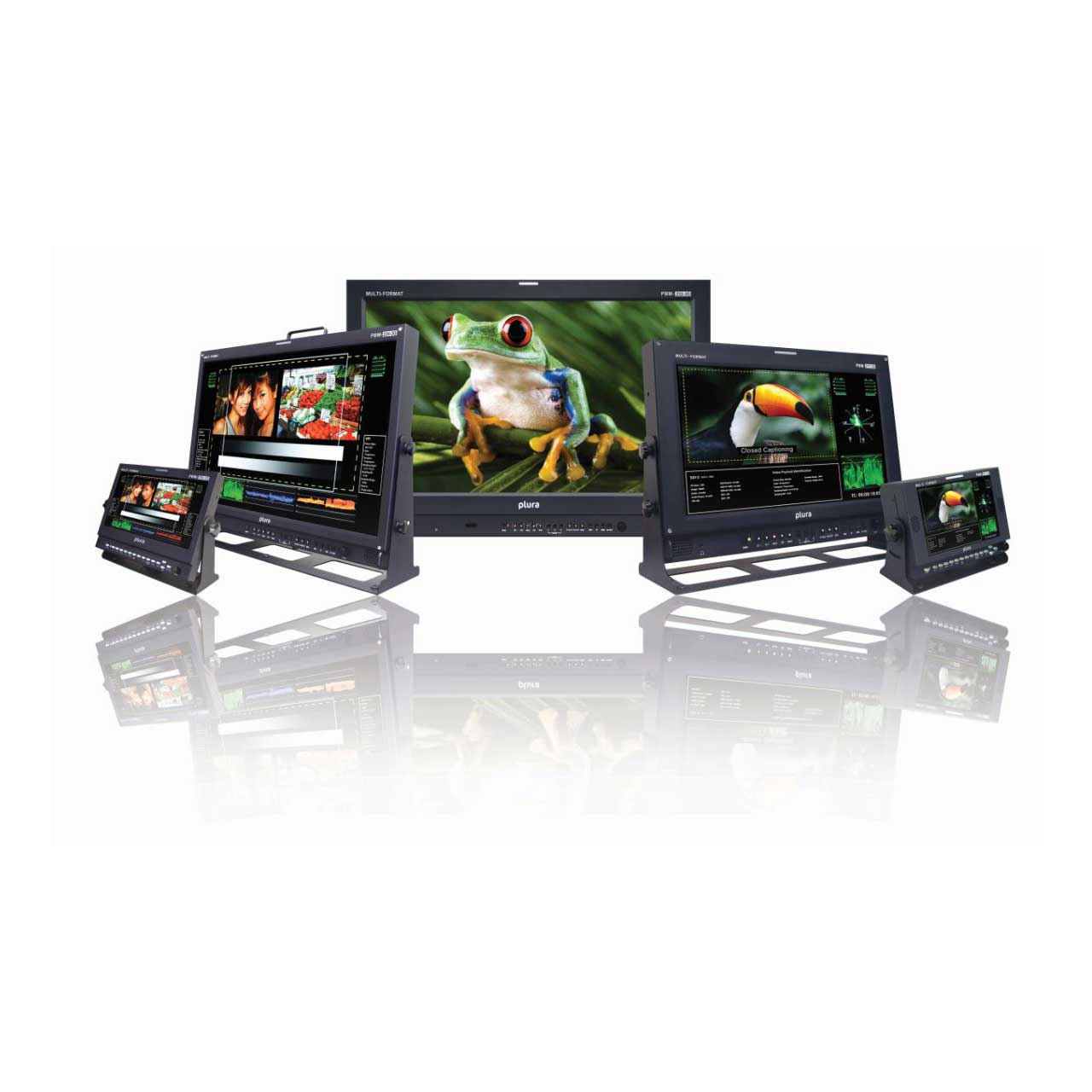

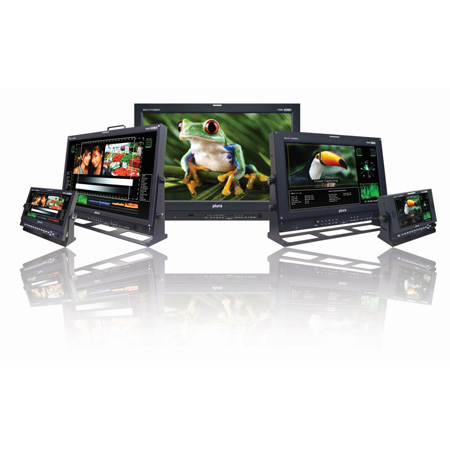

The Plura PBM-346-3G, a model in the PBM-3G Series, is a 46" Broadcast Monitor (1920x1080) Class A- 3Gb/s! Featuring native full HD resolution with high contrast ratio, wide viewing angles, accurate color reproduction and quality picture consistency that meets your HD SD Monitoring application as well as intelligent connection for Calibration Alignment and Adjustable Colormetry and Gamma Correction. Multiple monitors can be controlled by a centralized wall control system which can also be utilized to connect different size monitors in any combination.

The PBM-3G Series also provides many powerful display functions such as powerful dual 3Gb/s input display, auto calibration, advanced waveform, vectorscope and so many more.

  • Features:

    • 3Gb/s ready - 1080/60P
    • Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
    • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
    • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 10 Bit Digital Signal Processing
    • 178°Viewing Angle Display
    • Closed Caption (608/708)
    • Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Advanced Waveform (Y.Cb.Cr.selectable), Vector Scope
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Built In Stereo Speaker , 16 CH Audio Metering Display
    • IMD & Time code display and Wall Control System
    • Pixel to Pixel Mode, Tally, DC Operation
    • Underscan/ Overscan/ Normal / Zoom
    • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
    • OPTIONS: Battery Mount (PBM-217-3G, PBM-220-3G), Carry Case,
    • Rackmount: (PBM-217-3G, PBM-220-3G & PBM-224-3G)


  • Specifications:

    • INPUT
    • SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M, BNC Jack
    • Analog Input: 3EA, Composite, Component(YPbPr/RGB), BNC Jack
    • S-VIDEO Input: 1EA,YC(S-Video)
    • DVI/VGA Input: 1EA, DVI-I, 24pin, Female
    • HDMI: 1EA, HDMI, 19pin Female
      OUTPUT
    • SDI Output: 2EA, BNC, Active Through Output
    • Analog Loop Output: 3 EA, 75Ohm BNC
      ANALOG INPUT LEVEL
    • Composite: 1.0Vpp (With sync)
    • YC (S-Video): 1.0Vpp (Y With sync), 0.286Vpp (C)
    • Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
    • RGB: 1.0Vpp (G With sync), 0.7Vpp (R/B)
    • DVI - (Analog PC) H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz; Maximum Resolution : UXGA at 60Hz; Maximum Pixel Rate : 162MHz - Separate Sync Support
      DIGITAL INPUT FORMAT
    • SMPTE-428.1M 2048x1080P(24/25)
    • SMPTE-425M(3G) 1920x1080P(50/60)
    • SMPTE-260M 1920x1035i(60/59.94)
    • SMPTE-274M 1920x1080i (50/59.94/60); 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
    • SMPTE-372M Dual Link HD-SDI YPbPr(4:2:2): 1080P(50/59.94/60); Dual Link HD-SDI YpbPr/RGB(4:4:4); 1080P(30/29.97/25/24/23.98); 1080i(29.97/25/24/23.98); 720P(60/59.94/50)
    • SMPTE-296M 1280x720P (50/59.94/60)
    • SMPTE-125M 480i (59.94)
    • ITU-R BT.601 576i(50)
    • Component: 640 X 480 up to 1920 X 1080p
    • HDMI; DVI-I Digital H Frequency Range: 22~82KHz, V Frequency Range: 55~90Hz; Maximum Resolution: UXGA at 60Hz; Maximum Pixel Rate: 162MHz
      AUDIO INPUT
    • Input Line: Analog Stereo (RCA Jack)
    • SDI Audio Input: Embedded HD/SD-SDI Audio
      AUDIO OUTPUT
    • Speaker Output: Internal Speaker (Stereo) 2W+2W
    • Output Line: 1EA, L/R, Stereo pin jack
    • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack
    • Output Signal: Input Line & De-embedded Audio, 1~ 16CH
      I/O PORT
    • GPI: RJ-45 pin (Programmable General Purpose Input)
    • RS422/485: RJ-45 8 pin for upgrade
    • Upgrade Port: D-sub 9 pin female for upgrade
    • RS232: D-Sub 9 pin female I/P for wall control
      LCD
    • Size: LCD 46"
    • Aspect Ratio: 16 : 9
    • Resolutions: 1920 x 1080
    • Display Area: 1018.08 x 572.67 (mm)
    • Display Color: 1.67 M Colors
    • Brightness: Max 450 cd/m2
    • Contrast Ratio: 4000 : 1 (Typical)
    • Response Time: Tr=6ms / Tf=6ms
    • Viewing Angle: Horizontal: 178 (Typ.), Vertical 178 (Typ.)
      GENERAL
    • Power Requirement: AC 100 V ~ 240 V (60/50 Hz)
    • Power Consumption: 2.2 A - 1.1A(230W)
    • Working Temperature: -30°C - 40°C (-22°F - 104°F)
    • Working Humidity 10%RH ~ 85%RH (Non Condensed)
    • Storage Temperature -30°C ~ 60°C (-22°F ~ 140°F)
    • Storage Humidity 10%RH ~ 85%RH (Non Condensed)
    • Weight (w/o Stand & Packaging): 22.6 Kg – 50 Lbs
    • Dimension (W*H*D): w/o Box & Stand 1076 x 641 x 100 mm; 42.4 x 25.2 x 3.9 inch
    • Packing Dimension (WxHxD): 1250 x 805 x 295 mm; 49.2 x 31.7 x 11.6 inch
    • Accessory: Power Cord - Desk Stand
    • Option: Carrying Case
