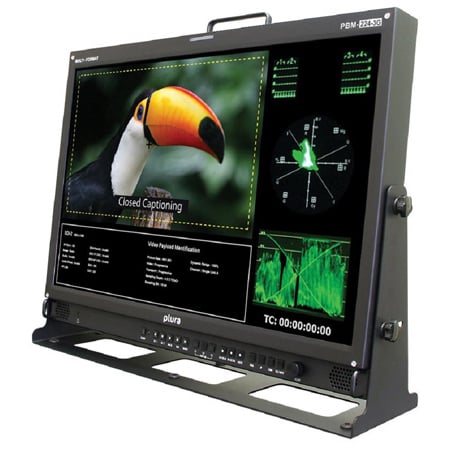

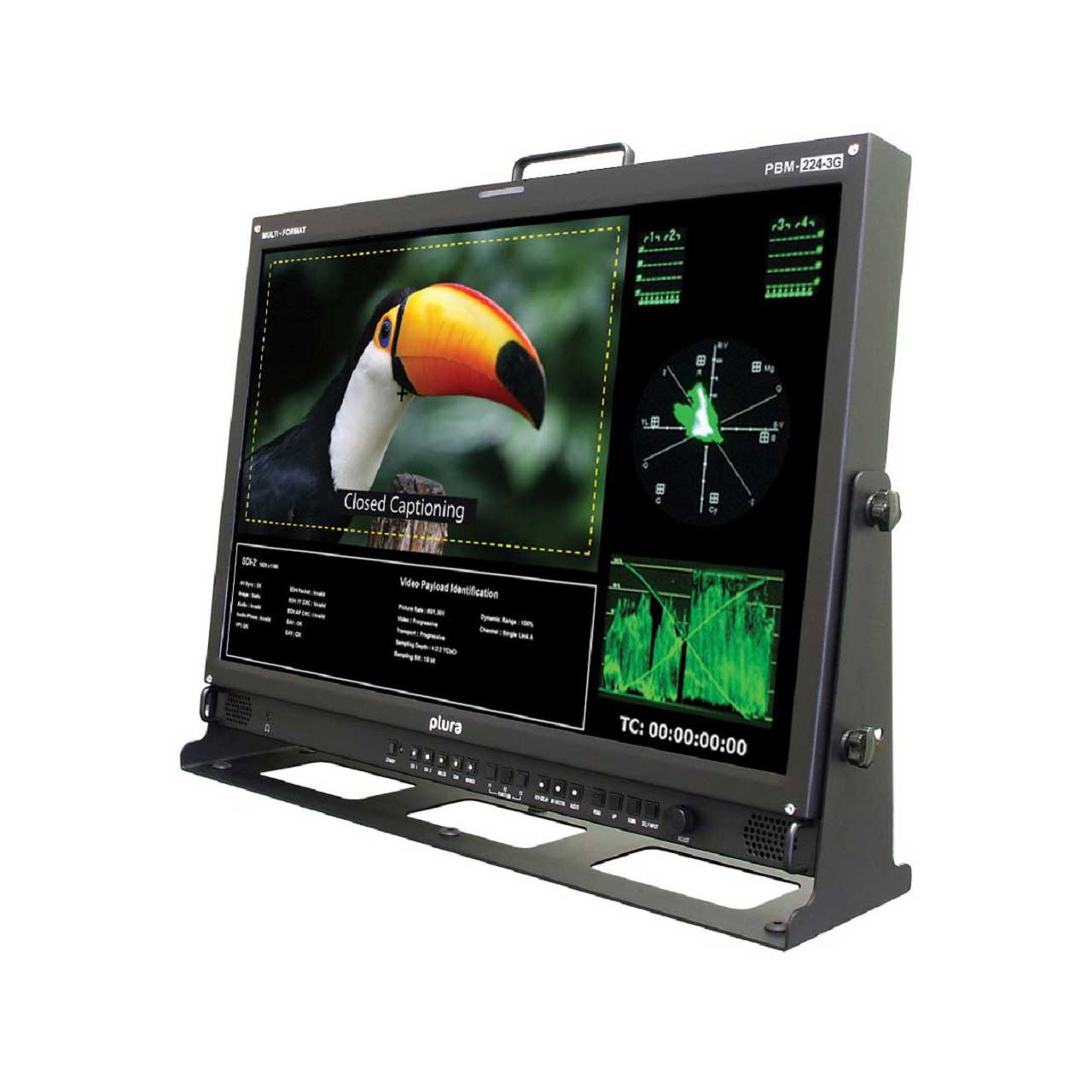

Plura PBM-224-3G-10 24 Inch 3G Broadcast Monitor (1920x1200) Class A- 3Gb/s - 10 Bit Panel

PBM-224-3G-10 - Overview

• Features:

  • 3Gb/s Ready - 1080/60P
  • Advanced Waveforsm (Y.Cb.Cr. selectable), Vectorscope
  • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
  • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
  • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for High Motion Video
  • RGB 10 Bit Digital Signal Processing
  • 178° Viewing Angle Display
  • Closed Caption (608/708)
  • Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
  • Various and User Defined Markers Display, Safe Area in HD & SD
  • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
  • Advanced Waveform (Y.Cb.Cr.selectable), Vector Scope
  • Analog & Embedded Audio Input, Digital Audio Decoding
  • Built In Stereo Speaker , 16 CH Audio Metering Display
  • IMD & Time code display and Wall Control System
  • Pixel to Pixel Mode, Tally, DC Operation
  • Underscan/ Overscan/ Normal / Zoom
  • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)


• Specifications:

  • Input
  • SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M , BNC Jack
  • Analog Input: 3EA, Composite, Component (YPbPr/RGB), BNC Jack
  • S-VIDEO Input: 1EA,YC(S-Video)
  • DVI/VGA Input: 1EA, DVI-I, 24pin, Female
  • HDMI: 1EA, HDMI, 19pin Female

    Output
  • SDI Output: 2EA, BNC, Active Through Output
  • Analog Loop Output: 3 EA, 75Ohm BNC

    Analog Input Level
  • Composite: 1.0Vpp (With sync)
  • YC (S-Video): 1.0Vpp (Y With sync), 0.286Vpp (C)
  • Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
  • RGB: 1.0Vpp (G With sync), 0.7Vpp (R/B)
  • DVI - (Analog PC): H Frequency Range : 22~82KHz, V Frequency Range: 55~90Hz; Maximum Resolution: UXGA at 60Hz; Maximum Pixel Rate: 162MHz - Separate Sync Support

    Digital Input Formats
  • SMPTE-428.1M: 2048x1080P(24/25)
  • SMPTE-425M(3G): 1920x1080P(50/60)
  • SMPTE-260M: 1920x1035i(60/59.94)
  • SMPTE-274M: 1920x1080i (50/59.94/60); 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
  • SMPTE-372M: Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60); Dual Link HD-SDI YpbPr/RGB(4:4:4); 1080P(30/29.97/25/24/23.98); 1080i(29.97/25/24/23.98); 720P(60/59.94/50)
  • SMPTE-296M: 1280x720P (50/59.94/60)
  • SMPTE-125M: 480i(59.94)
  • ITU-R BT.601: 576i(50)
  • Component: 640 X 480 up to 1920 X 1080p
  • HDMI / DVI-I Digital: H Frequency Range: 22~82KHz, V Frequency Range: 55~90Hz; Maximum Resolution: UXGA at 60Hz; Maximum Pixel Rate: 162MHz

    Audio Input
  • Input Line: Analog Stereo (RCA Jack)
  • SDI Audio Input: Embedded HD/SD-SDI Audio

    Audio Output
  • Speaker Output: Internal Speaker (Stereo) 2W+2W
  • Output Line: 1EA, L/R, Stereo pin jack
  • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack
  • Output Signal: Input Line & De-embedded Audio, 1~ 16CH

    I/O Port
  • GPI: RJ-45 pin (Programmable General Purpose Input)
  • Ethernet: RJ-45 8 pin for F/W & FPGA Upgrade & Wall Control
  • RS232: D-sub 9 pin female I/P FW

    LCD
  • Size: LCD 24"
  • Aspect Ratio: 16 : 10
  • Resolutions: 1920 x 1200
  • Display Area : 518.4 x 324.0 (mm)
  • Display Color: 1,073,741,824 Colors
  • Brightness: Max 400 cd/m2
  • Contrast Ratio: 1000 : 1 (Typical)
  • Response Time: Tr=7.5ms / Tf=7.5ms
  • Viewing Angle: Horizontal: 178 (Typ.), Vertical 178 (Typ.)

    General
  • Power Requirement: AC 100 V ~ 240 V (60/50 Hz)
  • Power Consumption:1.0 A - 0.5A(100W)
  • Working Temperature: -22F - 104°F
  • Working Humidity: 10%RH - 85%RH (Non Condensed)
  • Storage Temperature: -22°F ~ 140°F
  • Storage Humidity 10%RH ~ 85%RH (Non Condensed)
  • Weight (w/o Stand & Packaging): 22.0 Lbs
  • Dimension (W*H*D): w/o Box & Stand 21.8 x 16.1 x 3.4 inch
  • Packing Dimension (WxHxD): 26 x 20.6 x 8.7 inch
  • Accessory: Power Cord - Desk Stand
  • Option: Battery Mount, Rackmount, Carrying Case
