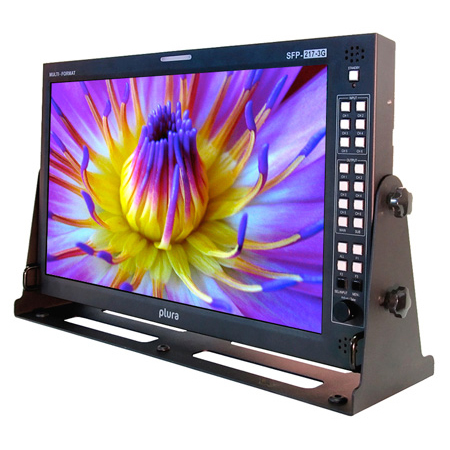

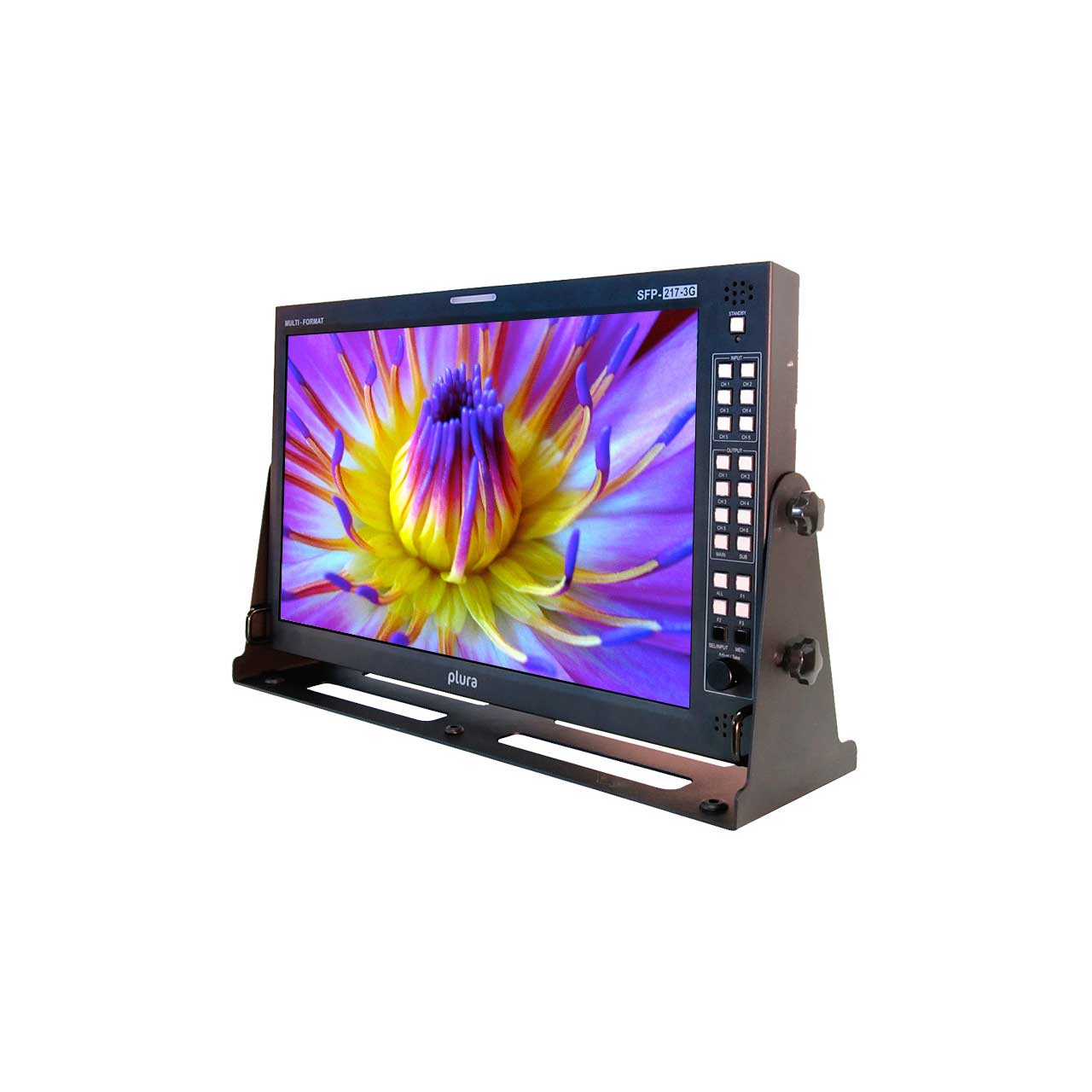

Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port
  • Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port
  • Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port
  • Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port
  • Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port
  • Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port

Questions? Ask a Markertek Expert:
800-522-2025 Email

Plura SFP-217-3G 17-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port

Manufacturer: Plura Broadcast, Inc.

Item #: PLUR-SFP-217-3G   •   MFG #: SFP-217-3G



List Price:$3,199.00
Our Price:$2,879.10

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The SFP-3G Series consists of SFP-217-3G, SFP-221-3G, SFP-224-3G & SFP-232-3G, 17", 21", 24" & 32" FULL HD 1920x1080 Precision Broadcast LCD Series which is built with 17", 21" 24" & 32" high quality panel respectively. The SFP-3G series adapt to various optional PLURA SFP modules which can fit any possible broadcast application. It supports up to 3 Gbps-1080-60P along with all other Digital and Analog inputs & formats.

Optional SFP Modules

SFP-3G-TXRX-HD-BF-LR: SFP Module - 3Gbps SDI Coaxial Transceiver, Long Range,HD-BNC
SFP-3G-TXRX-HD-BF-LR-C: SFP Module - 3Gbps SDI Coaxial Transceiver w/Reclocker, Long Range,HD-BNC
SFP-3G-2RX-1310F-LC-MH: SFP Module - 3Gbps SDI Dual Optical Receiver, Medium Range-LC-F
SFP-3G-2TX-1310F-LC-MH: SFP Module - 3Gbps SDI Dual Optical Transmitter (1310nm)Medium Range-LC-F
SFP-3G-TXRX-1310F-LC-MH: SFP Module - 3Gbps SDI Optical Transceiver, Medium Haul- LC-F
SFP-3G-2RX-1310F-LC-BF: SFP Module - 3Gbps HYBRID DUAL RECEIVER, w/Reclocker, LONG Reach-LC-F-HD-BNC
SFP-3G-TX-HDMIF-TypeD: SFP Module - 3Gbps SDI to HDMI converter, Type D
SFP-3G-2TX-HD-BF-LR: SFP Module - 3Gbps SDI Coaxial Dual Transmitter, Long Range,HD-BNC


  • Features

    • 3Gb/s ready - 1080/60P
    • Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
    • 4 SFP Slots HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
    • Fiber (RX, TX or Transceiver) and Coaxial (Rx, TX or Transceiver) optional connectivity
    • SDI to HDMI conversion with an optional SFP module
    • Built-IN 6 x 6 Cross Point Switcher
    • Inclusive Network Controller PSC-400 with Firmware & Cal. Transfer
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 10 Bit Digital Signal Processing
    • 178° Viewing Angle Display
    • Closed Caption (608/708)
    • Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Built In Stereo Speaker , 16 CH Audio Metering Display
    • IMD & Time code display and Wall Control System
    • Pixel to Pixel Mode, Tally, DC Operation
    • Underscan/ Overscan/ Normal / Zoom

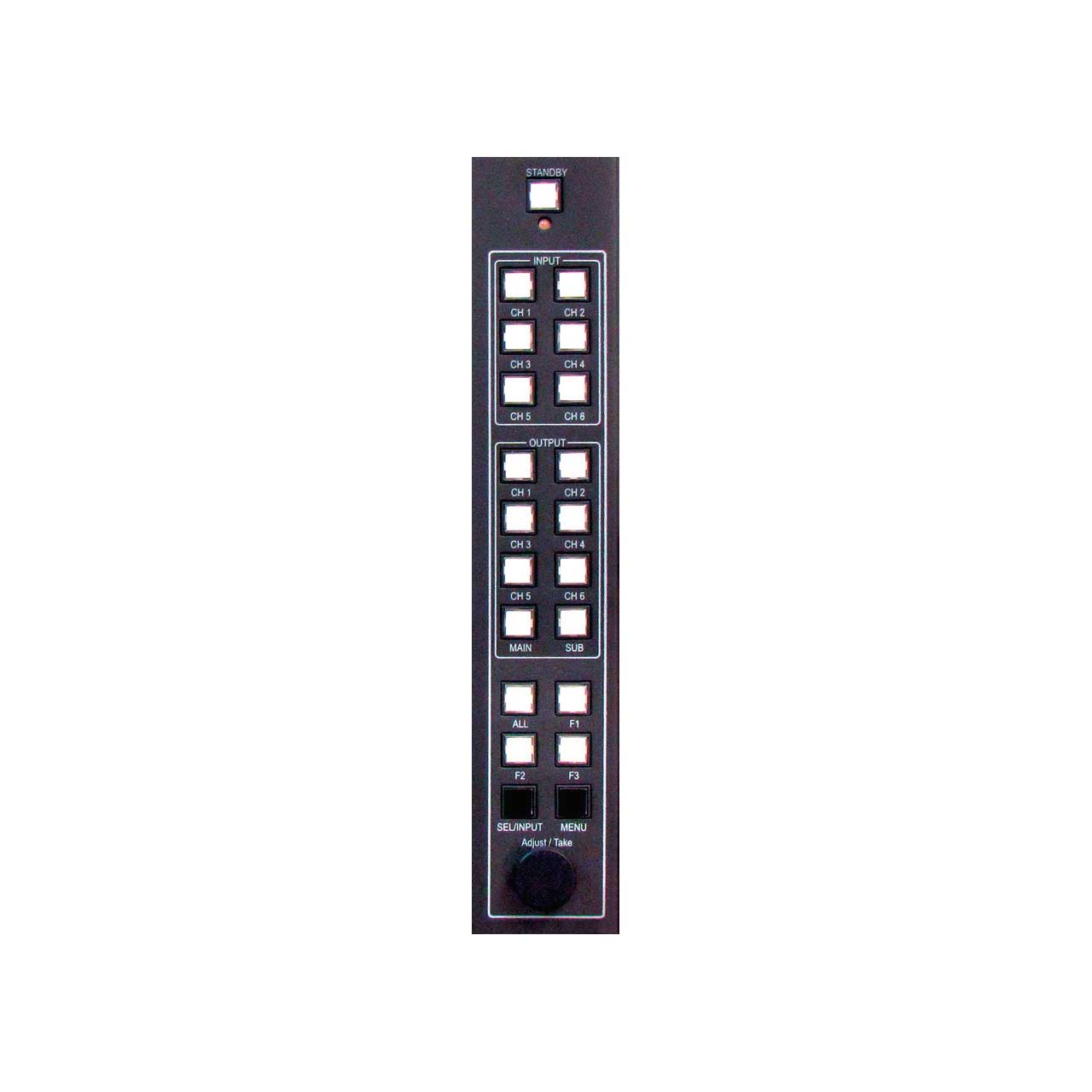

    • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
    • OPTIONS: Battery Mount (SFP-217-3G, SFP-221-3G), Carry Case
    • Rack mount: (SFP-217-3G, SFP-221-3G & SFP-224-3G)

  • Specifications

    • SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
    • Analog Input: 3EA, Composite, Component(YPbPr/RGB), BNC Jack
    • S-VIDEO Input: 1EA,YC(S-Video)
    • DVI/VGA Input: 1EA, DVI-I, 24pin, Female
    • HDMI: 1EA, HDMI, 19pin Female
    • Output: SDI Output: 2EA, BNC, Active Through Output
    • Analog loop Output: 3 EA, 75 Ohm BNC
    • Analog Input Level: Composite: 1.0Vpp (With sync)
    • YC (S-Video): 1.0Vpp (Y With sync), 0.286Vpp (C)
    • Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
    • RGB: 1.0Vpp (G With sync), 0.7Vpp (R/B)
    • DVI - (Analog PC): H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
    • Maximum Resolution : UXGA at 60Hz,
    • Maximum Pixel Rate : 162MHz - Separate Sync Support
    • Digital Input Format: SMPTE-428.1M*: 2048x1080P(24/25)
    • SMPTE-425M(3G)*: 1920x1080P(50/60)
    • SMPTE-260M*: 1920x1035i(60/59.94)
    • SMPTE-274M*: 1920x1080i (50/59.94/60)
    • 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
    • SMPTE-372M*: Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
    • Dual Link HD-SDI YpbPr/RGB(4:4:4)
    • 1080P(30/29.97/25/24/23.98)
    • 1080i(29.97/25/24/23.98)
    • 720P(60/59.94/50)
    • SMPTE-296M*: 1280x720P (50/59.94/60)
    • SMPTE-125M*: 480i(59.94)
    • ITU-R BT.601*: 576i(50)
    • Component: 640 X 480 up to 1920 X 1080p
    • HDMI
    • DVI-I Digital: H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
    • Maximum Resolution : UXGA at 60Hz ,
    • Maximum Pixel Rate : 162MHz
    • Audio Input: Input Line: Analog Stereo (RCA Jack)
    • SDI Audio Input: Embedded HD/SD-SDI Audio
    • Audio Output: Speaker Output: Internal Speaker (Stereo) 2W+2W
    • Output Line: 1EA, L/R, Stereo pin jack
    • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack
    • Output Signal: Input Line & De-embedded Audio, 1~ 16CH
    • I/O Port: GPI: RJ-45 pin (Programmable General Purpose Input)
    • RS422/485: RJ-45 8 pin for upgrade
    • Upgrade Port: D-sub 9 pin female for upgrade
    • RS232: D-sub 9 pin female I/P for wall control
    • LCD: Size: LCD 17"
    • Aspect Ratio: 16 : 9
    • Resolutions: 1920 x 1080
    • Display Area: 372.9 x 209.7 (mm)
    • Display Color: 16.7 M colors
    • Brightness: Max 350 cd/m2
    • Contrast Ratio: 900 : 1 (Typical)
    • Response Time: Tr=8.0ms / Tf=8.0ms
    • Viewing Angle: Horizontal: 178(Typ.), Vertical 178(Typ.)
    • Power Requirement: AC 100 V ~ 240 V (60/50 Hz)
    • Power Consumption: 0.65 A - 0.34A(65W)
    • Working Temperature: -30°C ~ 40°C (-22F ~ 104°F)
    • Working Humidity: 10%RH ~ 85%RH (Non Condensed)
    • Storage Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
    • Storage Humidity: 10%RH ~ 85%RH (Non Condensed)
    • Weight (w/o Stand & Packaging): 7Kg - 15.43 Lbs
    • Dimension (W*H*D)
    • w/o Box & Stand: 445 x 263 x 67 mm
    • 17.5 x 10.35 x 2.63 Inch
    • Packing Dimension (WxHxD): 5500 x 435 x 220 mm
    • 21.7 x 17.2 x 8.7 Inch
    • Accessory: Power Cord - Desk Stand
    • Option:
    • * W/ PLURA SFP Module
    • Battery Mount, Rack mount, Carrying Case
