Velleman PROBE60S 60MHz Insulated Oscilloscope Probe

ITEM #: PROBE60S MFG #: PROBE60S

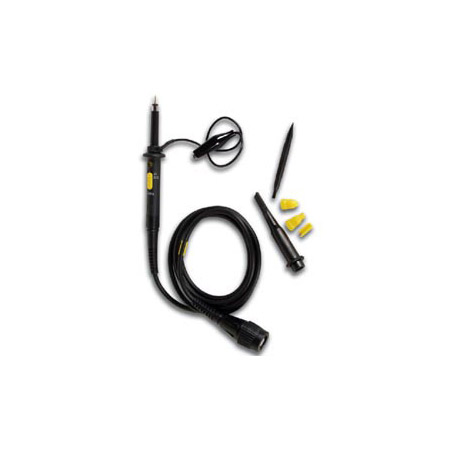

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PROBE60S

PROBE60S - Overview

Velleman PROBE60S 60MHz Insulated Oscilloscope Probe

  • Features:

    • Complete probe set
      Safety: conform with IEC-1010 cat II
      Attenuation: 1:1 or 1:10
      Specifications
      Position x1:
      Attenuation: 1:1
      Bandwidth: DC to 15MHz
      Rise time: 23.3ns
      Input resistance: 1Mohm (input resistance scope)
      Input capacitance: 46pF + cap. scope
      Working voltage: 600V DC incl. peak AC derating
      with frequency
      Position REF: -
      Position x10:
      Attenuation: 1:10
      Bandwidth: DC to 60MHz
      Rise time: 5.8ns
      Input resistance: 10Mohm (if scope input = 1Mohm)
      Input capacitance: +/-15pF
      Working voltage: 600V DC incl. peak AC derating with frequency
      Compensation range: 10 to 50pF
      Cable length: 4ft
      Remarks: with insulated BNC connector
