Quantum Data 804A Video Test Generator - USA Power Lead

ITEM #: QD-804A MFG #: 00-00228 30A00400A03

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the QD-804A

00-00228 30A00400A03 - Overview

Introducing the 804A Video Test Generator supporting HDMI 297MHz capability for testing HDTVs with 4K x 2K resolutions. The rack mountable 804A is optimized for testing modern HDMI flat panel TVs on a production line. It features four (4) HDMI outputs—all active simultaneously—for testing HDTVs with multiple HDMI inputs. This eliminates the need for splitters often required for testing each HDMI input on an HDTV. The 804A can also output component analog and composite analog for testing an HDTVs analog video outputs. The 804A is equipped with all the standard video timings up to 297 MHz and test patterns including 3D patterns and tests for HDMI protocols such as HDCP, EDID and CEC.

The 804A tests compressed and uncompressed HDMI audio formats using a variety of audio test signals. An HDTV’s analog audio inputs can also be tested using the 804A’s programmable analog audio outputs. Desktop and rack mounts included.

  • Features:

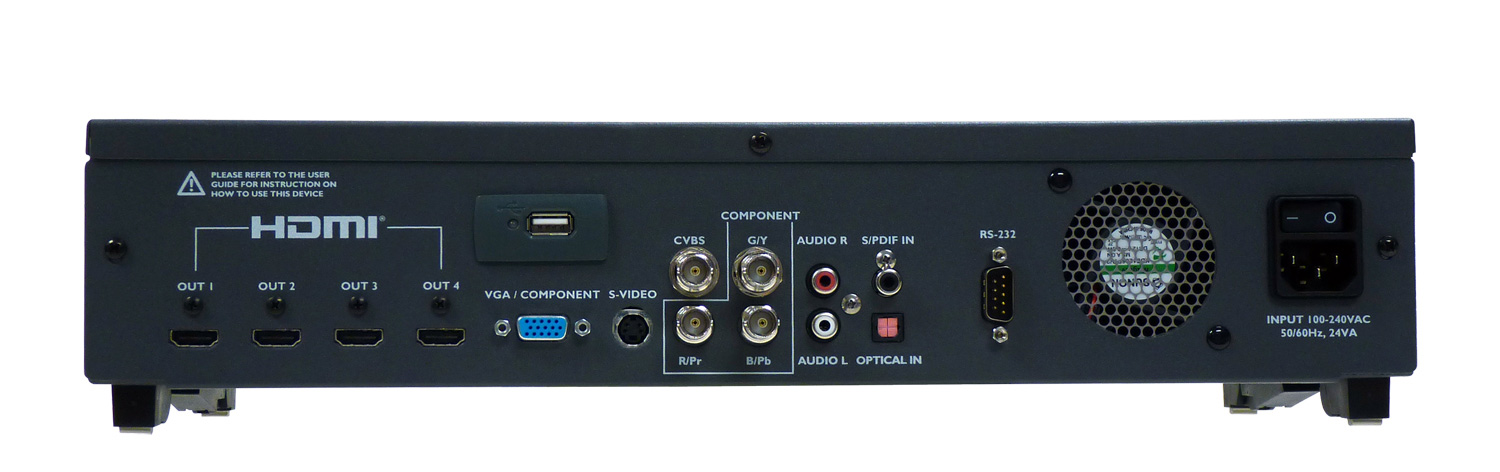

    • Four (4) HDMI outputs
    • Max pixel clock 24 bit color: 297MHz; e.g. 4Kx2K 30Hz.
    • Max pixel clock 36 bit color: 165MHz; e.g. 1080p60
    • Max TMDS rate 297MHz; 2.97Gb/s per channel.
    • Analog video outputs
    • Test HDTVs analog component and composite video inputs.
    • Standard video timings and patterns
    • Supports standard video timings and test patterns, including HDMI 3D test images as specified by the HDMI 1.4a specification.
    • HDMI and analog audio outputs
    • Support HDMI compressed and uncompressed audio formats Various patterns with programmable amplitude, sampling rate and bit depths.
    • Serial command line interface
    • RS-232 and USB interface for command line control or for automated test system.
    • Rack mountable
    • Fits in a standard 19” relay rack. Occupies two rack units.

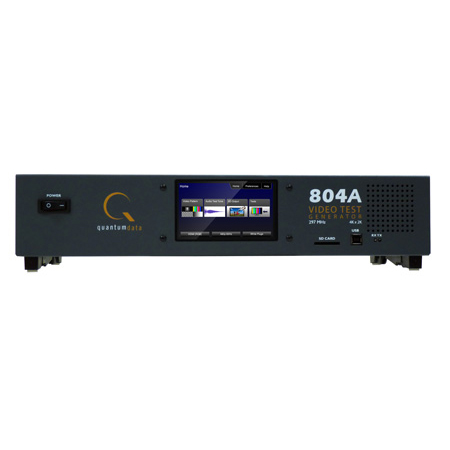

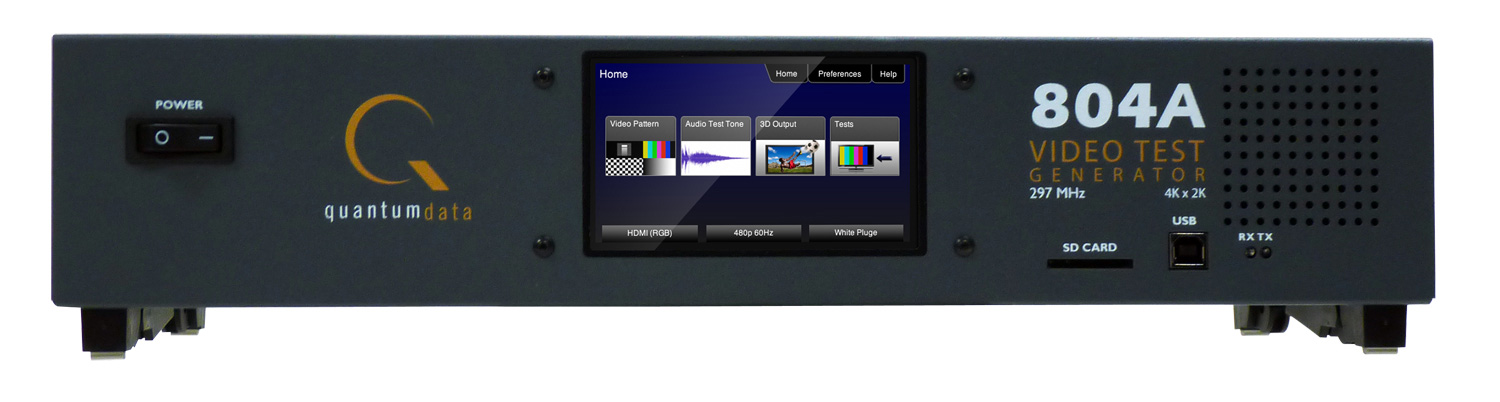

    • Color touch display
    • Monitor the status of the test on the color display.
    • Configure the 804A through the touch interface.
    • USB host interface (Optional)
    • Attach a keypad for simplified testing
