    Radio Design Labs D-CIJ3D Consumer Input Jacks - Stereo - White/Gray

    Manufacturer: Radio Design Labs

    Item #: RDL-D-CIJ3D   •   MFG #: RDL-D-CIJ3D








    Colors:





    Share!





    The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

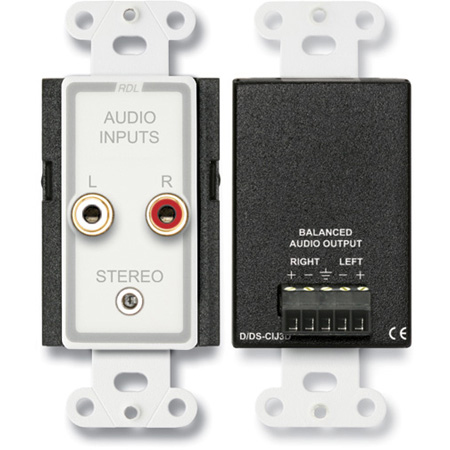

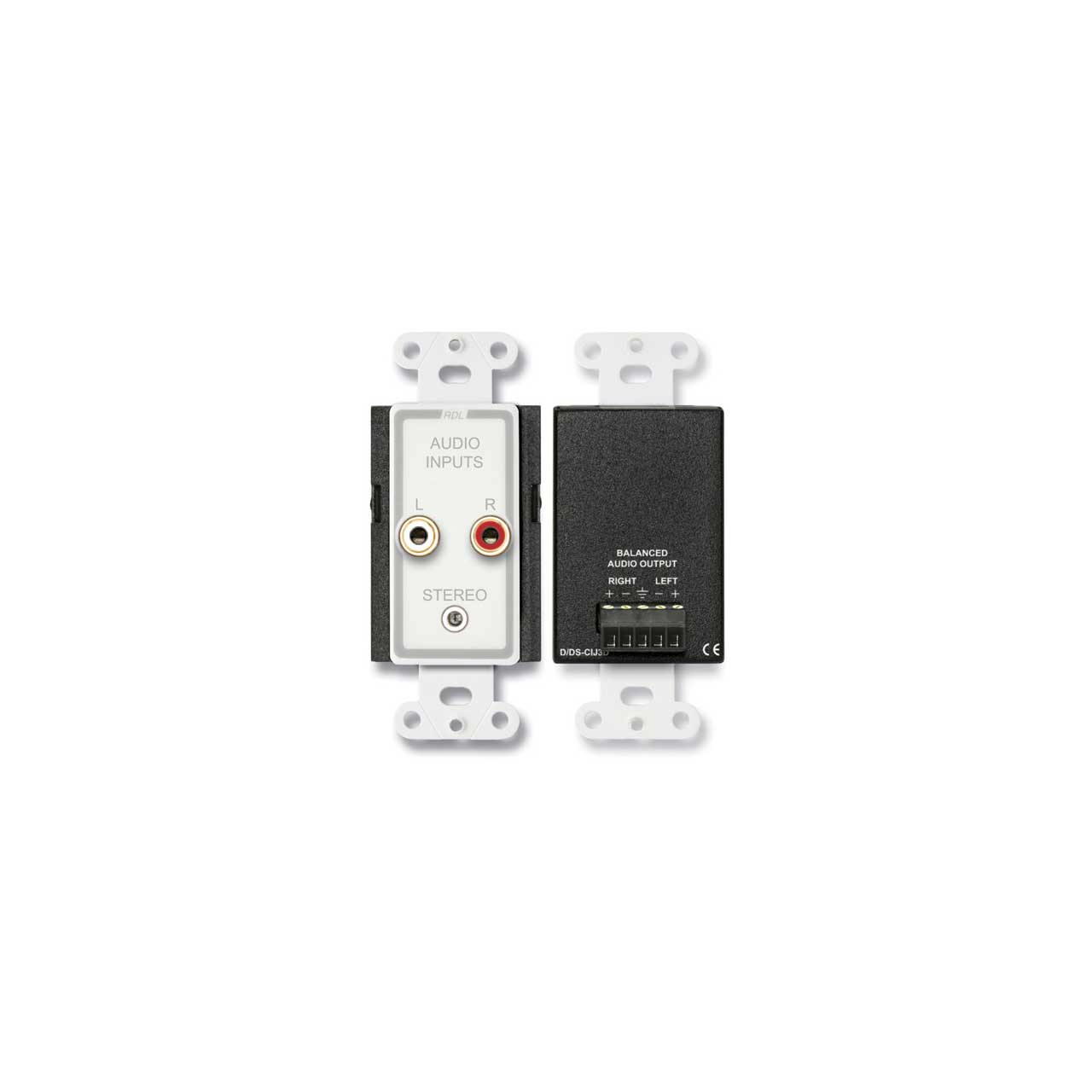

    The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kO or higher input impedance line-level module or equipment inputs.


    • Features

      • Stereo Inputs to Stereo Outputs
      • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
      • Unbalanced to Balanced Conversion Without Gain
      • Transformer Isolation for Unbalanced Line Inputs
      • Hum Cancellation on Unbalanced Line Inputs
      • Line-Level Output to Feed 10 kO Equipment Input
      • Output Connections on Detachable Terminal Block
      • Available in Stainless Steel (DS-CIJ3D)
      • Available in RDL White/Gray (D-CIJ3D)

    • Specifications

      • Input connectors (3): Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
      • Frequency response (line level): 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
      • THD: <0.2% (1 kHz)
      • Output connector: Detachable terminal block
      • Dimensions: Height: 4.13 in. 10.49 cm
      • Width: 1.7 in. 4.32 cm
      • Depth: 2.15 in. 5.47 cm
      • Mounting Box Minimum Dimensions: Width: 1.80 in. 4.57 cm
      • Depth: 1.75 in. 4.45 cm
      • Crosstalk: <-80 dB (1 kHz); <-60 dB (10 Hz to 20 kHz)
      • Ambient Operating Environment: 0° C to 55° C
