RDL D-CVMB2 Composite Video and Video Monitor Connection Plate
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

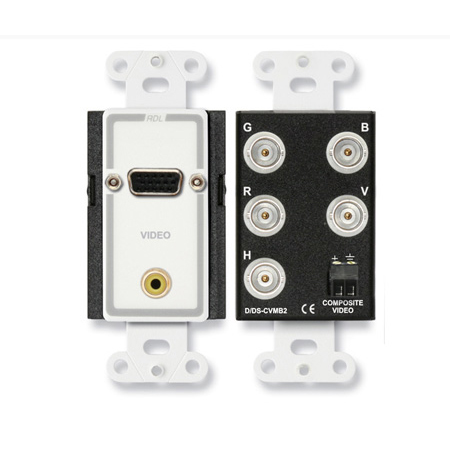

    RDL D-CVMB2 Composite Video and Video Monitor Connection Plate

    Manufacturer: Radio Design Labs

    Item #: RDL-D-CVMB2   •   MFG #: D-CVMB2


    List Price:$85.72
    Our Price:$62.22

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.

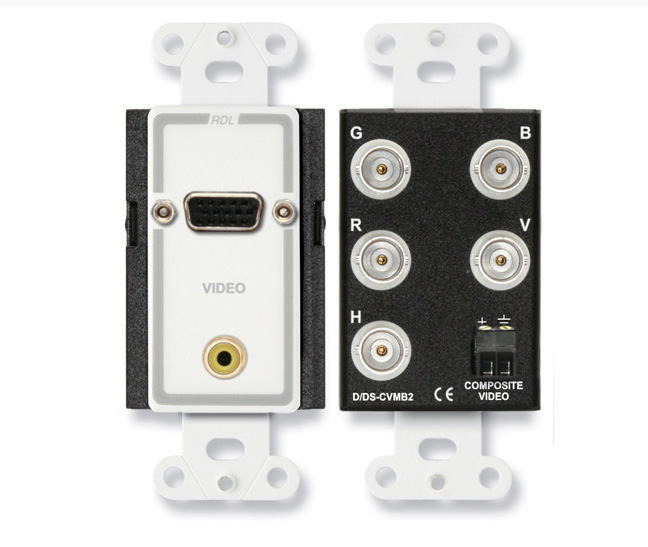

      The D/S-CVMB2 is the ideal choice in installations requiring a wall mounted video input or output plate with standard HD15 monitor and composite RCA jack connections. The panel is typically installed as an input plate, but may equally be used as an output jack panel.The front panel features a standard video monitor connector. Video components, video sync and their respective ground returns are separated to feed five BNC jacks on the rear panel. The BNC jacks are isolated from the module chassis ground so the appropriate signal grounds pass through without adding a video ground loop at the panel.The front panel features an RCA jack, intended for a composite video source. The video signal is fed to a rear panel detachable terminal block.The D/S-CVMB2 is the ideal choice to connect computer or composite video sources to a video monitor or projector in meeting rooms or classrooms.

      • Features

        • Composite Video and Video Monitor Input Panel
        • Composite Video Input on RCA Jack
        • Composite Video Output on Detachable Terminal Block
        • Video Monitor Input on Standard Video 15 HD Female Connector
        • Rear Panel Video Outputs (R,G,B,H,V) on BNC Jacks
        • BNC Jacks are Isolated from Chassis Ground
        • Available in RDL White/Gray and Stainless Steel
      • Specifications

        • Composite Video Input connector: RCA jack
        • Video monitor Input connector: Female HD15
        • Composite video output connector: Detachable terminal block
        • Video monitor output connectors (5): BNC (R: Red; G: Green; B: Blue; H: Horizontal Sync; V: Vertical Sync
        • Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 1.4 in. 3.56 cm
        • Mounting Box Minimum Dimensions: Width: 1.80 in. 4.57 cm; Depth: 0.15 in. (0.38 cm) plus the depth of the installer provided BNC connectors
        • Package Type: Cardboard Box
        • Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.136 lbs.
