    D-PSP1A - Overview

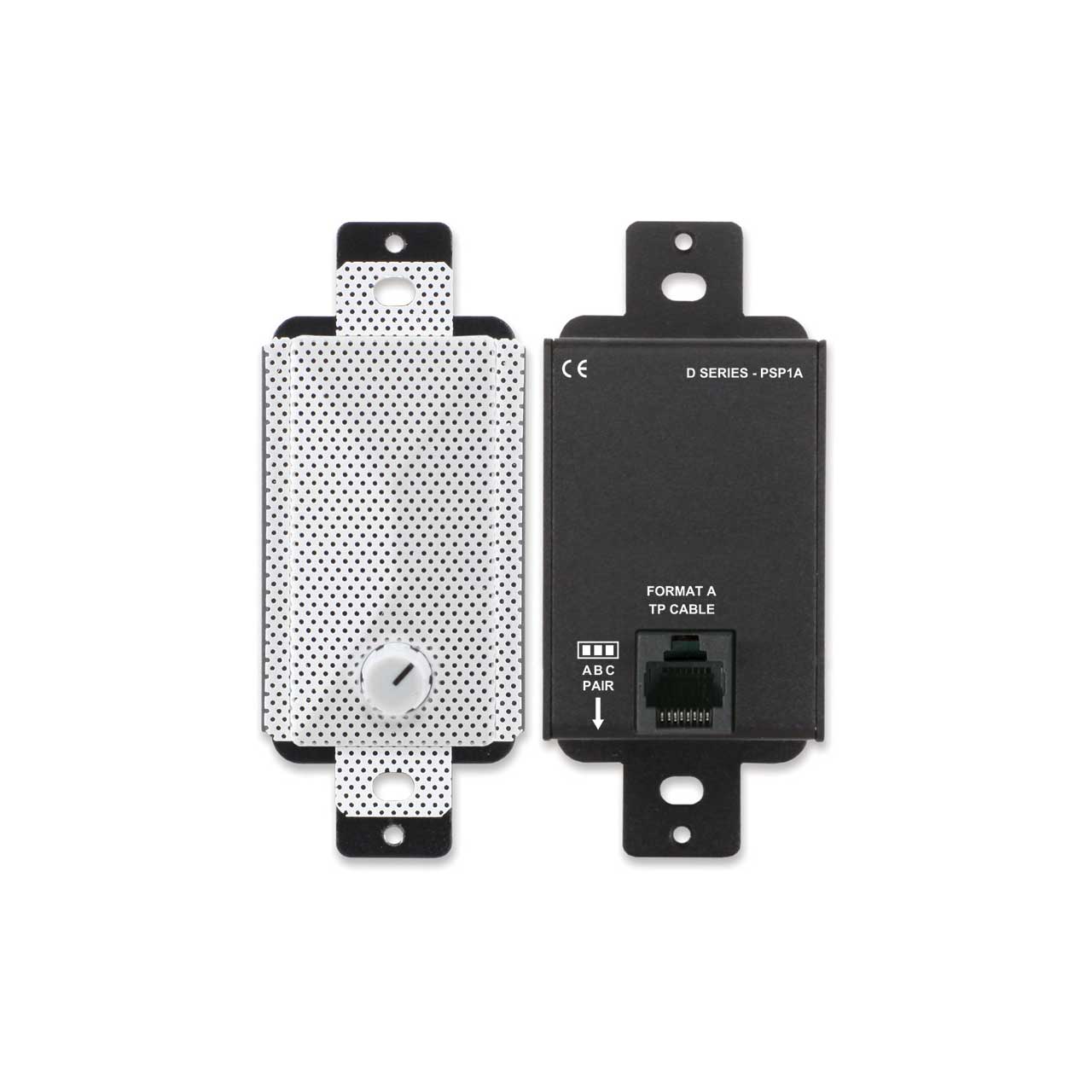

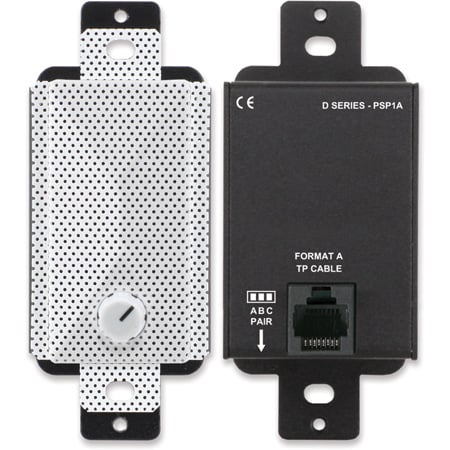

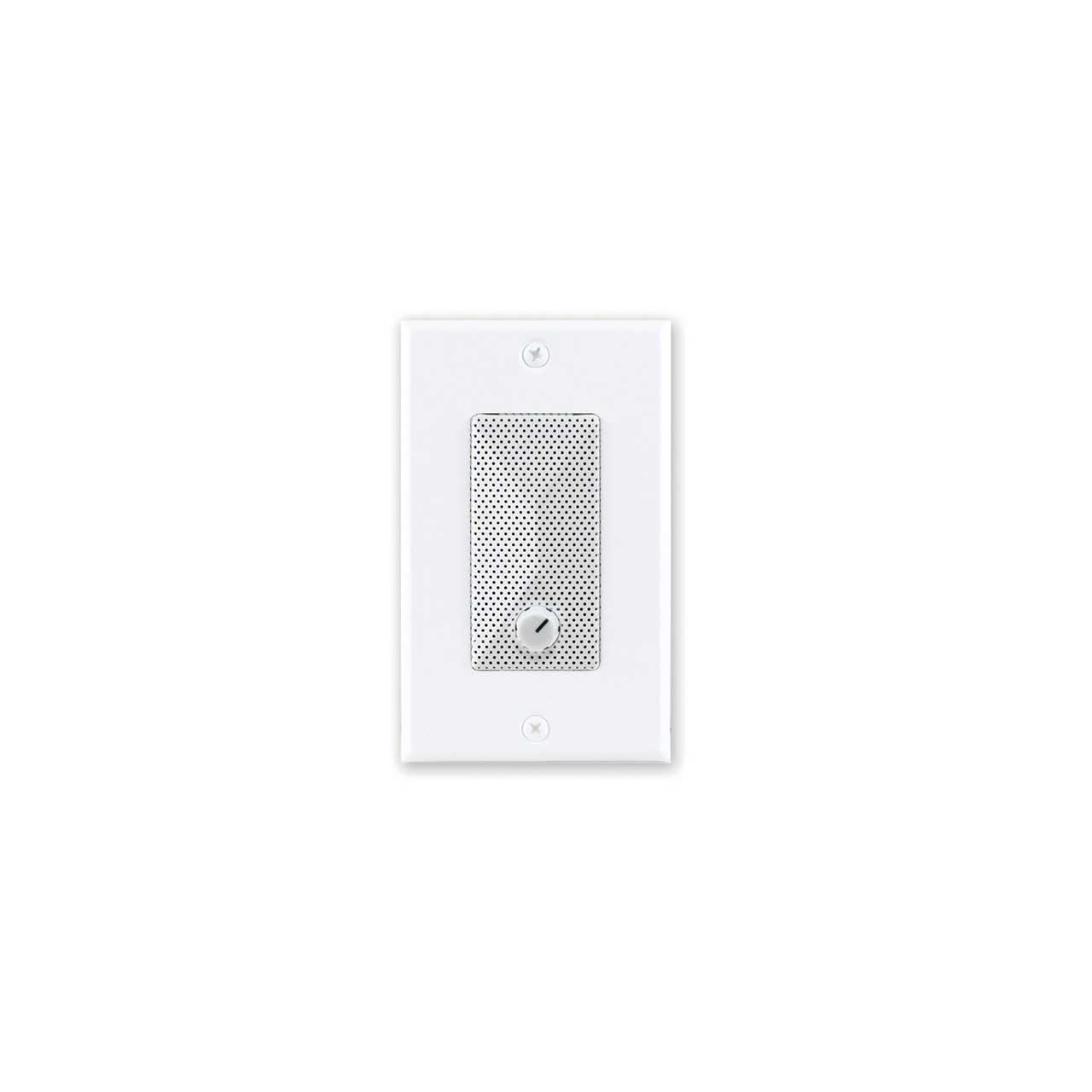

    The D SERIES-PSP1A is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1A includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.Models are available with grills in black (DB-PSP1A), white (D-PSP1A), gray (DG-PSP1A) or stainless steel (DS-PSP1A).

    • Features:

      • Exceptional Audio Quality for Ultra-Compact Size
      • 2 Watt RMS Audio Amplifier
      • Compressor/Limiter Prevents Clipping
      • Connects to Format-A Sender using Twisted-Pair Cable
      • Powered from RDL Twisted Pair Format-A Sender
      • Front-Panel Gain Adjustment
      • Acoustically Optimized Decora Enclosure
      • Fidelity Comparable to Larger Drivers
      • Hemispherical Dispersion Mounted In Wall or Flat Surface

    • Specifications:

      • Input: RDL Format-AInput Connection: RJ45
      • Format-A Signal Pair Used: Switch-selectable A, B, or C (Rear-panel)
      • Gain Adjustment: Single-turn audio taper (Front-panel)
      • Maximum SPL: 81 dB
      • Frequency Range: 150 Hz to 20 kHz, nominal
      • CMRR: > 80 dB (50 Hz to 120 Hz)Power Requirement: 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referencedAmbient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedDimensions: Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.27 in. 5.77 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: .562 lbs.
      • WEEE weight: .423 lbs.
      • Tariff code: 8518.40.2000

    • GTIN:

      0813721019172
