RDL D-TPS3A Active Three-Pair Sender - Twisted Pair Format-A - XLR Mic & Stereo Phono In

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL D-TPS3A Active Three-Pair Sender - Twisted Pair Format-A - XLR Mic & Stereo Phono In

    Manufacturer: Radio Design Labs

    Item #: RDL-D-TPS3A   •   MFG #: D-TPS3A



    List Price:$216.39
    Our Price:$168.69

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Required Accessories

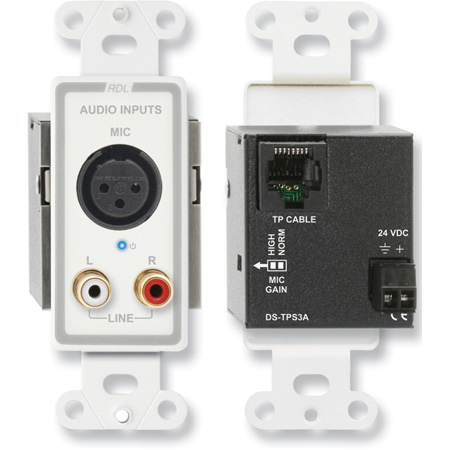

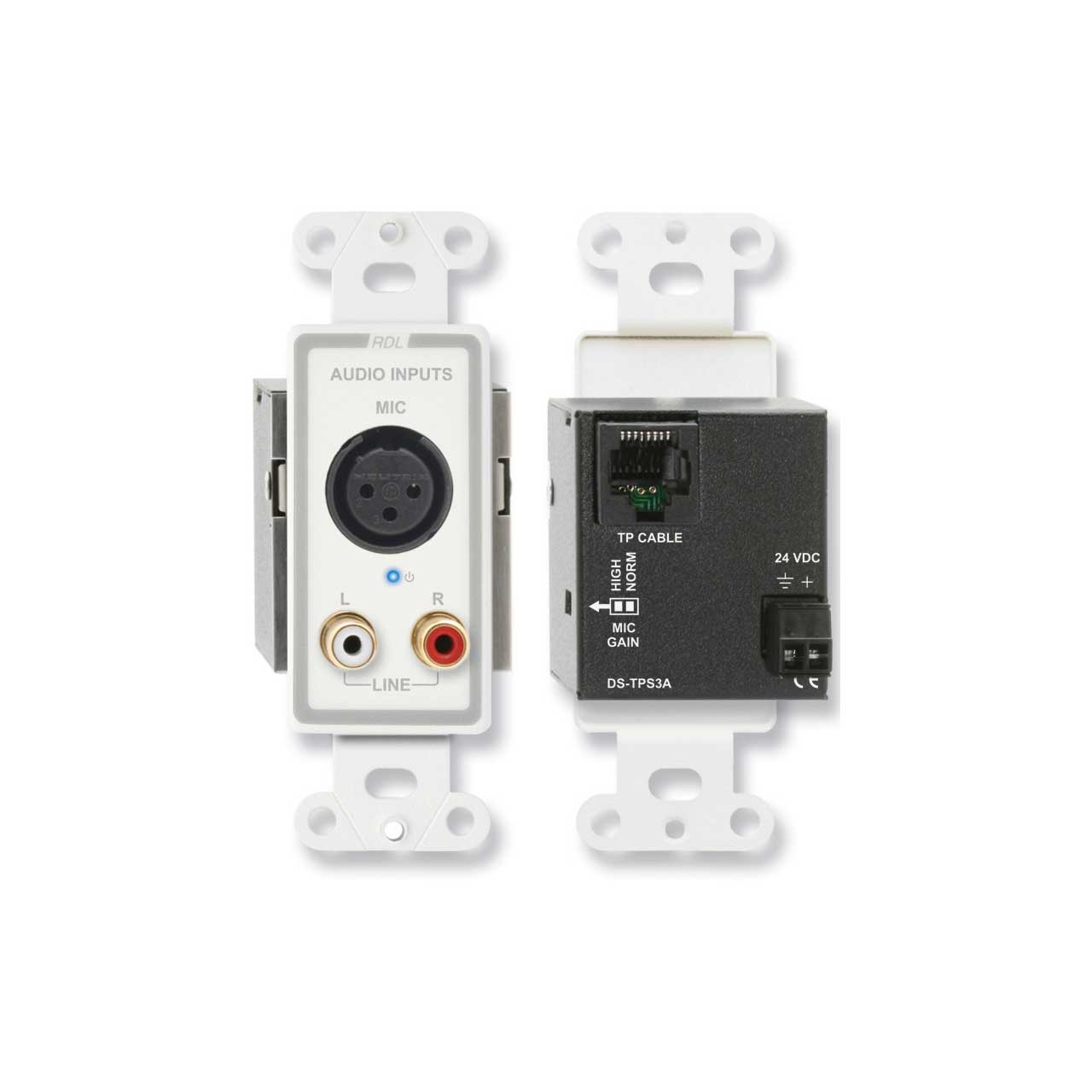

      The D SERIES-TPS3A modules are three-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPS3A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPS3A features a white front-panel laminate with gray lettering that matches RDL Decorac-style remote controls. The DB-TPS3A features a black front-panel laminate. The DS-TPS3A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

      APPLICATION: The D SERIES-TPS3A modules features an XLR microphone input and two RCA phono jack inputs, one for the left channel source and one for the right channel source. The unbalanced inputs are designed to receive standard -10 dBV consumer level signals. The microphone input provides 24 Vdc IEC phantom voltage and accepts both dynamic and condenser microphone signals. The input signals are amplified using studio-quality preamplifiers optimized for normal operating levels. A rear-panel GAIN switch is provided to set the amplification of the microphone preamplifier. This switch is normally set by the installer for NORM (normal) gain. If consistently low mic levels are expected, this switch may be set to the HIGH gain position. The pre-amplified microphone source is routed to pair A. The buffered left and right line-level inputs are routed to output cable pairs B and C.

      These modules drive all three FORMAT-A cable pairs, so they are not equipped to receive inputs from other sender modules. The D SERIES-TPS3A may not be connected together with any other sending modules.

      The D SERIES-TPS3A may be powered directly from a 24 Vdc power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The -TPS3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.

      RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.


      • Features

        • Balanced Microphone XLR Input with Phantom
        • Switch-Selectable Mic Gain on Rear Panel
        • Two Unbalanced -10 dBV Phono Jack Line Inputs
        • MIC Feeds Pair A; L Feeds Pair B; R Feeds Pair C
        • Remote Powering through Twisted Pair Cable
        • Fused Local Power Feeds all Connected Modules
        • Local Power Input on Terminal Block
        • Blue LED Indicates Module is Powered
        • Utilizes All Three Format-A Pairs
        • Studio-Quality Precision Active Balanced Circuitry

      • Specifications

        • Inputs (3): Mic: 1.2 kO Balanced with IEC 24 Vdc Phantom; Line (left and right): 10 kO Unbalanced
        • Input Connection: Mic: XLR; Line: RCA Phono
        • Input Level: Mic: -45 to -65 dBu Balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain); Line: -10 dBV Unbal.; +10 dBV Max
        • Format-A Signal Pairs Used: A (Mic); B (Unbal Line Left); C (Unbal Line Right)
        • Gain: Mic: 50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel; Line: 12 dB
        • Output: RDL TP Format-A
        • Output Connection: RJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
        • Frequency Response: Mic: 100 Hz to 30 kHz (± 1 dB); integral low-cut filter -10 dB @ 30 Hz; Line: 20 Hz to 50 kHz (± 0.5 dB)
        • THD+N: Mic: < 0.1% (80 Hz to 20 kHz); Line: < 0.05% (20 Hz to 50 kHz); <0.005% (1 kHz)
        • Noise below +4 dBu: Mic: < -80 dB (NORM Gain), < -70 dB (HIGH Gain); Line: < -95 dB
        • Crosstalk: Line to Line: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz); Line to Mic (HIGH Gain): < 65 dB (1 kHz), < 60 dB (20 Hz to 20 kHz); Line to Mic (NORM Gain): < 75 dB (1 kHz), < 70 dB (20 Hz to 20 kHz)
        • Headroom above +4 dBu: > 18 dB
        • CMRR: Mic: > 60 dB (HIGH Gain 50 Hz to 150 Hz), > 65 dB (NORM Gain 50 Hz to 150 Hz)
        • Indicator: Power In
        • Power Connections (2): Detachable terminal block; RJ45
        • Ambient Operating Environment: 0° C to 55° C
        • Power Requirement: 24 Vdc @ 65 mA plus connected loads
        • Dimensions: 1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
        • Mounting Box Minimum Depth: 2.4" (Models D-, DS-); 39 mm (Model EM-)
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.39 lbs.
        • WEEE weight: 0.24 lbs.
