RDL DB-A2 Line Output Assembly

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

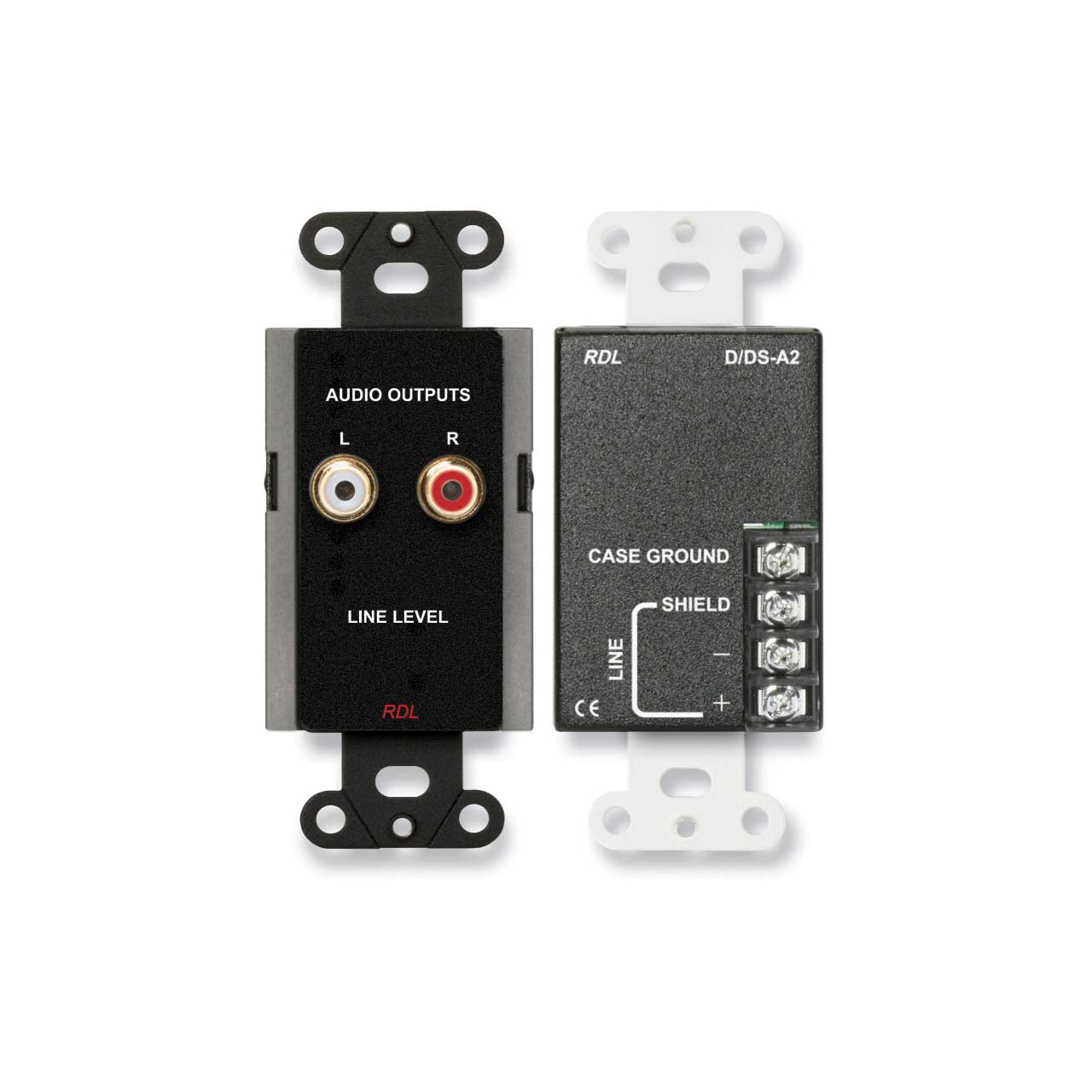

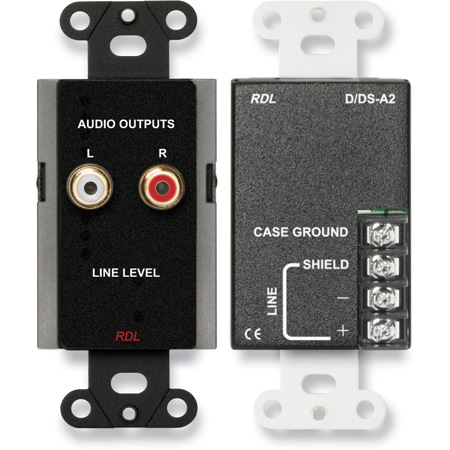

    RDL DB-A2 Line Output Assembly

    Manufacturer: Radio Design Labs

    Item #: RDL-DB-A2   •   MFG #: DB-A2



    List Price:$74.16
    Our Price:$58.59

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      The D SERIES-A2 is a passive audio output assembly that provides one or two unbalanced consumer level audio outputs from a balanced line-level audio source. It may be connected to the +4 dBu line level output of any RDL product, even if that output is simultaneously feeding other equipment. The D SERIES-A2 circuit design provides a high degree of audio isolation if a user accidentally feeds a consumer-level source into the D SERIES-A2. The attenuation of such reverse signals is sufficient for most installations. Active RDL modules are available for complete isolation if required. The D SERIES-A2 output jacks are transformer isolated from the balanced line input, and the input shield is separated from the case ground to reduce the possibility of induced hum. The D SERIES-A2 is not intended as an audio input panel.The D SERIES-A2 fits directly into back boxes, available from RDL, to fit cabinets or US or international walls (RDL WB-1U). It may also be mounted directly into cabinets or most standard US single gang electrical boxes.


      • Features

        • Wall Mounted Consumer Level Outputs
        • Single or Dual Outputs from Mono Source
        • Gold Plated Phono Jack Outputs
        • Transformer Isolation of the Line Outputs
        • Unbalanced Audio Outputs from a Balanced Line Input
        • High Attenuation of Reverse Signals

      • Specifications

        • Input Level: +4 dBu, nominalInput Connector: Full size barrier blockInput Impedance: 10 kΩ balanced bridging, monaural
        • Output Connectors (2): Phono jacks with gold contactsInput Connections (4): CASE GROUND, SHIELD, + , -
        • Frequency Response: 50 Hz to 20 kHz (±1 dB)
        • Attenuated Signal-Reverse Path: < -50 dB (at 150 Ω balanced source output, +4 dBu reference, -10 dBV signal injected into output jack)Power Requirement: PassiveDimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
        • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.46 lbs.
        • WEEE weight: 0.3 lbs.
        • Tariff code: 8536.69.4030
