    RDL DB-J3 Mic/Line Input Assembly

    Manufacturer: Radio Design Labs

    Item #: RDL-DB-J3   •   MFG #: DB-J3


    List Price:$66.73
    Our Price:$46.70

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.

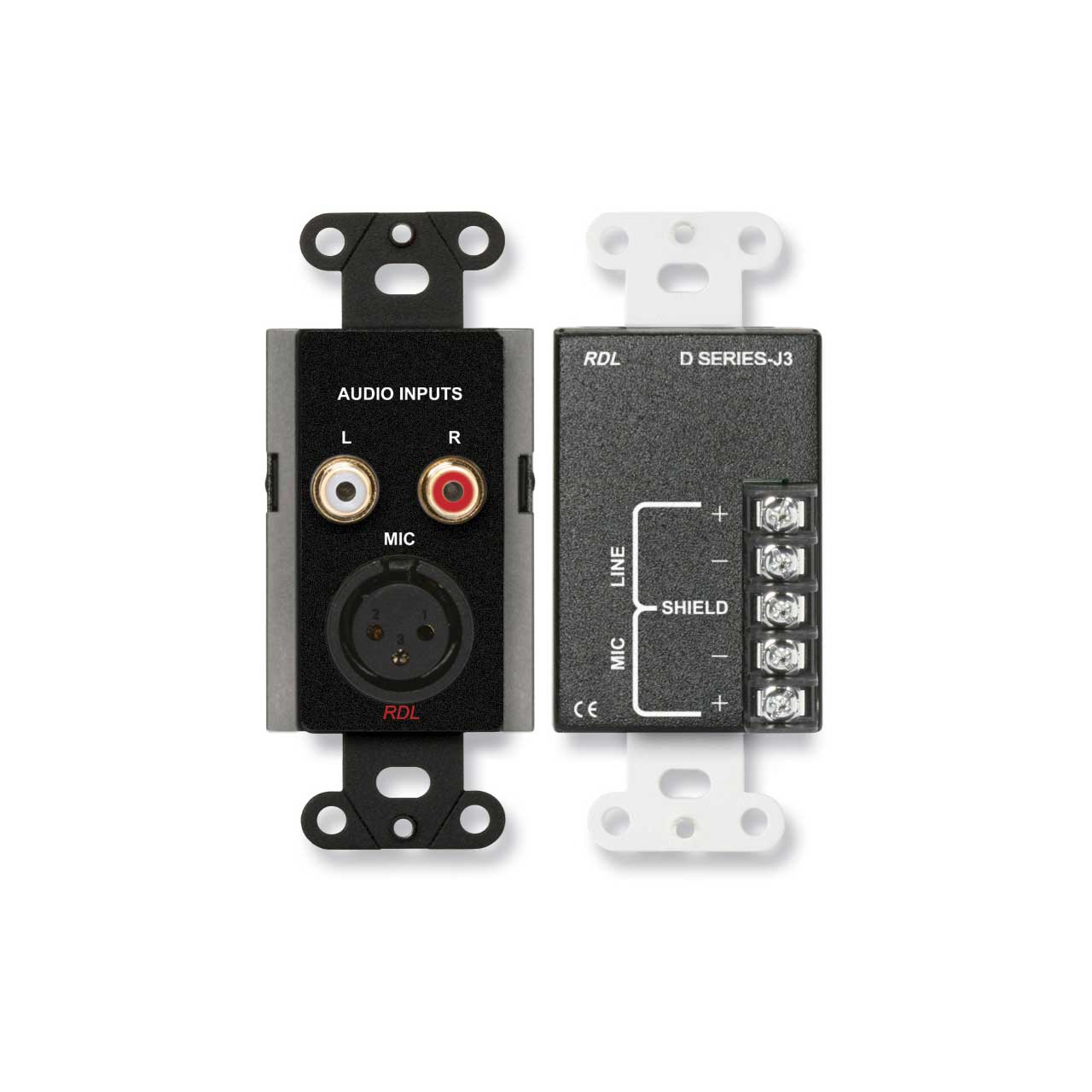

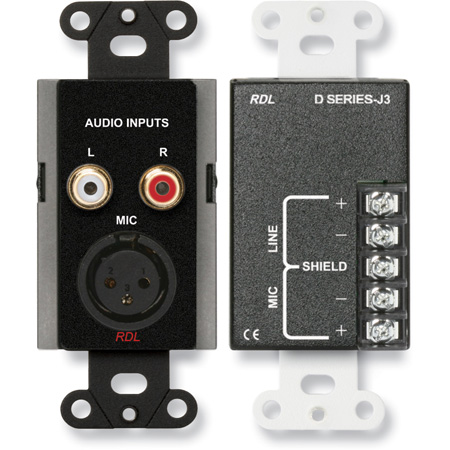

      The D SERIES-J3 is a complete audio input panel assembly. The front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear-panel barrier block. The phono jacks are intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3 is finished with a metal enclosure clearly labeled for easy installation.The D SERIES-J3 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

      • Features

        • Wall Mounted Audio Inputs
        • XLR Microphone Input with Gold Contacts
        • Gold Plated Phono Jack Line Inputs
        • Hum Cancellation on Unbalanced Line Inputs
        • Transformer Isolation for Unbalanced Line Inputs
        • Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
      • Specifications

        • Input Connectors: XLR female with gold contacts (1); Phono jacks with gold contacts (2)
        • Output Connector: Terminal block
        • Output Connections (5): Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
        • Frequency Response (line in): 30 Hz to 20 kHz (±1 dB)
        • Power Requirement: Passive
        • Dimensions:
        • Height: 4.13 in. 10.49 cm;
        • Width: 1.7 in. 4.32 cm;
        • Depth: 2.15 in. 5.47 cm
        • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.505 lbs.
        • WEEE weight: 0.36 lbs.
        • Tariff code: 8536.69.4030
