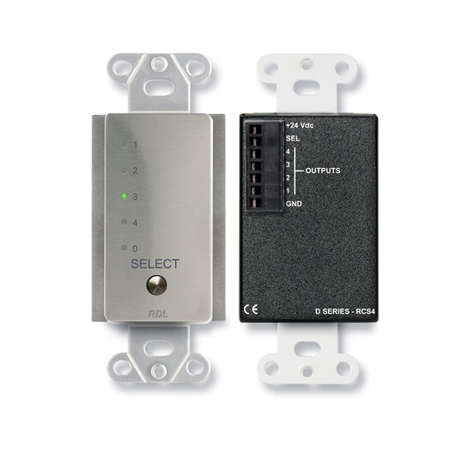

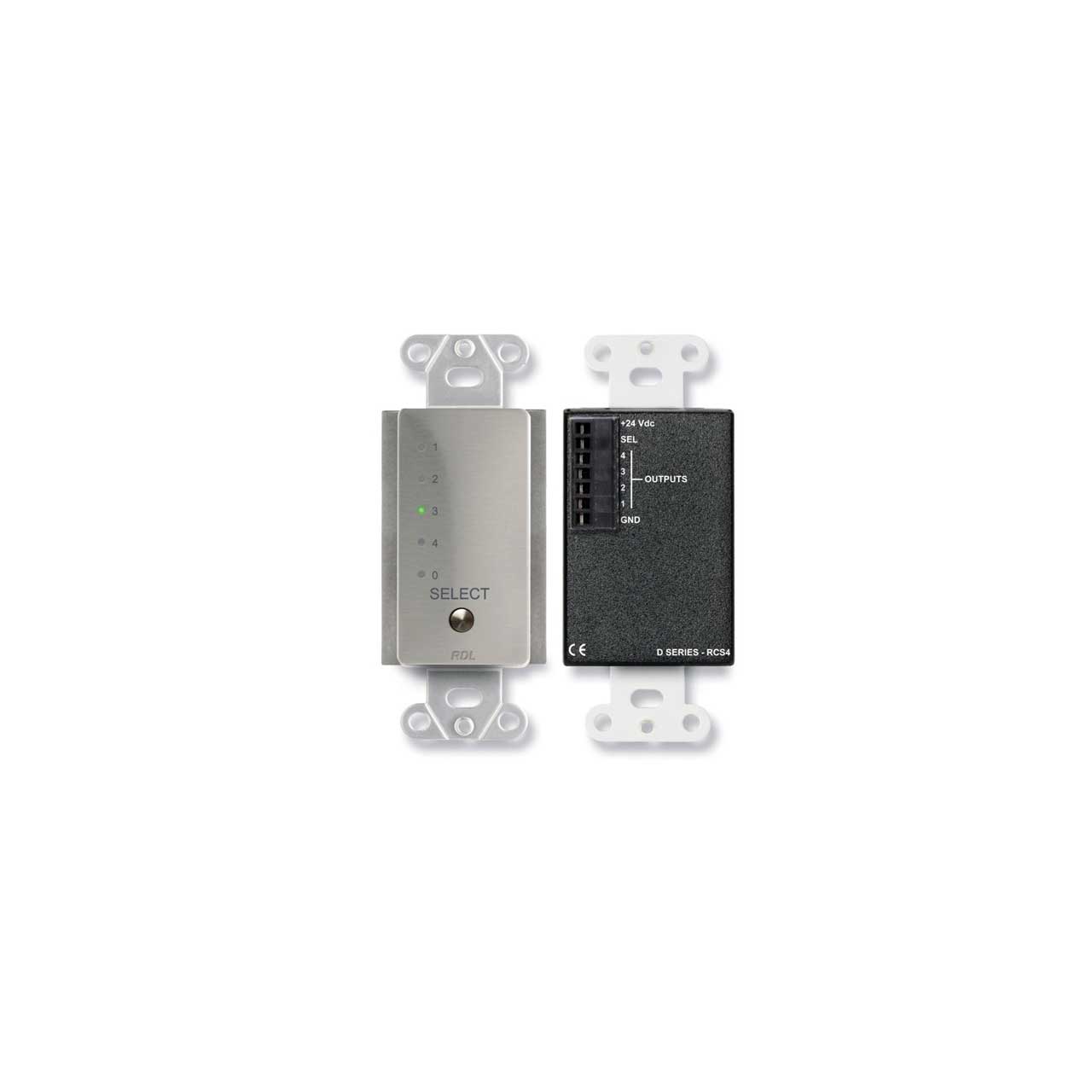

RDL DS-RCS4 Remote Channel Selector - 4 Channels - Controls RU-SX4A

ITEM #: RDL-DS-RCS4 MFG #: DS-RCS4

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$189.99

Our Price:

$142.50

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DS-RCS4 - Overview

    The DS-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.The DS-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The DS-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the DS-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.

    • Features:

      • Remote Control for RDL RU-SX4A Audio Selector
      • Remote Source Selection Panel
      • Visual Display of the Selected Source
      • Multiple Control / Indication Locations
      • Premium-Quality Remote Panel
      • Professional Aesthetic Appearance

    • Specifications:

      • LED Inputs: GroundingInput activates LED; direct connection from RDL selector module
      • Indicators (5): Green LEDs for each of 4 selected channels; red LED indicates no channel selectedOutputs: SEL, 15 Vdc @ 5 mA (pushbutton actuated)Ambient Operating Environment: 0° C to 55° C
      • Connections: Detachable terminal block;Power Requirement: GROUND-REFERENCED, 24 Vdc @ 25 mA
      • Mounting: Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U;
        decorative plate available separatelyPackage Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.385 lbs.
      • WEEE weight: 0.23 lbs.
      • Tariff code: 8517.62.0050

    • GTIN:

      0813721015730
