RDL DS-RLC10K Remote Level Control - 0 to 10 k - Stainless steel

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

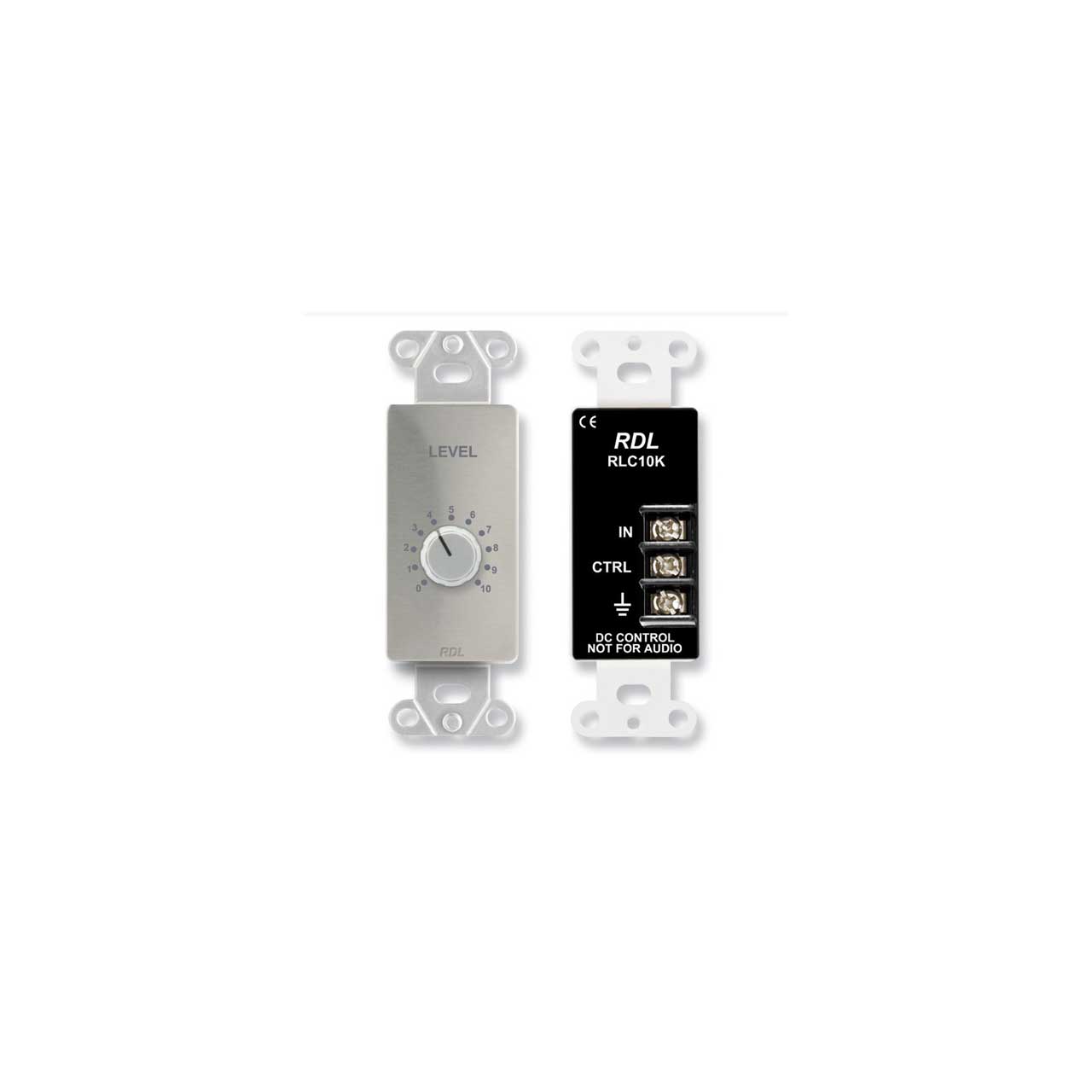

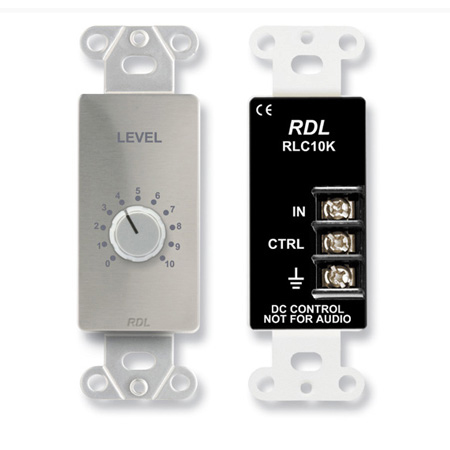

    RDL DS-RLC10K Remote Level Control - 0 to 10 k - Stainless steel

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-RLC10K   •   MFG #: DS-RLC10K



    List Price:$49.11
    Our Price:$37.96

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10 kΩ potentiometer for setting the control voltage.The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.Three conductors are required for connection between the RLC10K and an RDL VCA. A single shielded pair is normally used.All the RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.In installations where ULTRASTYLE™ wall controls are preferred, use the RLC-10R Rotary Level Control.


      • Features

        • Remote Level Control Panel
        • Rotary Control
        • Direct Connection to RDL® VCA Modules
        • Single Control Location
        • Premium-Quality Remote Panel
        • Professional Aesthetic Appearance

      • Specifications

        • Resistance: 0 to 10 kΩ, linear
        • Connections: Detachable terminal blockAmbient Operating Environment: -10° C to 55° C
        • Mounting: Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U; decorative plate available separatelyPackage Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.465 lbs.
        • WEEE weight: 0.31 lbs.
        • Tariff code: 8517.62.0050
