RDL DS-RLC3 Remote Level Control - Preset levels
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

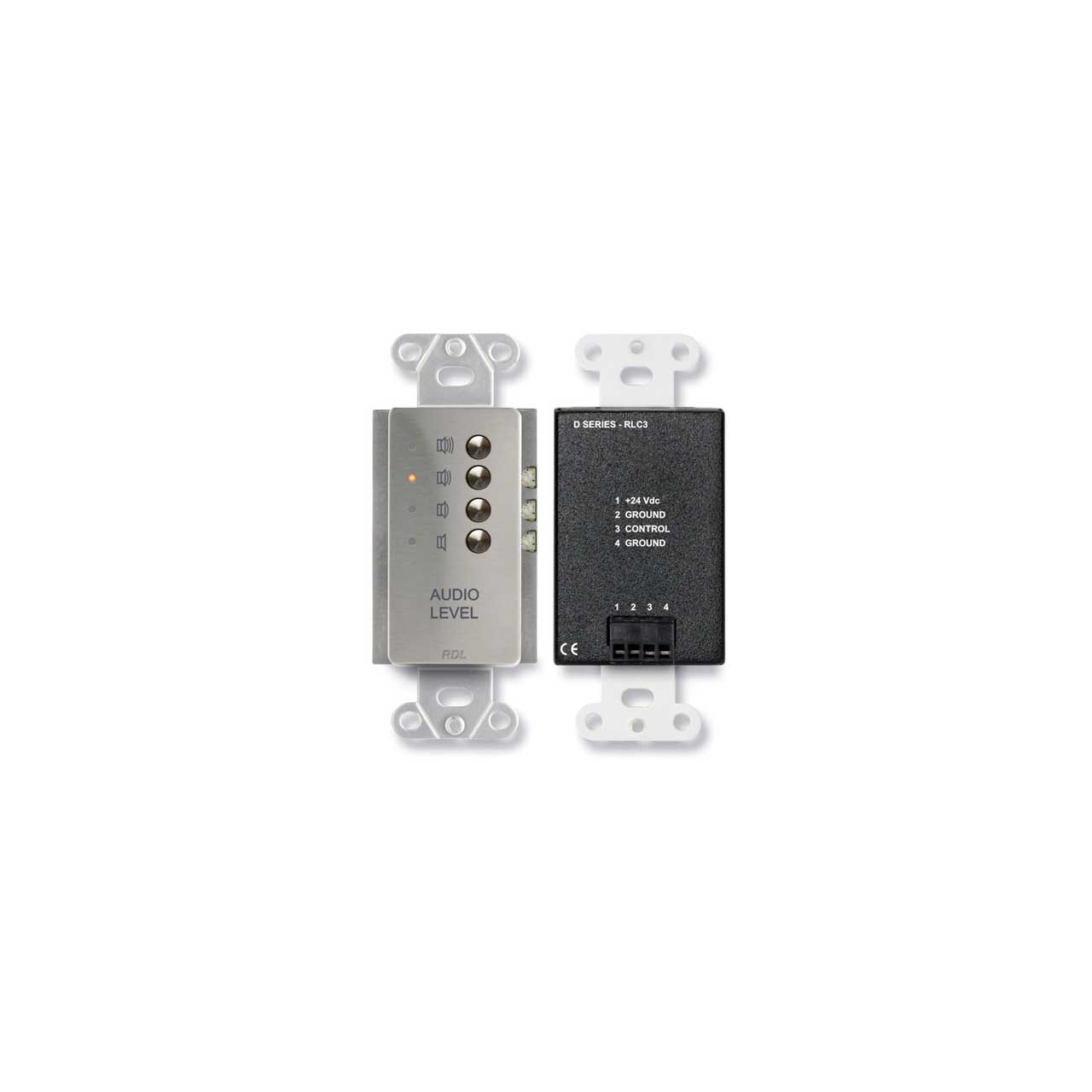

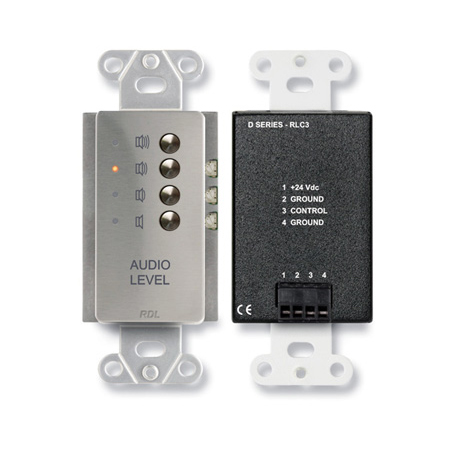

    RDL DS-RLC3 Remote Level Control - Preset levels

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-RLC3   •   MFG #: DS-RLC3


    List Price:$187.05
    Our Price:$127.60

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



      Required Accessories

      The DS-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10 kΩ resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The DS-RLC3 has four momentary pushbuttons, each corresponding to one of four levels selected.In a typical installation, the DS-RLC3 is wired to an RDL VCA. The DS-RLC3 runs from the same power supply as the VCA. When power is applied, the DS-RLC3 defaults to the NORM level. One higher level, HIGH, and two lower levels, LOW and MIN, are then available for selection. When the DS-RLC3 is set to the HIGH position, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each adjustable by the installer using trimpots on each side of the DS-RLC3´s body. Once installed, the adjustments are concealed from the user.

      • Features

        • Remote Selection of Preset Audio Levels
        • Pushbutton Level Selection
        • 4 Selectable System Levels, or 3 Levels Plus Off
        • LED Indication (Green)
        • Premium-Quality Remote Panel
        • Professional Aesthetic Appearance
      • Specifications

        • Interface:Direct connection with RDL modules using 0 to 10 Vdc, 10 kΩ resistive control (see ST-VCA3, RU-VCA2)
        • Output: Selectable resistance (CTRL Terminal ) to ground in 4 steps: ~High: 10 kOhm, 0 dB
        • Norm: Adjustable, -3 dB to -30 dB
        • Low: Adjustable, -5 dB to -40 dB
        • Min: Adjustable, -10 dB to Off
        • Connections: Detachable terminal blockAmbient Operating Environment: 0° C to 50° CPower Requirement: Ground-referenced, 24 Vdc @ 30 mA
        • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately.Dimensions:
        • eight: 4.1 in. (10.4 cm), Depth: 1.6 in. (4.10 cm) , Width: 1.3 in. (3.30 cm)
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.37 lbs.
        • WEEE weight: 0.22 lbs.
        • Tariff code: 8517.62.0050
