RDL RU-SM16D 4 Channel Audio Meter

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL RU-SM16D 4 Channel Audio Meter

    Manufacturer: Radio Design Labs

    Item #: RDL-RU-SM16D   •   MFG #: RU-SM16D



    List Price:$603.28
    Our Price:$410.29

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!

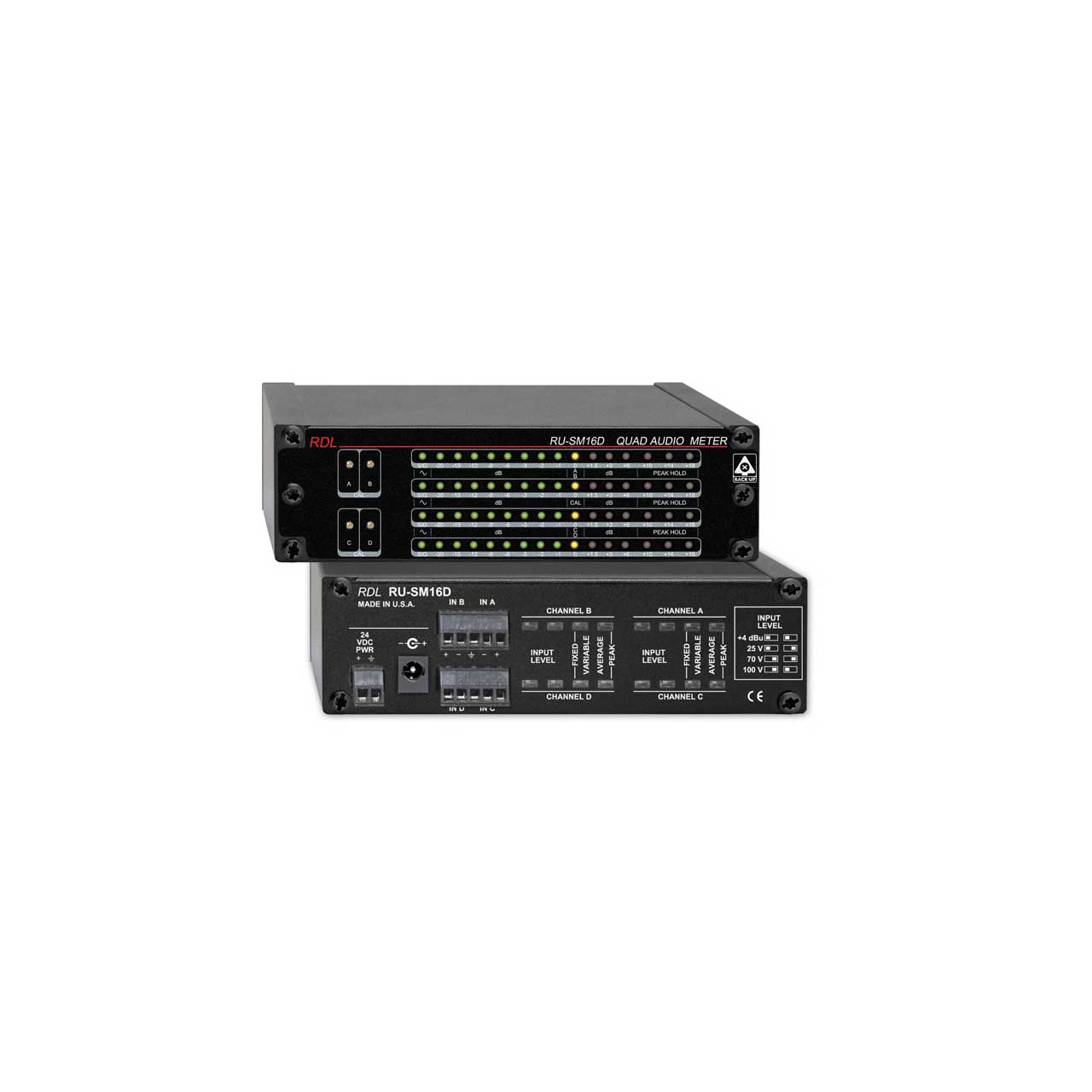

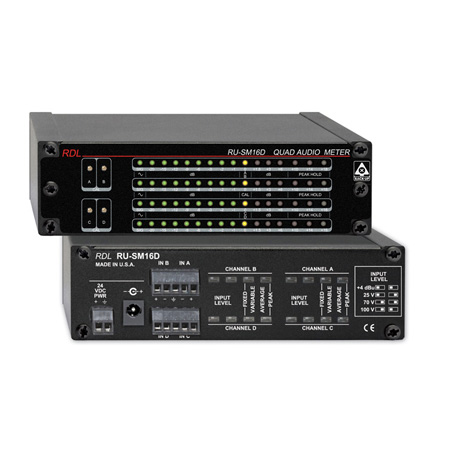

      The RU-SM16D is the ideal choice in most applications where the metering of multiple audio levels is to be designed into a system or added to existing equipment. The RU-SM16D has four separate inputs. Each input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines (25 V, 70 V or 100 V). All connections are made using detachable terminal blocks.A rear-panel switch selects variable or fixed calibration for 25V, 70V, 100V and +4 dBu sources. In the "variable" position, front-panel multi-turn trimmers adjust the calibrated meter levels.Rear-panel switches allow the installer to set each meter individually for either peak or average audio level display. In monaural installations, it may be advantageous to feed the mono source to two meters, setting one for peak and the other for average. In either mode the upper three LEDs (+10, +14, +18) remain in the PEAK HOLD mode. In stereo applications, each channel, left and right, can display both peak and average values. Each of the four meters in the RU-SM16D may be operated separately to monitor four different sources.The RU-SM16D uses bright LEDs for good visibility. Each input has a label area for identification of the source or function being metered.


      • Features

        • Precision Audio Level Metering
        • Digital 16 LED String Display Indication
        • Four Mono Meters or Dual Stereo Metering
        • Line-Level, Speaker-Level or 25/70/100 V Audio Input
        • Selectable Fixed or Variable Calibration
        • Individual Channel Calibration Controls
        • Selectable Peak or Average Metering
        • Peak-Hold Display for +10, +14, +18 dB

      • Specifications

        • Inputs (4): LineLevel or Amplified speaker levelInput Impedance: > 40 kΩ balanced or unbalanced
        • 0 dB Calibration: Fixed or Variable (switch-selectable)
        • FixedInput Level: +4 dBu (+4 switch settings, for 0 dB reading)
          25 V* (25 V switch settings, for 0 dB reading)
          70 V* (70 V switch settings, for 0 dB reading)
          100 V* (100 V switch settings, for 0 dB reading)
          *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output
        • VariableInputLevel Range: -24 dBu to +12 dBu (+4 switch settings, for 0 dB reading)
          2 V to 90 V* (25 V switch settings, for 0 dB reading)
          4 V to 90 V* (70 V switch settings, for 0 dB reading)
          5 V to 100 V* (100 V switch settings, for 0 dB reading)
          *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output
        • Metering Freq. Response: 20 Hz to 20 kHz
        • Indicators: 16 LEDs per channel: SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18
          (+10, +14, +18 are PEAK HOLD indicators only)
        • Metering Response: Each channel individually selectable PEAK or AVG (switch-selectable)

        •   Rise Time (10% to 90%):
            Rise Time (0% to 100%):
            Fall Time (90% to 10%):
            Fall Time (100% to 0%):

        • Peak Mode Average Mode
        • 50 us          130 ms
          60 us          300 ms (VU Characteristic)
          65 ms         185 ms
          100 ms       300 ms (VU Characteristic)

        • Ambient Operating Environment: 0° C to 55° C
        • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 450 mA
        • Package Type: Cardboard Box
        • Package Dimensions: 6 x 6 x 2.625 in.
        • Shipping Weight: 1.325 lbs.
        • WEEE weight: 1.09 lbs.
