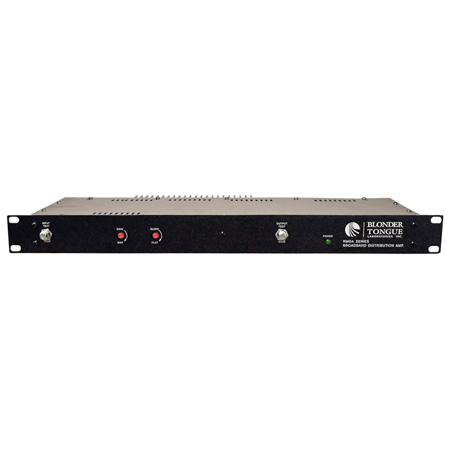

The RMDA Series are professional quality, broadband, rackmounted hybrid distribution amplifiers. The RMDA's are idealas a head end launch amplifier or distribution amplifier forMATV, SMATV or CATV applications requiring rack mounting.A variety of models are available with operational gains of15, 30, 43 or 50 dB and frequency ranges from 47, 550,750, 860 or 1000 MHz. Refer to the RMDA specifications for available gain and bandwidth combinations.
The RMDA Series amplifiers have built-in variable gain and slope controls. The 5500S-XX models use a single push-pull hybrid module providing excellent performance and economy for head end applications. The 5500-XX employ dual push-pull hybrid modules and the 5500P-XX have a push-pull hybrid followed by a power doubling hybrid.The dual hybrid models will have better CNR performance,compared to single hybrid models in applications with low input levels coupled with reduced gain settings. Test ports for both the input and output are provided for monitoring signal levels without interrupting service. The RMDA Series products are housed in a single height, 1.75" high, rackmountable, aluminum chassis that provides exceptional heat dissipation.
