RME Digiface USB Digital Audio Interface with ADAT/SPDIF

ITEM #: RME-DIGIFACE-USB MFG #: DIGIFACE USB

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$799.00

Our Price:

$629.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DIGIFACE USB - Overview

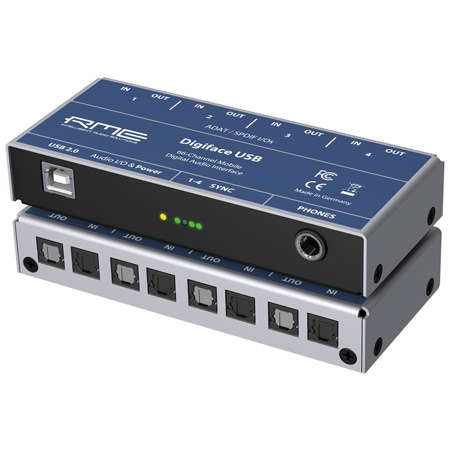

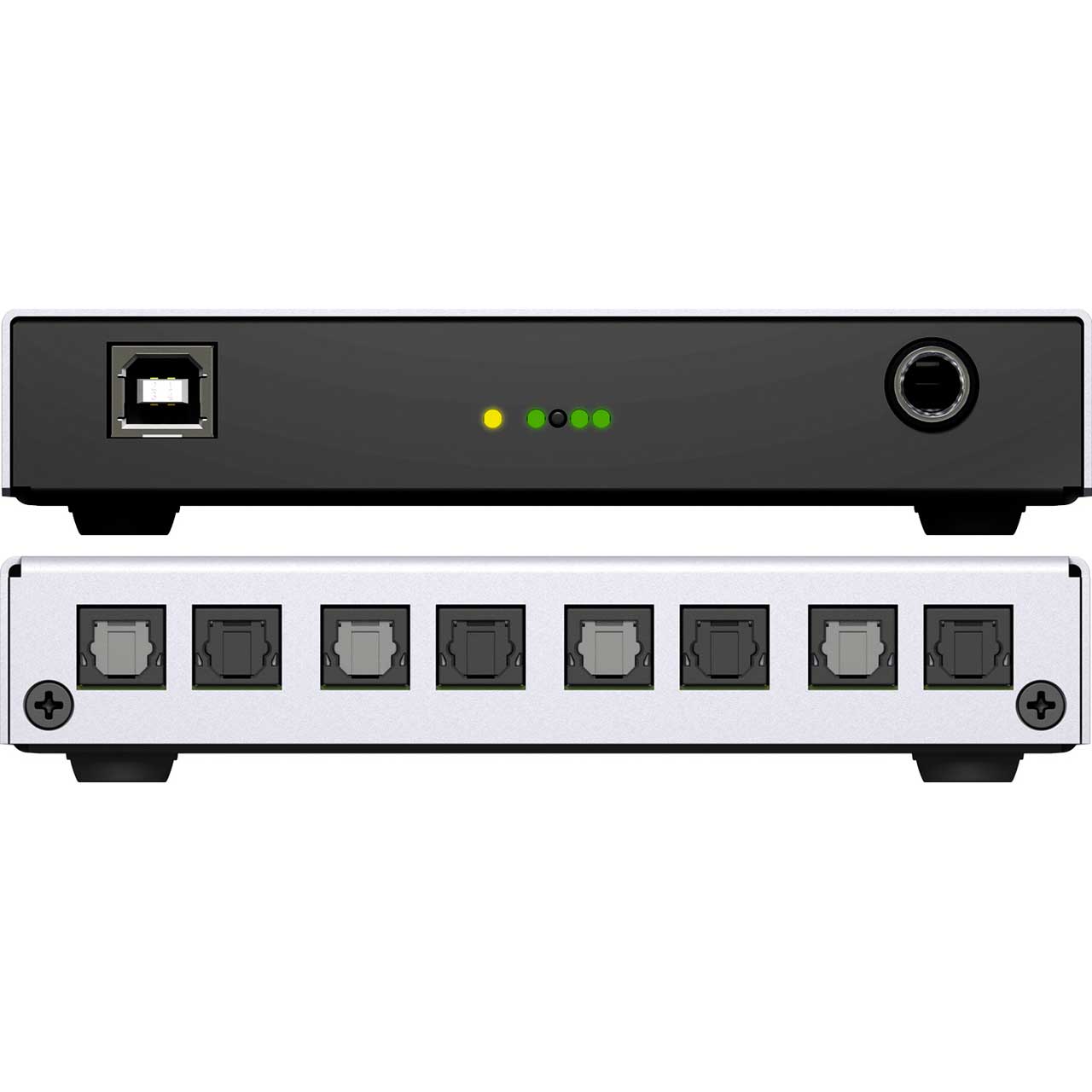

    The Digiface USB is an extremely compact & portable digital audio interface with 4 optical ADAT / SPDIF I/Os, and an analog high-quality line/phones output via 6.3 mm TRS jack. Continuing the legacy of RME`s famous HDSP Digiface, a triple ADAT I/O interface with phones and PCI interface, Digiface USB simplifies connection with USB 2, does not need an external power supply, and even adds another optical I/O, resulting in 32 channels input and output each when using ADAT optical.

    The analog output hosts channels 33/34, and can be used freely thanks to TotalMix FX, RME`s routing and monitoring solution that knows nearly no limits in routing and mixing (the Digiface USB does not include FX). Its small size, weight and bus-powered operation make the Digiface USB extremely versatile and useful. It could even serve as simple headphone amp for mobile use.

    Each single optical port can use either ADAT (up to 8 channels) or SPDIF (stereo). While the inputs adapt automatically to the received signal format, the outputs can be individually switched between ADAT and SPDIF operation. Supported are SMUX and SMUX4. Therefore at 192 kHz either 8 channels via 4 x SPDIF or ADAT are possible on both inputs and outputs.

    • Features:

      • Extremely compact & portable digital audio interface
      • 4 optical ADAT / SPDIF I/Os
      • analog high-quality line/phones output via 6.3 mm TRS jack
      • A triple ADAT I/O interface with phones and PCI interface
      • Does not need an external power supply
      • Analog output hosts channels 33/34
      • Each single optical port can use either ADAT (up to 8 channels) or SPDIF (stereo)

    • Specifications:

      • Inputs: 4 x ADAT/SPDIF
      • Outputs: 4 x ADAT/SPDIF - 1 x Phones TRS Stereo 6.3 mm
      • Clock modes: Internal, ADAT In, SPDIF In
      • Sample rates: 28 kHz up to 200 kHz
      • Jitter: < 1 ns, internal and all inputs
      • Jitter sensitivity: PLL operates even at 100 ns Jitter
      • TotalMix: 2244 channel mixer with 46-bit internal resolution
      • TotalMix: latency-free submixes and perfect ASIO Direct Monitoring
      • Interface: USB 2.0, bus-powered
      • Comes with DIGICheck, RME's ultimate measurement, analysis and test tool
      • Drivers: Windows 7/8/10 (Multi-Client operation of ASIO and WDM); Mac OS X (10.6 or up, Core Audio)

    • GTIN:

      4260123362287
