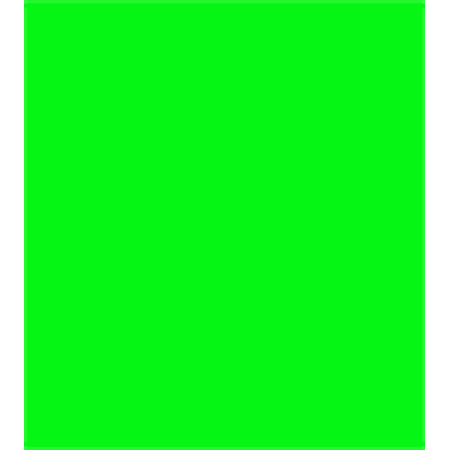

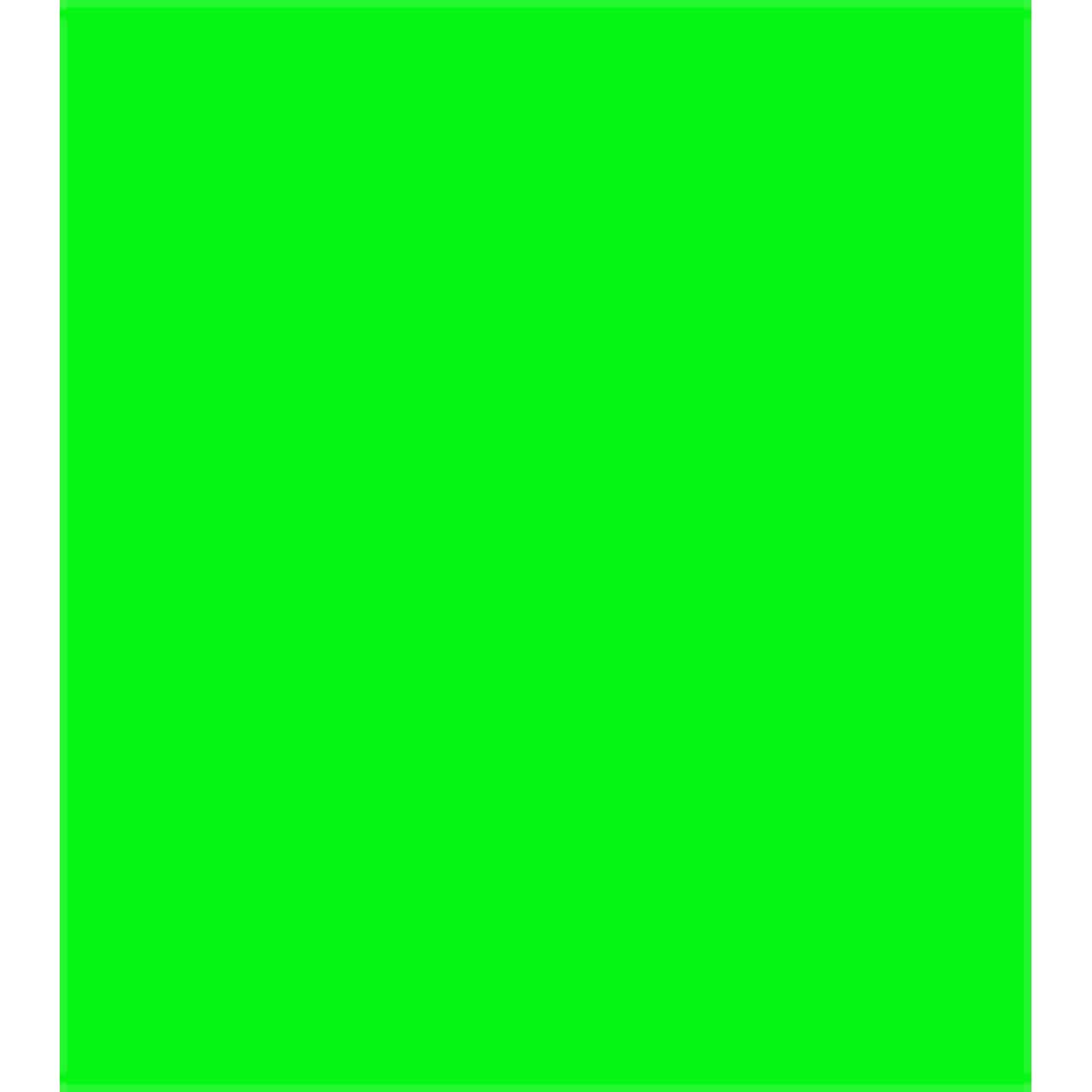

Rosco 20x24 Gel Sheet - Chroma Key Green

ITEM #: RX389 MFG #: 100 00389 2024

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$12.00

Our Price:

$10.65

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


100 00389 2024 - Overview

Suggests reflected light from dense foliage. A brilliant cyc lighting color which will work for chroma-keying effects in television production (Transmission = 40%).

Buy Single Sheets of Gel Without The Hassle! We've made it very easy to purchase Single Gel Sheets in many colors. Most dealers have a five sheet minimum of one color, not to mention if they carry it at all! We stock what you need - when you need it. Sheets are 20" x 24" high strength super gel designed to hold up under hot stage and studio lights.

Roscolux is comprised of two types of plastic. More than 65% of the line is made from co-extruded polycarbonate plastic. The remainder of the line is deep dyed polyester. Sheets: 20 x 24

How Color Filters Work
Filters create color by subtracting certain wavelengths of color. Thus, a red filter absorbs blue and green, allowing only the red wavelengths to pass. The process is subtractive, not additive, so the light source must emit a full spectrum.

The Rosco swatchbook provides detailed information on the spectral energy curve of each filter. The curve describes the wavelengths of color transmitted through each filter. For example, Roscolux 342 transmits approximately 40% of the violet and blue energy of the spectrum and 75% of the orange and red energy. It absorbs all energy in the yellow and green range.

Durability
The life of color filters depends on many variables: the color, the instrument and lamp used, the dimmer level a filter generally runs at, and the amount of time the light is running. For these reasons it is impossible to assign a "life" for each filter. However some basics knowledge and experience can help with estimates. Dark green and dark blue filters usually burn out the fastest because they absorb the most infrared energy. Absorbing the extra infrared energy causes the plastic to reach it's melting temperature faster. When darker filters are needed try choosing filters that transmit high amounts of the 700 nm range. You can find this information by looking at the Spectral Energy Distribution (S.E.D.) curve located in the swatchbook for each Roscolux color filter. Filters than transmit high levels at 700 nm may also transmit high levels in the infrared range above 700 nm.(See the Roscolux swatchbook for information on how to read S.E.D. curves.)
